Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Remove front apron.
> WM, 631519 REMOVING AND INSTALLING FRONT APRON
- Remove reinforcement plate.
- 2.1 Unscrew screws -1-
using > VAS 6928 - Socket wrench set, 39-piece
.
- 2.2 Remove reinforcement plate.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

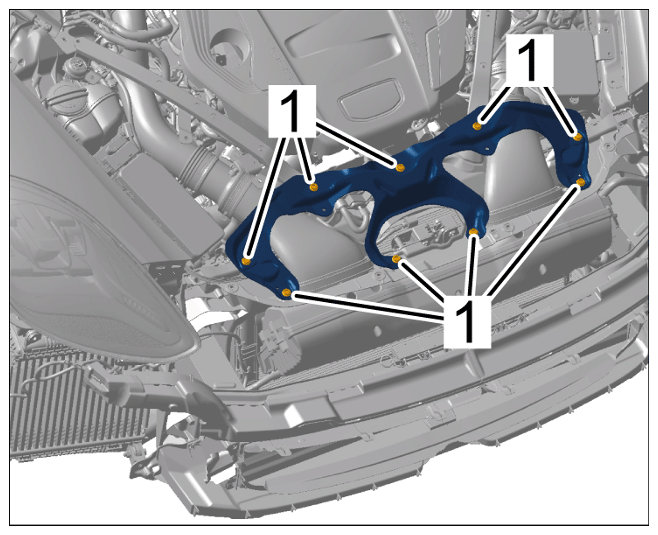

Removing a reinforcement plate
