Preliminary Work
WARNING: This page is about a different variant/trim than selected.
- Together with air suspension: Loosen compressor for levelling system and suspend it at the side.
> Removing and installing compressor for the levelling system
- Remove heat shield -1-
on final drive.
- 2.1 Unscrew screws -2-
and remove heat shield -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

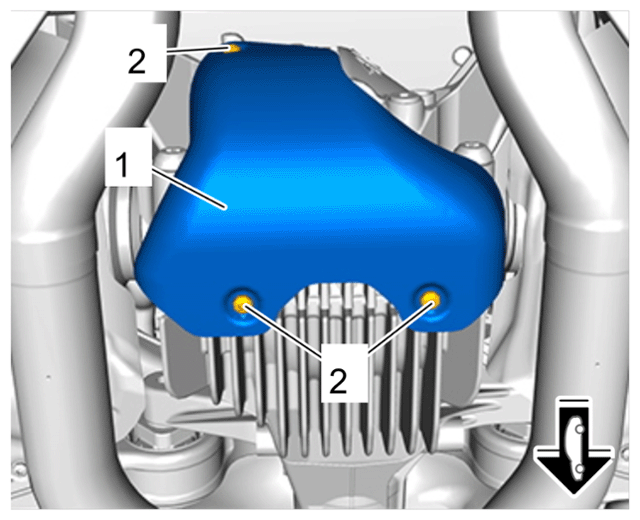

Heat shield on final drive, rear
