Changing Oil For All-Wheel Final Drive

WARNING: This page is about a different variant/trim than selected.
  1. Place a drip pan underneath.
  2. Protect front-axle carrier from emerging oil with a cloth.
    WARNING: Hot fluid
    • Danger of scalding

      → Let the fluid cool down.

      → Wear personal protective gear.

  3. Unscrew oil drain plug -2-  and drain oil.
  4. Screw in and tighten new  oil drain plug -2-  with new sealing ring > Tightening torque 10 Nm (7.5 ftlb.)

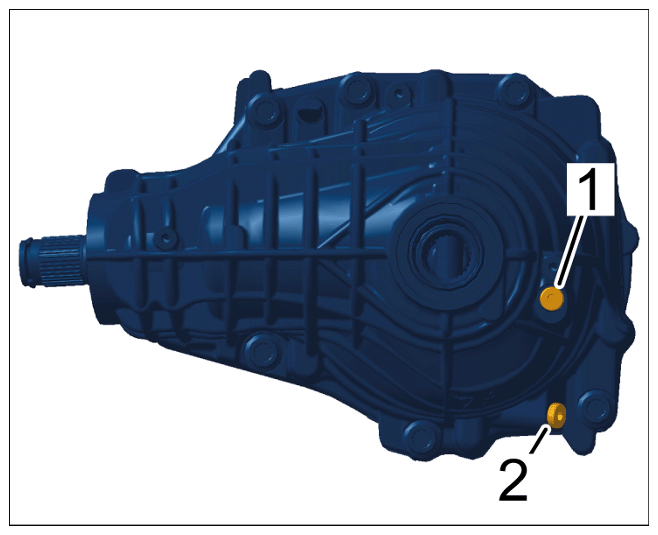

    G15888894Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing oil drain plug

  5. Fill in oil for all-wheel final drive.

    > 399035 CHECKING AND TOPPING UP OIL FOR ALL-WHEEL FINAL DRIVE
