Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Install heat shield -1- on final drive.
1. 1.1 Position heat shield -1- .
2. 1.2 Fit screws -2- and tighten to > Tightening torque 10 Nm (7.5 ftlb.) .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

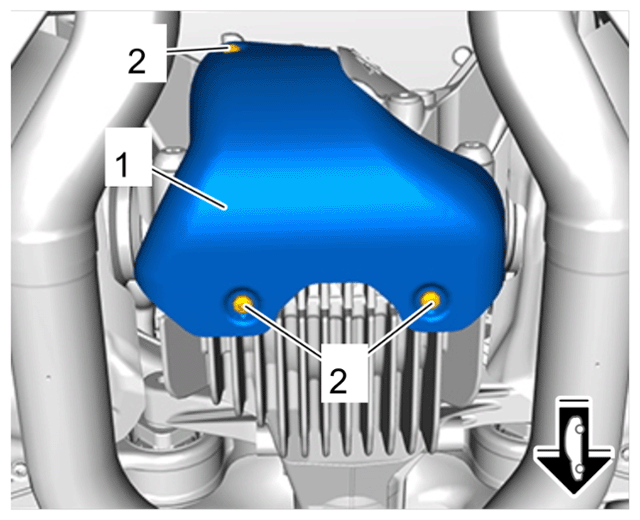

Heat shield on final drive, rear
Together with air suspension: Fit compressor for levelling system.
> Removing and installing compressor for the levelling system
