Checking And Topping Up Oil For All-Wheel Final Drive
WARNING: This page is about a different variant/trim than selected.
WARNING:
Hot fluid
- Danger of scalding
→ Let the fluid cool down.
→ Wear personal protective gear.
- Place a drip pan underneath.

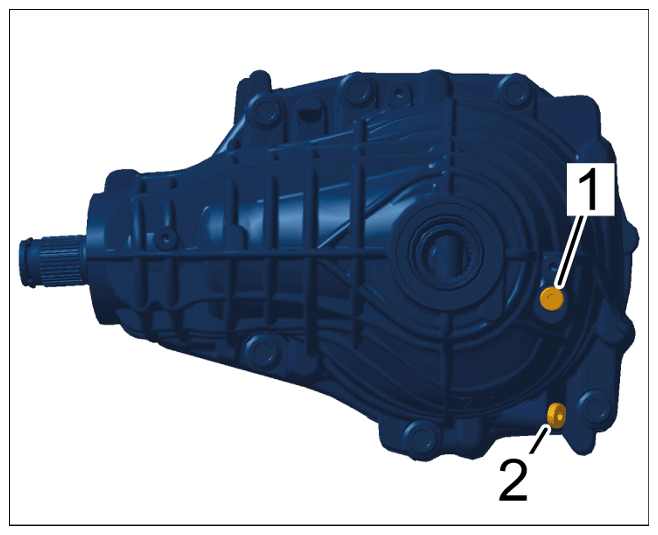

- Unscrew and remove oil filler screw -1-
.
Information
Use only oil approved by Porsche.
- Use > VAS 6563 - Manual metering pumps, Porsche set
to fill in oil up to the lower edge of the oil filler screw opening -1-
.
Information
The help of another person is required.
- With the inspection opening open, turn both front wheels evenly several times.1
)
1) The oil level depends on the differential position.
- Remove emerging oil.
- Screw in oil filler screw -1- with a new sealing ring and tighten it > Tightening torque 10 Nm (7.5 ftlb.)
Oil inspection plug
