Removing All-Wheel Final Drive

WARNING: This page is about a different variant/trim than selected.

WARNING: Danger of objects or loads falling down

Risk of squashing or crushing
→ Secure components to prevent them from falling down.

Fit impact puller.

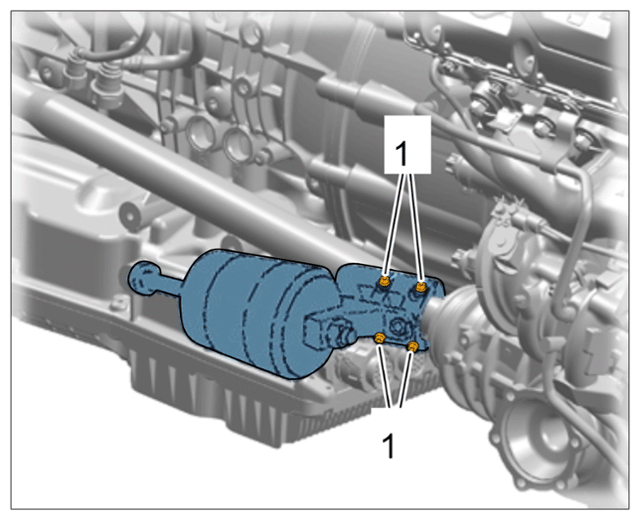

1. 1.1 > 9799 - Impact puller must be fitted at the groove in the connecting shaft using four screws -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fitting tool (similar to illustration)
Loosen connecting shaft.

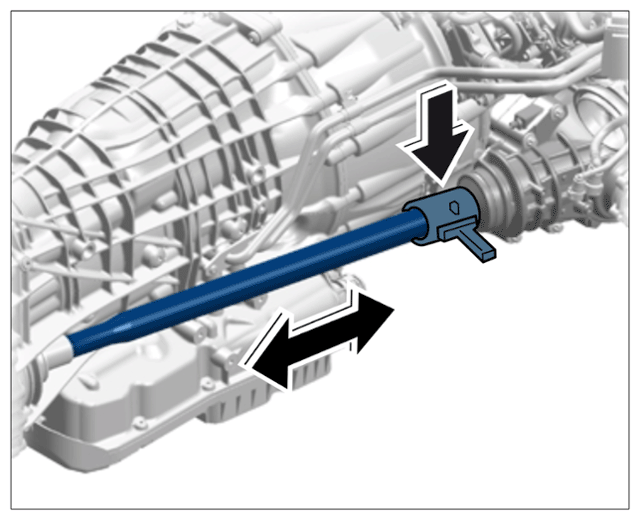

1. 2.1 Use > 9799 - impact puller to remove connecting shaft from all-wheel final drive -arrow- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing and fitting connecting shaft (similar to illustration)
Remove console.

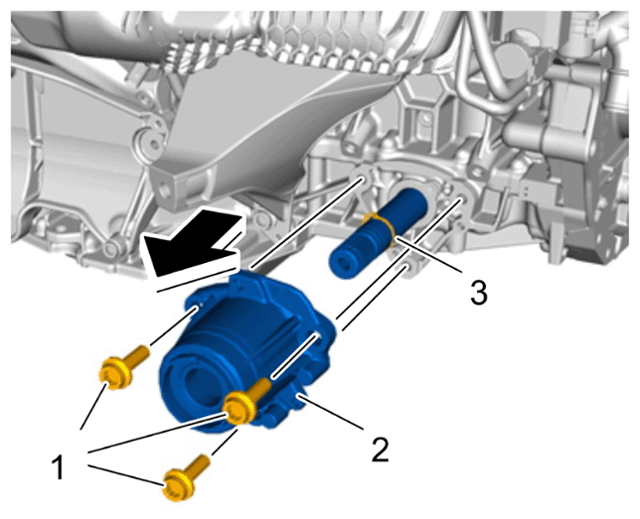

1. 3.1 Unscrew fastening screws -1- and remove console -2- .
2. 3.2 Remove circlip -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Final drive console

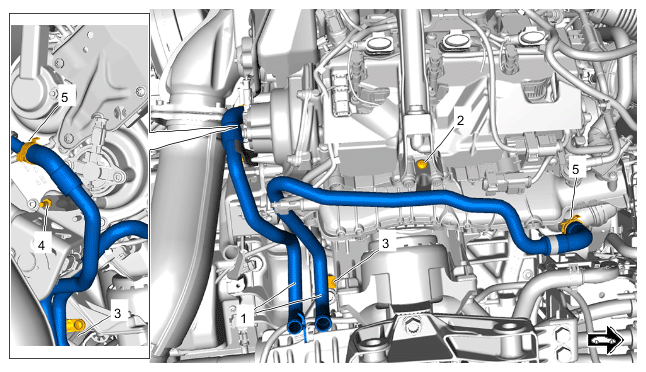

Remove coolant lines -1- .
1. 4.1 Unclip positive cable at three places.
2. 4.2 Unscrew screws -2 and 3- and nut -4- .
3. 4.3 Loosen clamps -5- .
4. 4.4 Remove coolant lines -1- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Coolant lines
Remove right engine mount -2- .

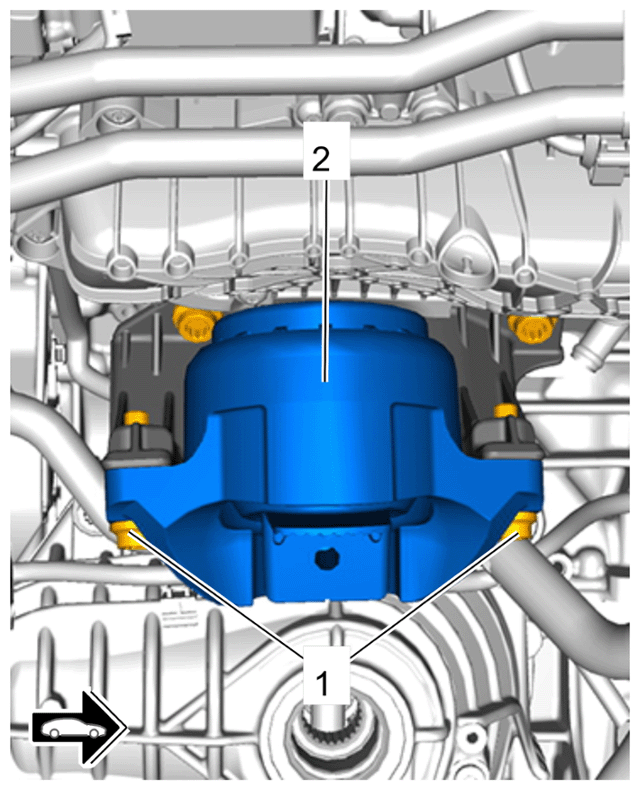

1. 5.1 Unscrew screws -1- and remove engine mount -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine mount
Remove right engine carrier -2- .

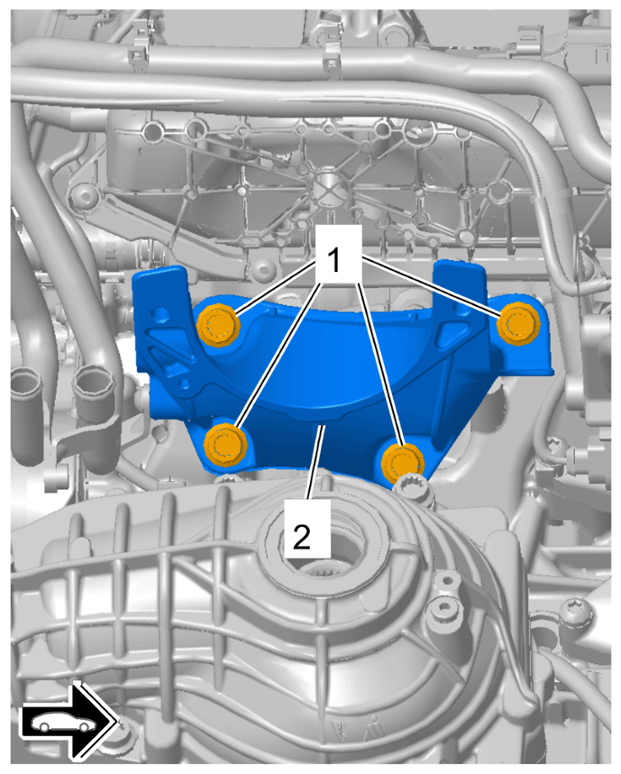

1. 6.1 Unscrew screws -1- and remove engine carrier -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right engine carrier
Remove all-wheel final drive.

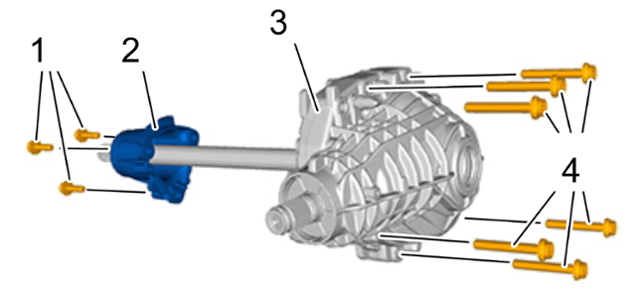

1. 7.1 Unscrew screws -4- and remove all-wheel final drive -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front-axle final drive
