Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|
| Screws for servo motor for rear-differential lock | M6 x 70 | Tightening torque | 8 Nm (6 ftlb.) | ||

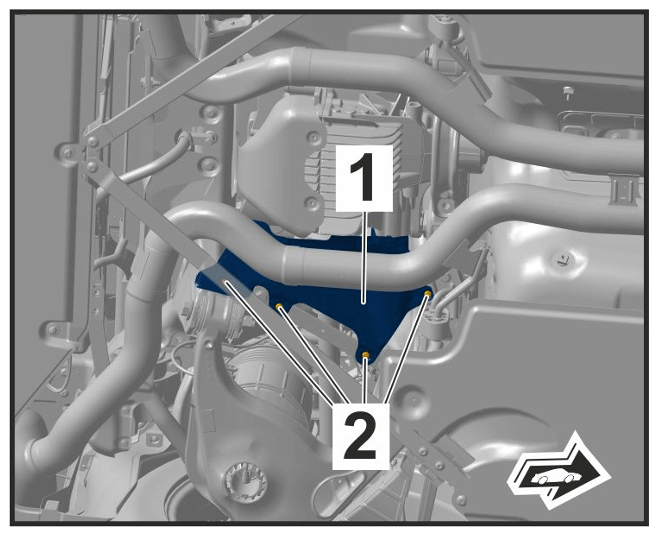

| Drive shaft protective plate to rear axle housing (right with TPM control unit holder) | Item 2: Hexagon roundhead bolt M6 x 12 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Mounting for protective plate for drive shaft |
