Removing Transverse Lock Servo Motor

WARNING: This page is about a different variant/trim than selected.
  1. Remove protective plate for drive shaft at the left -1-  .
    G15888862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for protective plate for drive shaft at the left

    1. 1.1 Unscrew fastening screws -2-  .

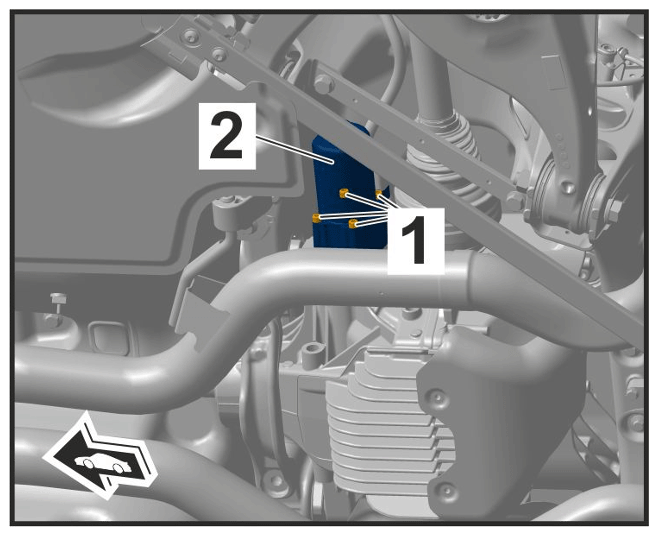

  2. Unscrew fastening screws -1-  on servo motor for rear-differential lock -2-  .
    G15888863Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for servo motor for rear-differential lock

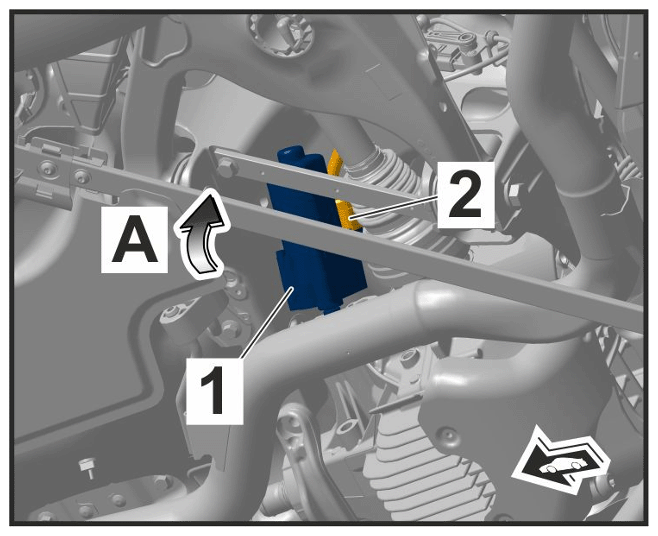

  3. Pull servo motor for rear-differential lock -1-  off the flange on the final drive, tilt it slightly -arrow A-  and release and disconnect electric connector -2-  .
G15888864Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric connector on servo motor for rear-differential lock
