Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Drive shaft protective plate to rear axle housing (right with TPM control unit holder)	Item 2: Hexagon roundhead bolt M6 x 12	Tightening torque	8 Nm (5.9 ftlb.)

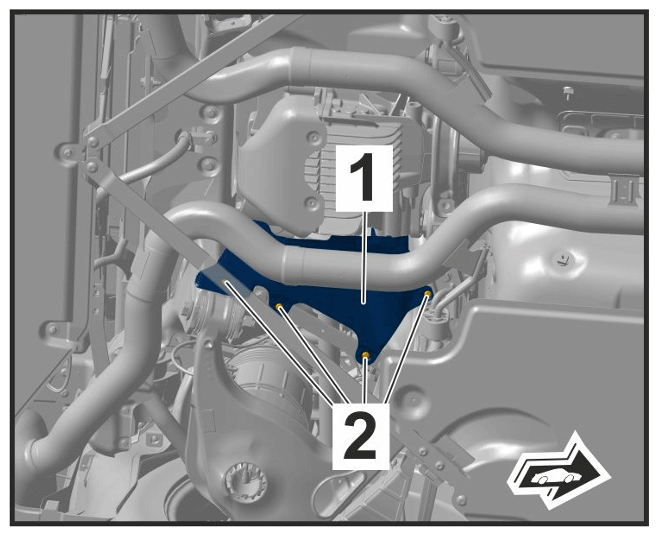

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for protective plate for drive shaft
Final drive to rear axle housing	Item 2: Hexagon-head bolt M12 x 95	Initial tightening	60 Nm (44.3 ftlb.)

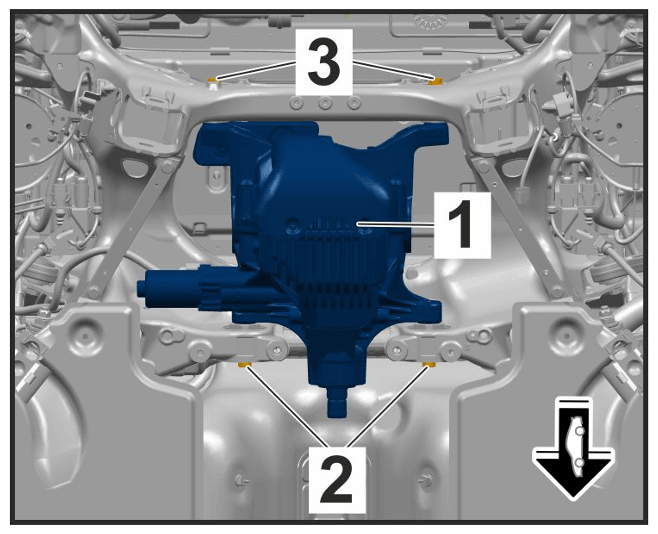

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final drive mounting
Final drive to rear axle housing	Item 2: Hexagon-head bolt M12 x 95	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Final drive mounting
Support to rear axle housing	Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal!	Initial tightening	70 Nm (51.6 ftlb.)

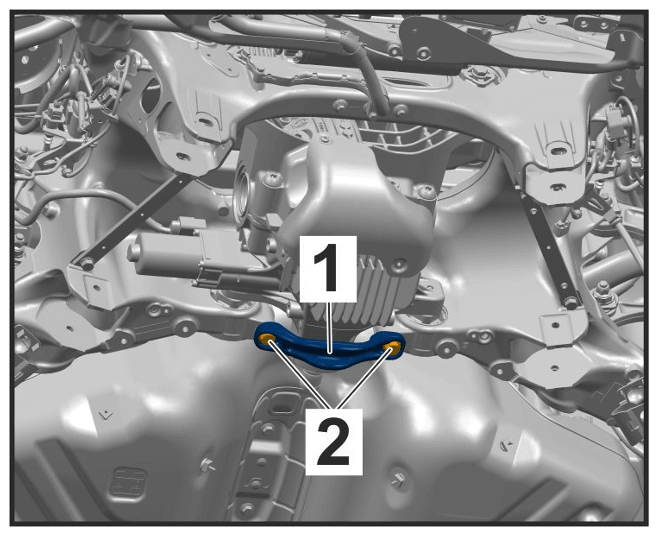

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for support
Support to rear axle housing	Item 2: Hexagon-head bolt M12 x 40/Always replace bolts after removal!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for support
