Removing Final Drive

WARNING: This page is about a different variant/trim than selected.
  1. Remove protective plates for drive shaft -1-  on both sides of the vehicle.
    G15888811Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for protective plate for left drive shaft

    1. 1.1 Unscrew fastening screws -2-  .
  2. Only for vehicles with rear-differential lock:  Release and disconnect electric plug connection -2-  on servo motor for rear-differential lock -1-  .

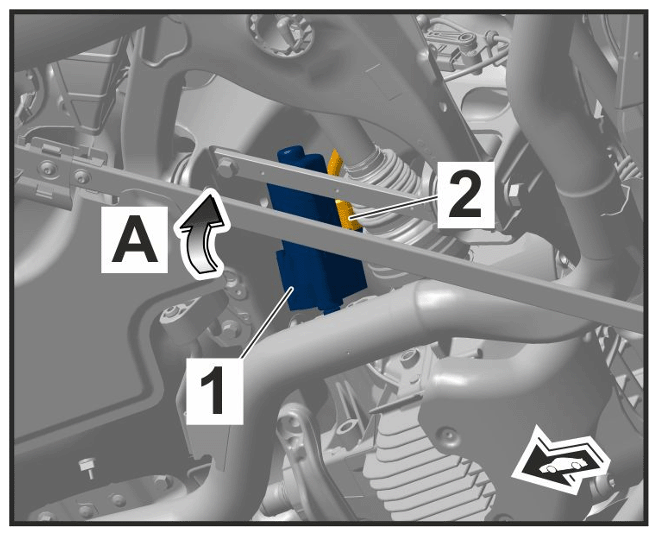

    G15888812Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on servo motor for rear-differential lock

  3. Only for vehicles with rear axle steering:  Remove support -1-  .

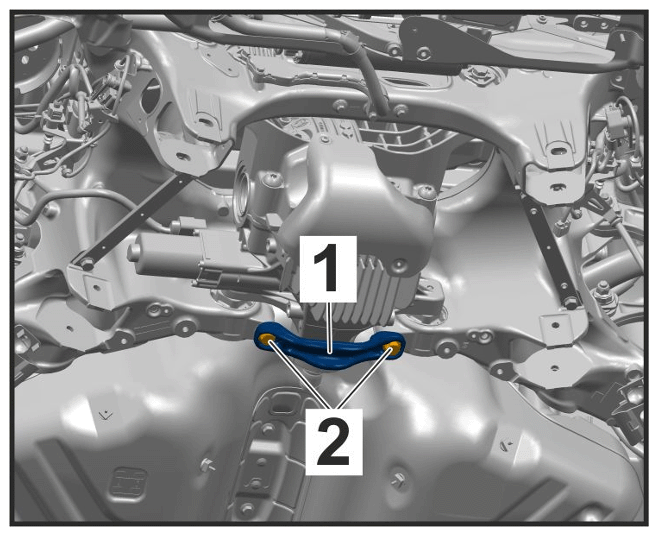

    G15888813Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for support

    1. 3.1 Unscrew fastening screws -2-  .
  4. Remove final drive -1-  .

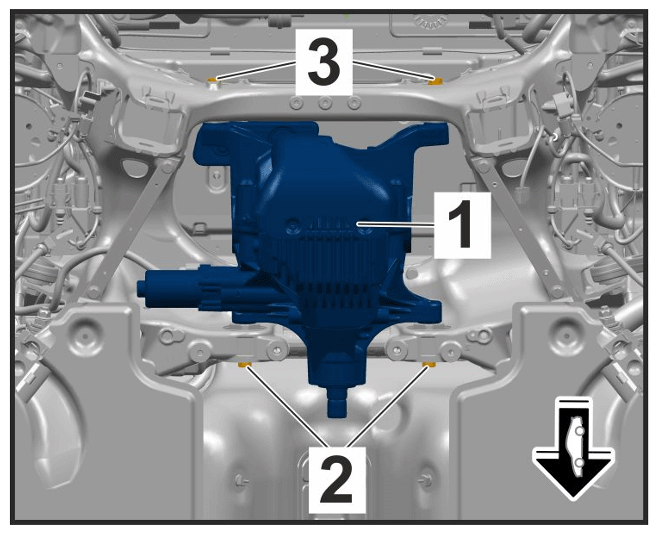

    G15888814Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Final drive mounting

    Information

    Always use an intermediate layer (e.g. hard rubber) when using the jack!

    1. 4.1 Support the final drive using > VAS 6931 - engine and gearbox jack  .

      Information

      • Unthread screws -2- until the final drive can be lowered.
      • The bolts -2- can be used several times as part of this repair work.
    2. 4.2 Unscrew fastening screws -2-  .
    3. 4.3 Unscrew fastening screws -3-  .
    4. 4.4 Guide out final drive.
