Removing Pressure Sensor

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove pressure sensor -1-  .

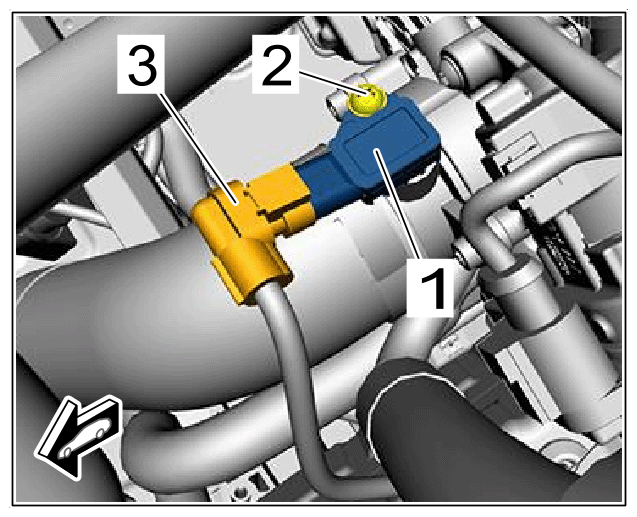

    G15877372Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pressure sensor

    1. 1.1 Release electric plug connection -3-  and disconnect it.
    2. 1.2 Remove screw -2-  .
    3. 1.3 Pull off pressure sensor -1-  .
