Subsequent Work

WARNING: This page is about a different variant/trim than selected.

Side 4-6 only:

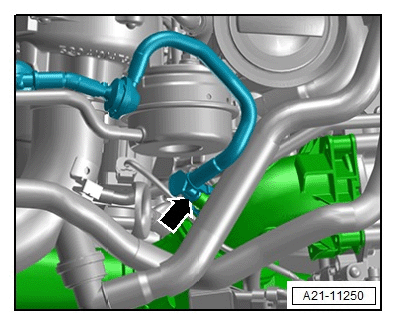

  1. Fit tank vent line -arrow-  .
    G15877371Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank vent line

  2. Install heat shield for turbocharger.

    > 261219 REMOVING AND INSTALLING HEAT SHIELD FOR TURBOCHARGER (V6 TURBO)
