Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. > 261219 REMOVING AND INSTALLING HEAT SHIELD FOR TURBOCHARGER (V6 TURBO)

    Side 4-6 only:

  2. Disconnect tank vent line -arrow-  .
    1. 2.1 Press release button on both sides and pull off the line.

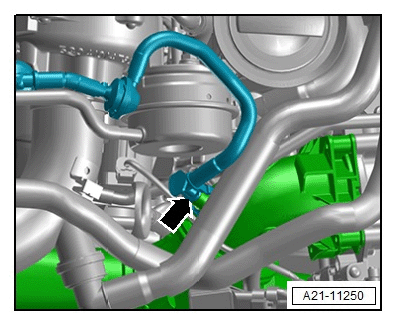

      G15877361Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Tank vent line
