Adjusting Bypass Flap Control Box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

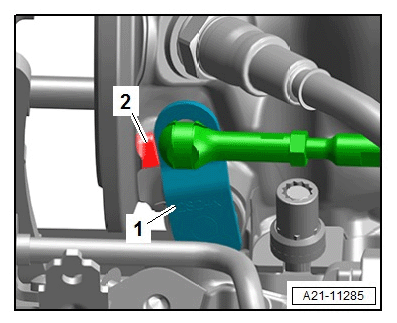

Actuating lever at stop

This makes the control rod longer.

1. 2.1 Tighten lock nuts -1 and 3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

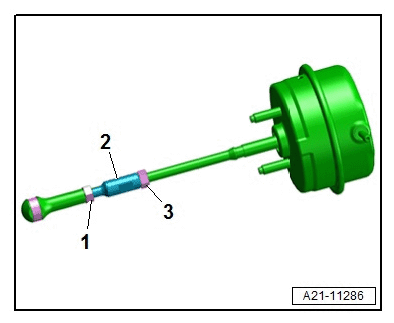

Lock nuts on control box

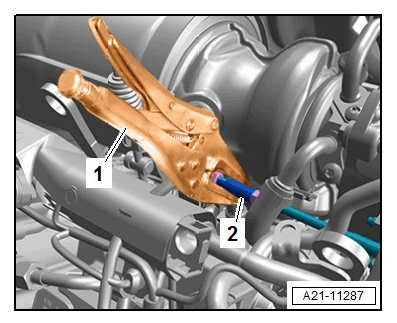

The clamping pliers serves as a stop for the dial gauge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamping pliers on control rod

Information

The measurement setup is described for one side as an example.

1. 4.1 > VW387 - Dial gage holder  must be secured to the engine transport eyebolt -2-  .
2. 4.2 Align the > VAS 6079 - Dial gauge  in the > VW387 - Dial gage holder  in such a way that the measuring sensor is positioned as parallel as possible to the pressure unit and the measuring sensor is touching the clamping pliers -1-  .
3. 4.3 Set the dial gauge to "0" with a preload of about 20 mm.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

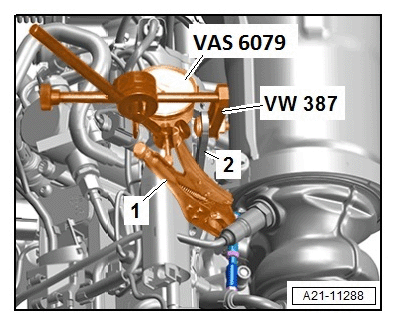

Measurement setup

1. 5.1 Set > VAS 6213 - Hand vacuum pump-1-  to vacuum.
2. 5.2 Switch on > V.A.G 1397B - Pressure sensor-2-  and set it to relative pressure.
3. 5.3 Connect > VAS 6342 - Pressure-regulating valve-3-  to the vacuum connection of the control box.
4. 5.4 Create a vacuum of at least 300 mbar on the control box.
5. 5.5 Reduce the vacuum to 200 mbar using the > VAS 6342 - Pressure-regulating valve-3-  .

   Control lever starts to move.

6. 5.6 Reduce the vacuum further to 170 - 230 mbar  and read off the adjustment range on the dial gauge.

   > Setpoint value 8 mm +/- 1 mm

7. 5.7 Reduce the vacuum further to 100 - 170 mbar  and read off the adjustment range on the dial gauge.

   > Setpoint value 3 mm +/- 1 mm

8. 5.8 If necessary, set the adjustment range at the control rod with the dial gauge fitted and repeat the measurement process.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

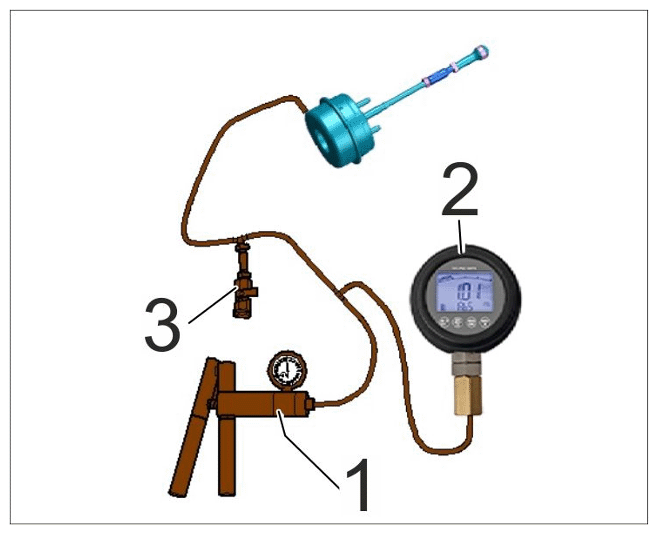

Vacuum pump and pressure sensor (diagram)

> Tightening torque 8 Nm (6 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock nuts on control box

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

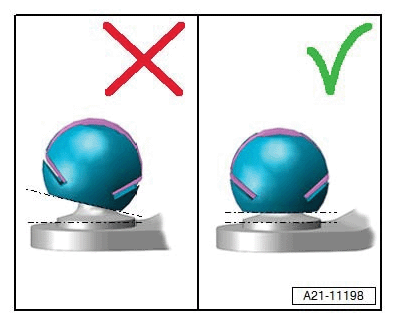

Aligning the ball socket
