Installing Recirculating Air Valve
WARNING: This page is about a different variant/trim than selected.
Information
The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.
- Install recirculating air valve -1-
.
- 1.1 Insert recirculating air valve -1-
.
- 1.2 Fit new screws -3-
.
- 1.3 Fit and tighten screws -3-
.
> Tightening torque 9 Nm (6.5 ftlb.)
- 1.4 Connect and lock electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

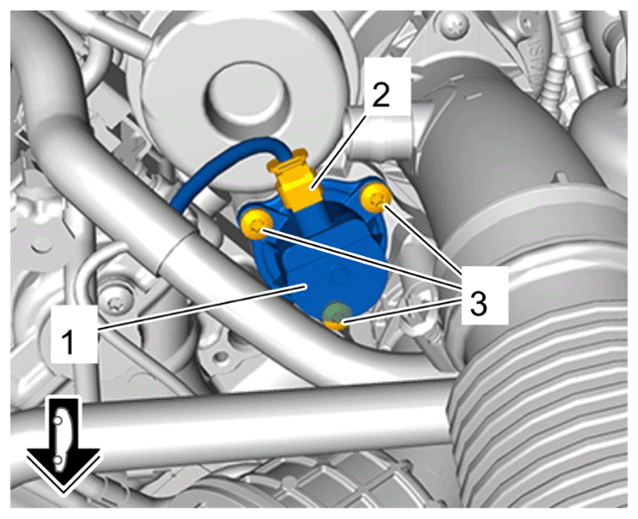

Recirculating air valve, right
