Adjusting Rear-Axle Toe
WARNING: This page is about a different variant/trim than selected.

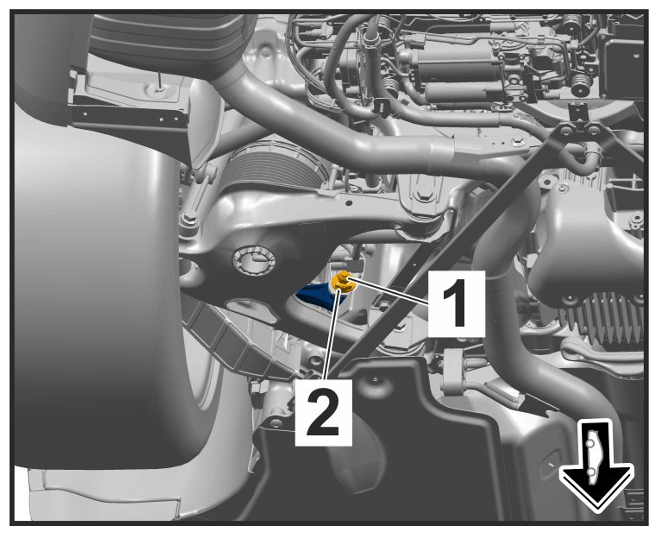

- Turn the toe eccentric adjuster -2-
as required after loosening the lock nut -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adjusting rear-axle toe
- 1.1 Then tighten the lock nut -1-
on the toe eccentric adjuster -2-
> Tightening torque 100 Nm (74 ftlb.)
