Adjusting Rear-Axle Camber
WARNING: This page is about a different variant/trim than selected.

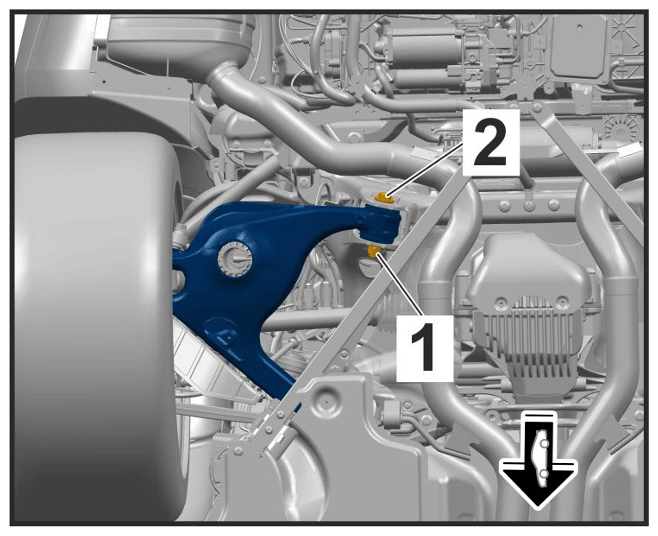

- After loosening the fastening nut, turn camber eccentric -2-
as required.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Adjusting rear-axle camber"
- 1.1 Then tighten the lock nut -1-
for the camber eccentric adjuster using > T10188 - insert tool-2-
> Tightening torque 160 Nm (118 ftlb.)
