Removing Actuating Cylinder For Rear Lid

WARNING: This page is about a different car, the 2023 Porsche Panamera and 2022 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Incorrect handling of actuating cylinders

Actuating cylinders can burst
Risk of eye injuries
Risk of bruising
→ The actuating cylinders must be in idle state in order to remove them.

→ Open the lid fully.

→ Ensure the end position of the lid manually.

→ Secure the lid after removing the actuating cylinders to prevent it from closing accidentally.

→ Do not use force when opening the actuating cylinders due to the high internal pressure.

Release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

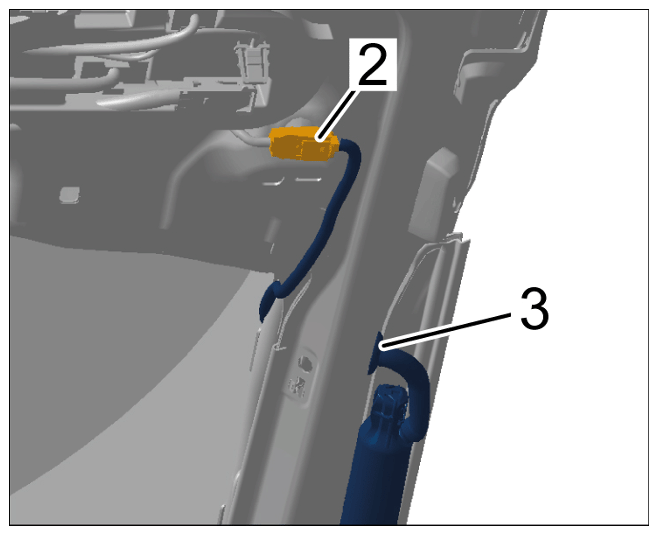

Releasing and disconnecting electric plug connection
Loosen rubber sleeve -3- and guide out electric wire harness.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding out electric wire harness

Information

The help of another person is required to prevent the rear lid from closing accidentally.

Loosen actuating cylinder on the lid side.

3.1 Variant 1:

Release safety clip on the lid -1- using a slotted screwdriver -arrow A- and pull actuating cylinder -2- off the ball pin -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

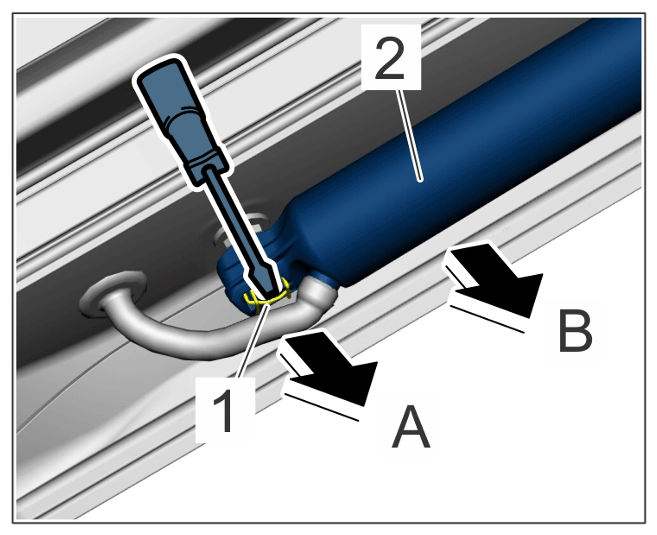

Actuating cylinder variant 1

3.2 Variant 2:

Release safety clip on the lid -1- using a slotted screwdriver -arrow A- and pull actuating cylinder -2- off the ball pin -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

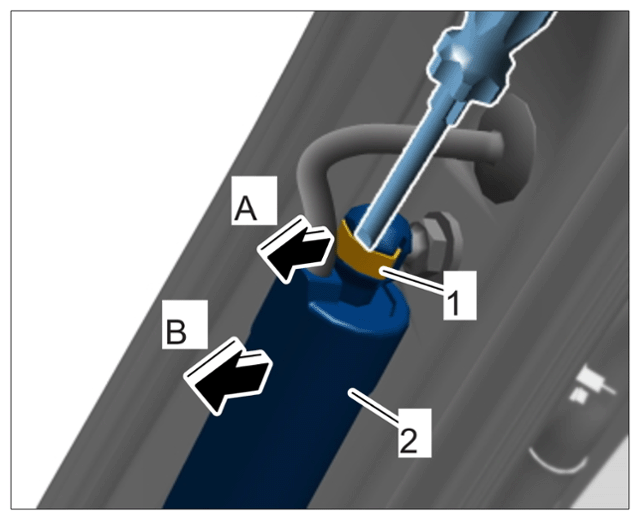

Actuating cylinder variant 2

Release safety clip on the body using a suitable tool, pull actuating cylinder off the ball pin and remove it.
