Subsequent Work
- For heat shield on centre tunnel:
Install exhaust system.
- For heat shield on rear bumper:
Install rear apron.
> WM, 635519 REMOVING AND INSTALLING REAR APRON (Coupe) , WM, 635519 REMOVING AND INSTALLING REAR APRON (Wagon)
- For heat shield on rear silencer:
- 3.1 Install heat insulation at the centre, in luggage compartment pan -1-
.
- 3.1.1 Move heat insulation at the centre, in luggage compartment pan -1- into installation position.
- 3.1.2 Fit and tighten screws -2-
and nuts -3-
.
Screws -2- : > Tightening torque 2.5 Nm (1.75 ftlb.)
Nuts -3- : > Tightening torque 2.5 Nm (1.75 ftlb.)
- 3.2 Install exhaust system.
> 260119 REMOVING AND INSTALLING EXHAUST SYSTEM

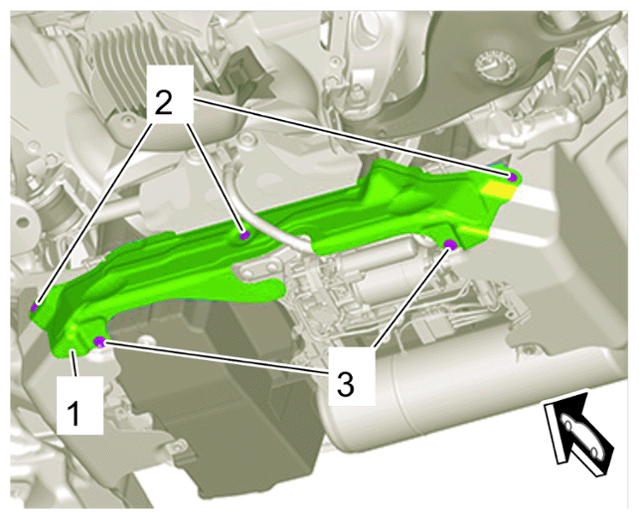

Heat insulation at the centre, in luggage compartment pan
- 3.1 Install heat insulation at the centre, in luggage compartment pan -1-
.
