Removing Pressure Accumulator

  1. Remove heat protection panel -1-  at the bottom from the bolts and press it aside slightly.

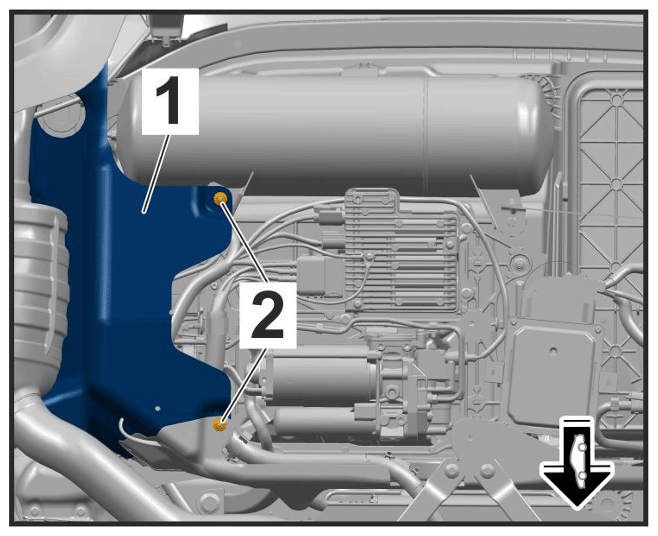

    G15858217Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel mounting

  2. Remove pressure accumulator -5-  .

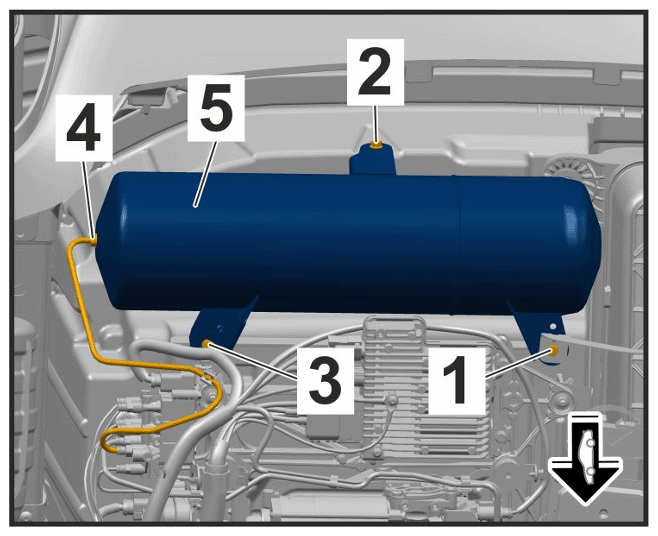

    G15858218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for pressure accumulator

    Information

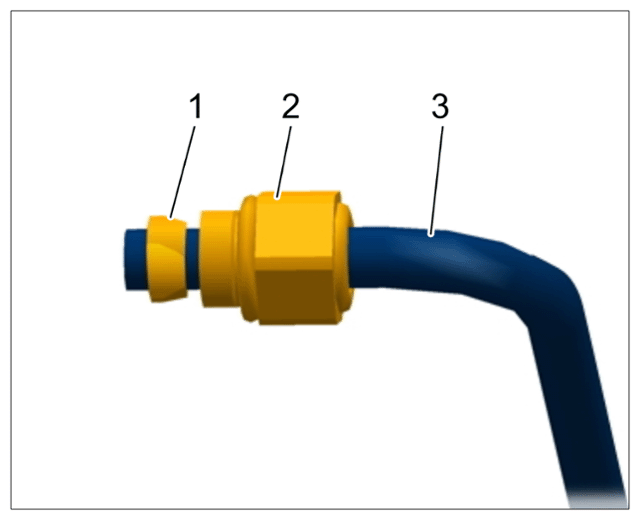

    The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

    G15858219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air line

    1. 2.1 Unscrew Voss threaded joint -4-  for the air line and pull off air line.
    2. 2.2 Unscrew fastening screws -1 to 3-  .
