Installing Pressure Accumulator

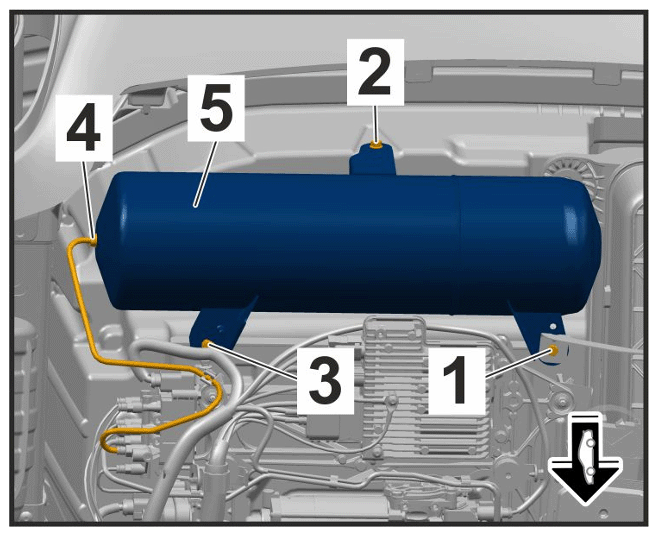

Fig 1: Pressure Accumulator Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for pressure accumulator

1. 1.1 Tighten the fastening screws in the sequence -1 to 3-  > Tightening torque 8 Nm (6 ftlb.)

   Information

   Check the following before installing the air line:

   • Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
   • Check that the air line is fitted correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking air line

   Only one marking -1-  on the air line should be visible.

   Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Checking that air line is fitted correctly

2. 1.2 Connect air line and tighten Voss threaded joint -4-  for the air line > Tightening torque 5 Nm (3.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

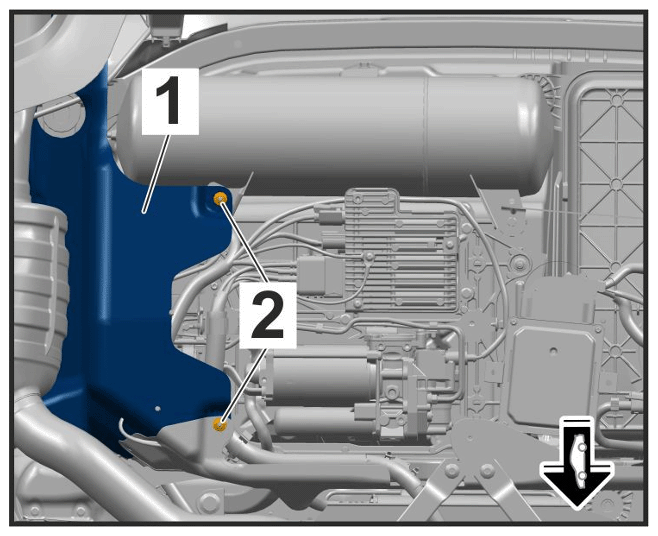

Heat protection panel mounting
