Subsequent Work

Install connecting link.
> 429119 REMOVING AND INSTALLING CONNECTING LINK FOR ANTI-ROLL BAR

Information

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

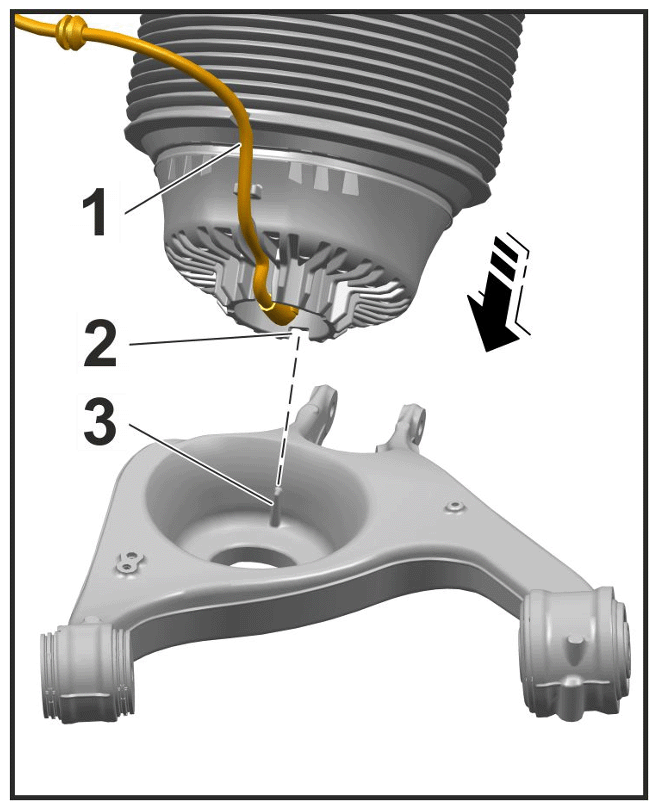

Positioning air spring bellows in trailing arm
- The air spring bellows may only be filled if it was already positioned correctly in the trailing arm (to do this, lift lower trailing arm using lifting equipment) > Positioning air spring bellows in trailing arm.
- Align air spring bellows with groove -2- at the lug -3- of the trailing arm.
Fill air spring bellows.
> 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM
Visually inspect the rear air spring bellows.
Rolling creases in the protective boot must be removed correctly (no kinks)!
