Installing Valve Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for valve unit

1. 1.1 Tighten fastening screws -2-  > Tightening torque 4.5 Nm (3 ftlb.)

Information

Check the following before installing the air line:

• Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
• Check that the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air line

Only one marking -1-  on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking that air line is fitted correctly

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for air lines on valve unit

1. 2.1 Connect air lines and tighten Voss threaded joints -2-  > Tightening torque 2 (1. 5 ftlb.) Nm
2. 2.2 Connect air lines and tighten Voss threaded joints -3-  > Tightening torque 3 Nm (2 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on the valve unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

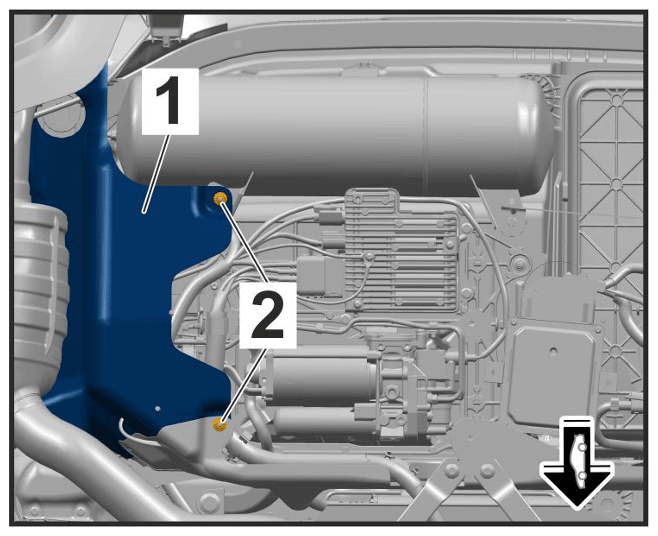

Heat protection panel mounting
