Removing Compressor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

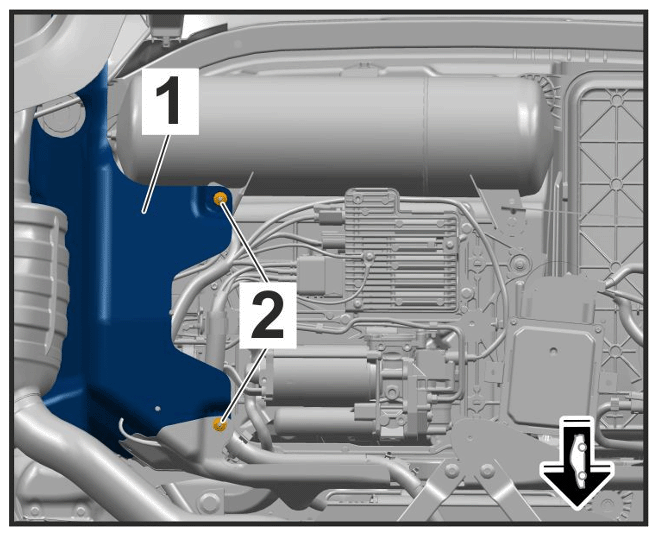

Heat protection panel mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

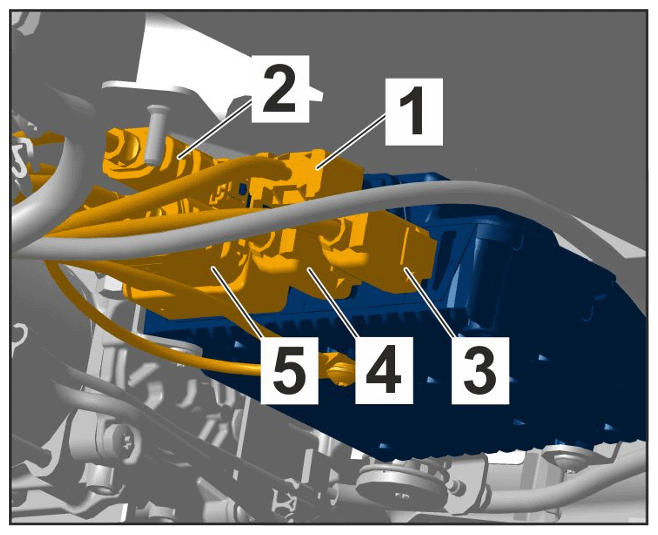

Sequence for disconnecting the electric plug connections

1. 2.1 Release and disconnect electric plug connections from the PDCC control unit in the sequence -1 to 5-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

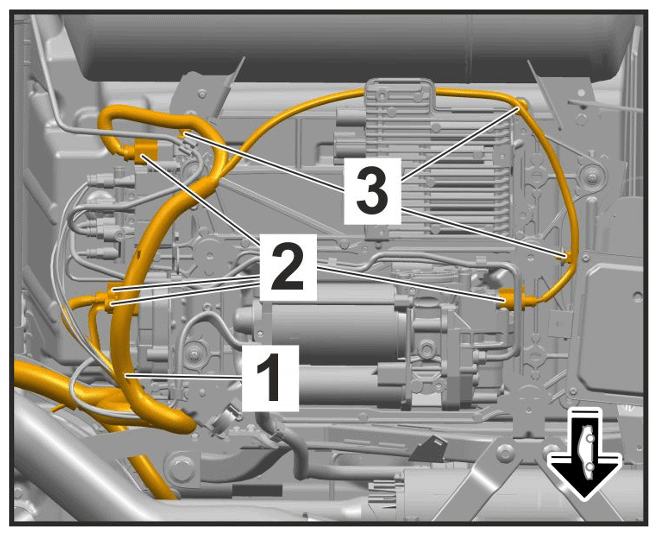

Mounting for PDCC wire harness

1. 3.1 Unscrew fastening screw for ground line -3-  .
2. 3.2 Remove PDCC wire harness from the brackets -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for wire harness for levelling system

1. 4.1 Release and unplug electric plug connections -2-  .
2. 4.2 Loosen brackets -3-  on wire harness for levelling system.

Information

The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for air lines on valve unit

1. 5.1 Unscrew Voss threaded joints -2 and 3-  and pull off air lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for suction line on compressor

1. 6.1 Loosen spring band clamp -3-  and pull off suction line -1-  .
2. 6.2 Loosen bracket -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

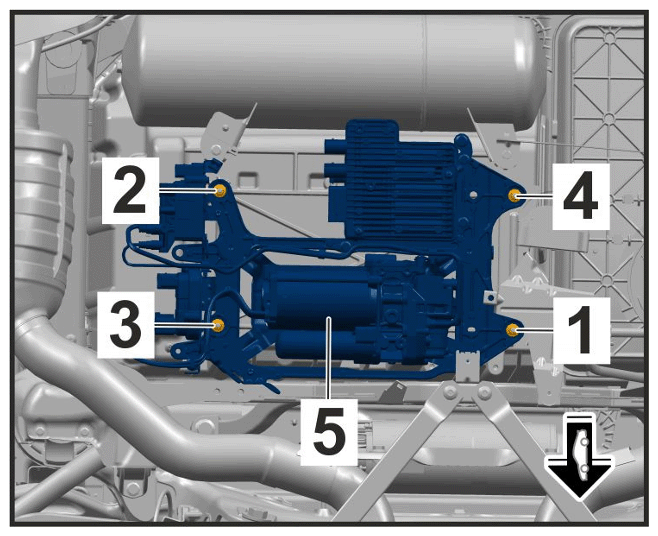

Levelling system mounting - conventional

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Levelling system mounting - PHEV

1. 7.1 Unscrew nuts -1 to 4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lines on compressor

1. 8.1 Release and disconnect electric plug connection -2-  on the control unit.
2. 8.2 Loosen brackets -3-  .

   Information

   The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air line

3. 8.3 Unscrew Voss threaded joints -4 and 5-  for the air lines and pull off air lines.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Compressor mounting

1. 9.1 Unscrew fastening screws -1 to 4-  using > 9890 - socket wrench E12  .
