Calibrating The Levelling System
- Irreparable damage to control unit
- Damage to control unit
- Fault entries in the control unit
- Control unit programming/coding is aborted
- Malfunctions in the control unit, even during programming/coding
→ Switch off ignition before disconnecting the control unit.
→ Make sure that the power supply is not interrupted during programming/coding.
→ Connect the battery charger with at least > current 90 A to the vehicle battery.
- Drive the vehicle (full fuel tank with tyre repair kit or spare wheel and tools) tension-free onto the wheel-alignment stand, ensuring that axle components are not under tension by moving the vehicle forward and backward several times if necessary.
- Place front wheels on turntable and rear wheels on rotary/sliding plates. The sliding base and turntable must not be at the end stop.
- Check angle sensor for headlight beam adjustment (e.g. through a bent linkage or holder). In the event of damage, replace the relevant angle sensor for headlight beam adjustment
> WM, 947819 REMOVING AND INSTALLING FRONT ANGLE SENSOR FOR HEADLIGHT BEAM ADJUSTMENT (HBA)
> WM, 947919 REMOVING AND INSTALLING REAR ANGLE SENSOR FOR HEADLIGHT BEAM ADJUSTMENT (HBA)

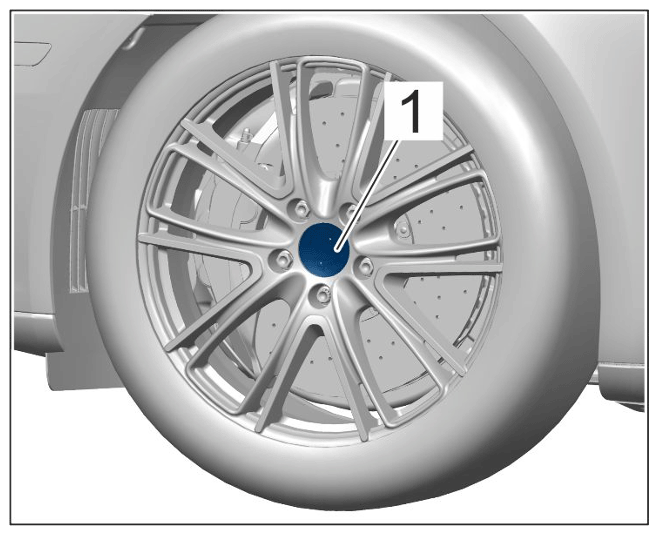

- Remove hub caps -1-
from all four wheels using > 9229/1 - puller hook
.
Hub cap
Information

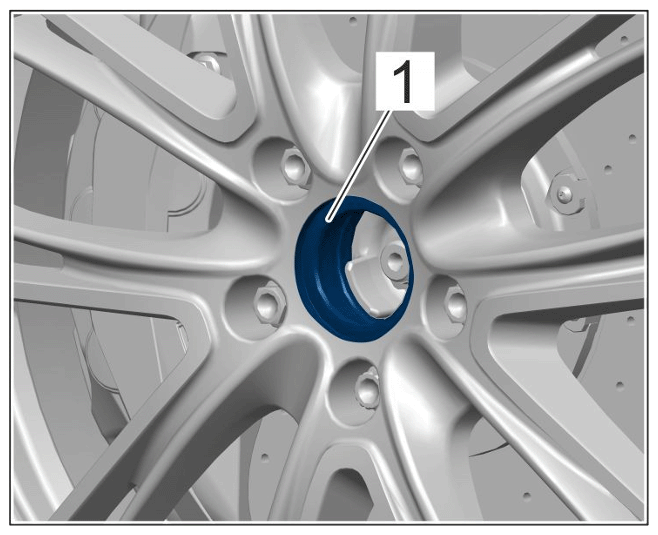

Contact surfaces of the wheel hub bore -1- must be clean and smooth. Even minor debris in the wheel hub bore can result in incorrect measurements.
Wheel hub bore
- > VAS 6918 - Quick-Clamping Unit in the wheel hub bores on all four wheels.
- > 9900 - PIWIS Tester 3 must be connected to the vehicle before starting the Tester. Switch on ignition.
- Apply the electric parking brake.
- Close or lock doors and rear lid.
- Erase
the fault memory.
Using > 9900 - PIWIS Tester 3 , select Chassis control > Fault memory > Erase fault memory
If faults are still present after erasing the fault memory, these must be corrected first.
- Height sensor calibration
must be performed: Using > 9900 - PI WIS Tester 3
, select Chassis control > Maintenance/repairs > Commissioning > Height sensor calibration.
- 10.1 Determine the actual value for the height of the vehicle body at the measuring points.
- 10.1.1 When determining the height of the vehicle body, the height is measured from the lower edge of the wing to the upper edge of the measured-value pickup, dimension X.
- 10.1.2 Then add the radius
of the measured-value pickup 32.5 mm
to this measured dimension X.
Sample calculation:
Measured dimension X = 382 mm; measured-value pickup radius = 32.5 mm
X + measured-value pickup radius = vehicle body height
382 mm + 32.5 mm = 414.5 mm
- 10.2 Enter the determined values in the Porsche System Tester.
If an implausible value is entered (actual value is not accepted by Porsche System Tester), please refer to the information under: "Procedure: Measured actual value is not accepted".
- 10.1 Determine the actual value for the height of the vehicle body at the measuring points.
