Technical Values For Rear Seat

Location	Description	Type	Basic value	Tolerance

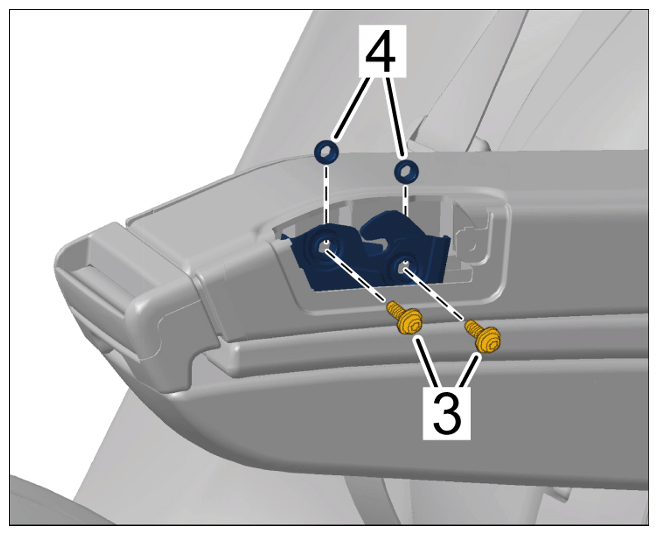

Screws on backrest locking mechanism	Item 4	Tightening torque	3.2 Nm (2.2 ftlb.)	+/- 0.32 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for backrest locking mechanism
Nuts securing seat-surface extension to seat frame	Item 9	Tightening torque	5 Nm (3.5 ftlb.)

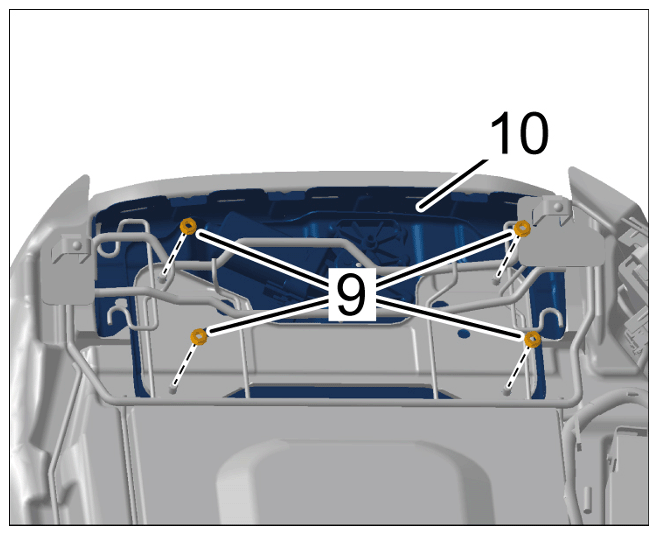

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing seat-surface extension to seat frame

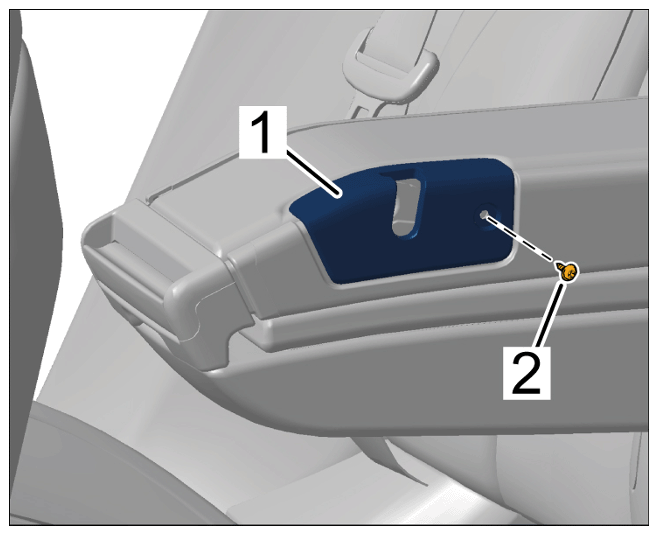

Screw securing cover to load-through provision lock	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing cover to load-through provision lock

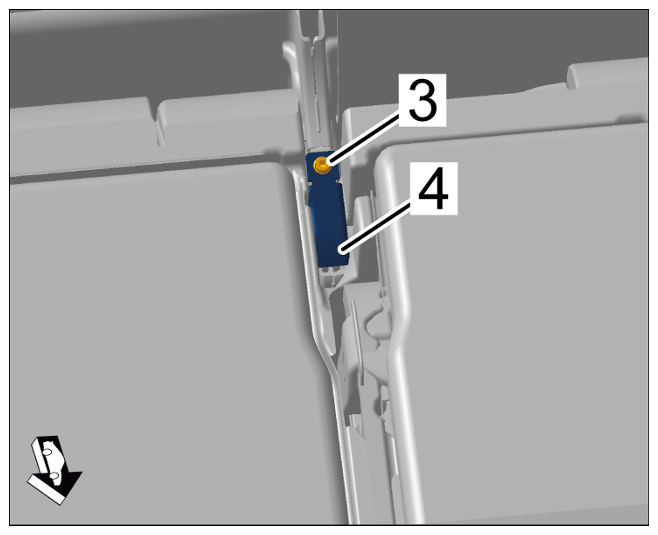

Screws securing load-through provision lock to load-through provision	Item 3	Tightening torque	20 Nm (15 ftlb.)	+/- 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing load-through provision lock to load-through provision
Screws for rear-backrest lock cover	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

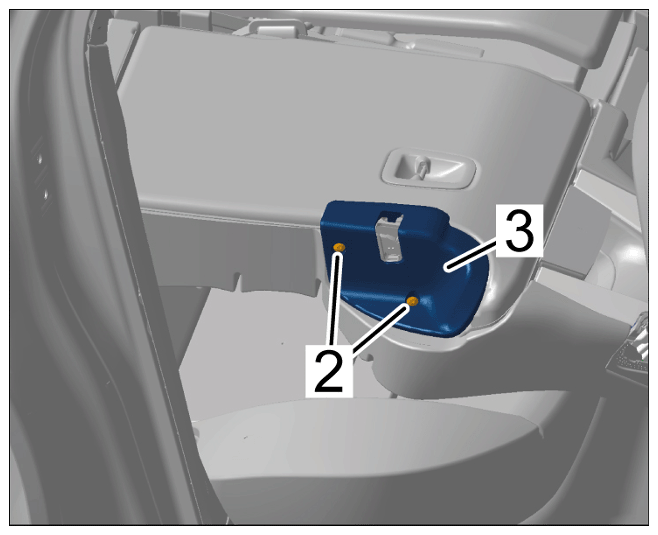

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear-backrest lock cover

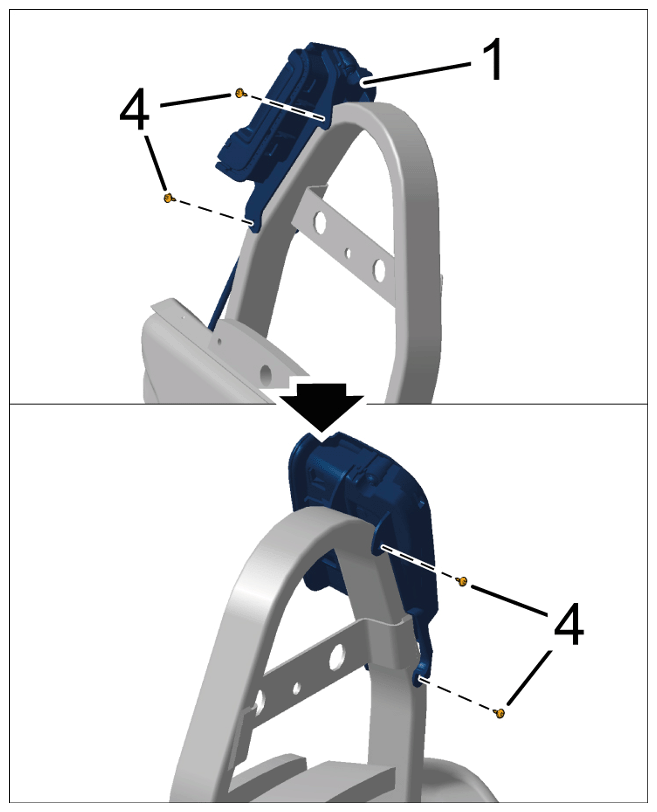

Screws for rear-backrest lock	Item 4	Tightening torque	24 Nm (18 ftlb.)	+/- 2.4 Nm (2 ftlb.)

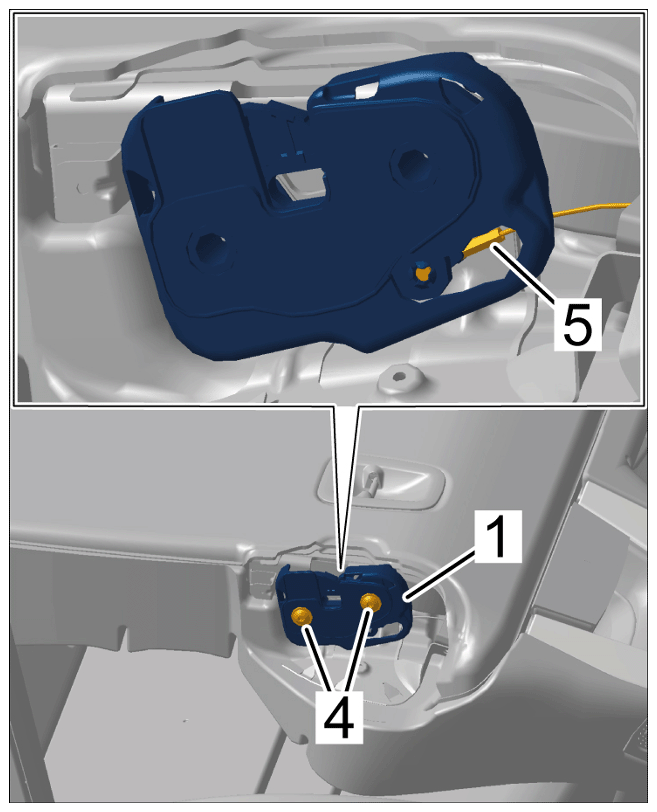

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear-backrest lock

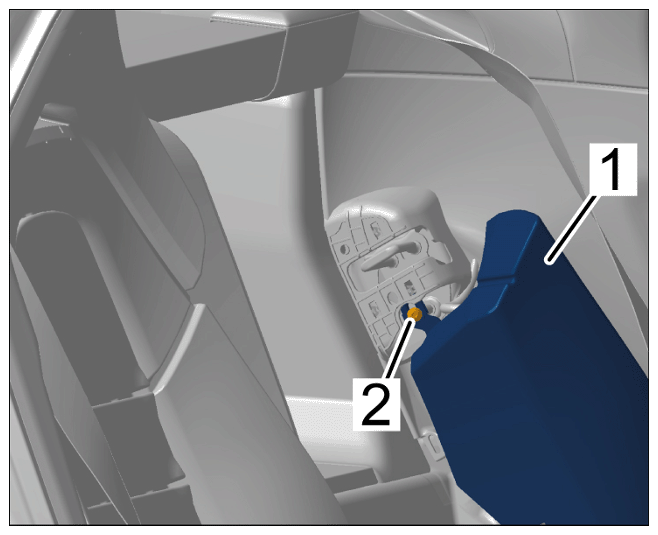

Screw for side cushion	Item 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for side cushion
Screw securing side holder to backrest frame	Item 1	Tightening torque	6 Nm (4 ftlb.)

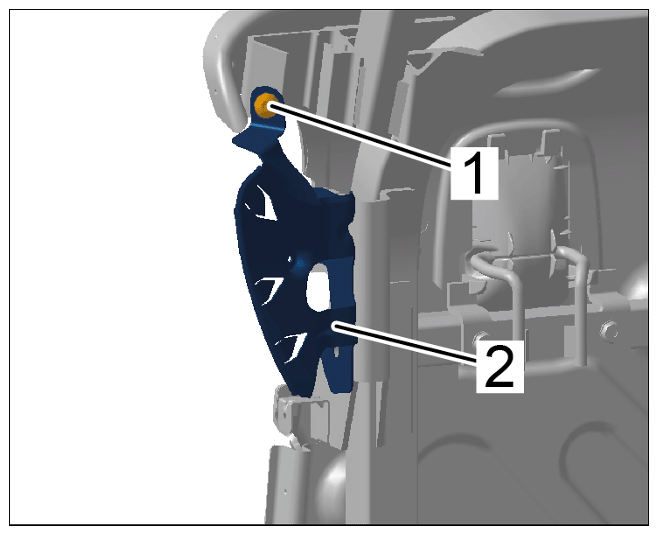

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side holder to backrest frame
Screws securing clips to backrest frame	Item 5	Tightening torque	9 Nm (6.5 ftlb.)

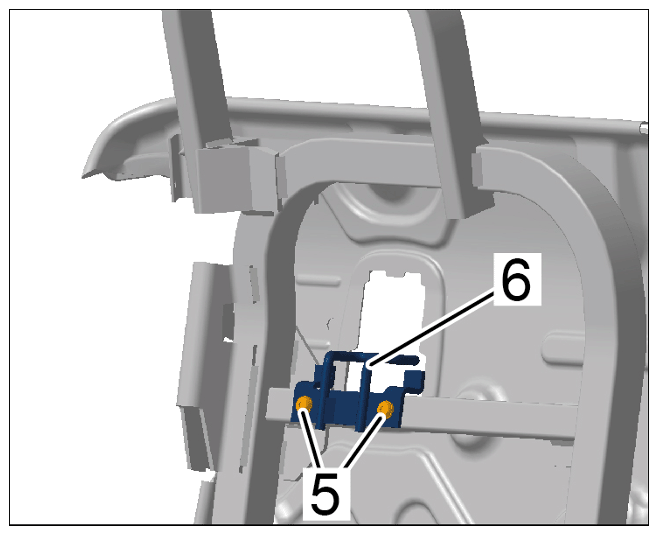

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing clips to backrest frame
Screws for armrest holder	Item 7	Tightening torque	9 Nm (6.5 ftlb.)

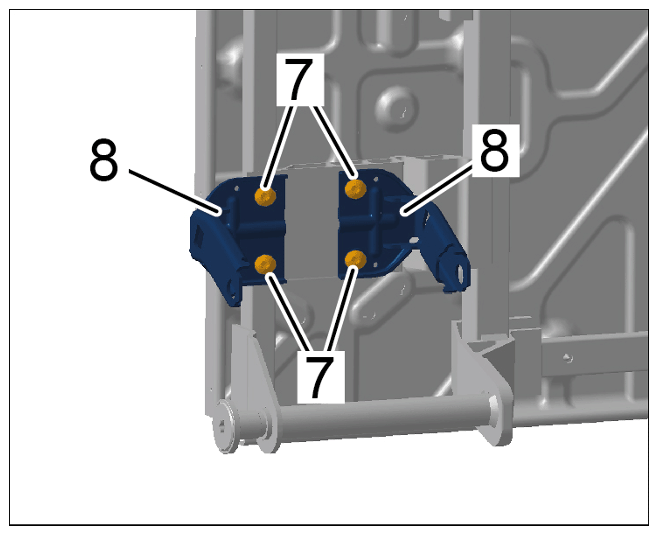

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest holder
Bolt securing load-through provision lock to backrest frame		Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Nut for backrest mount	Item 1	Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut for backrest mount

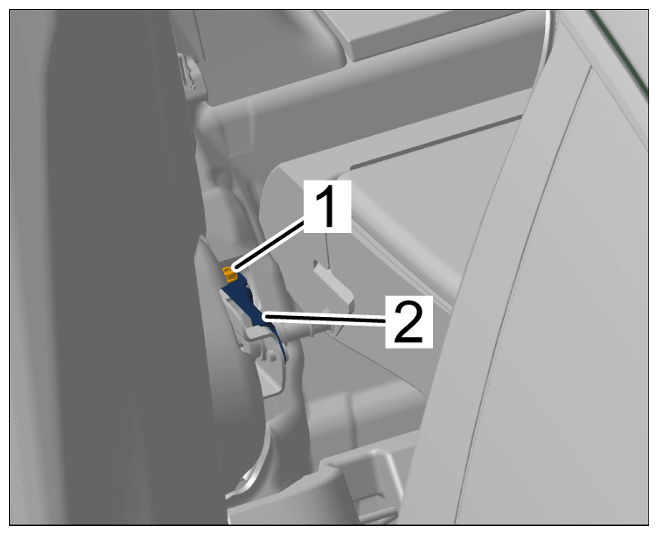

Screw for securing clip on outside of vehicle	Item 1	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for securing clip on outside of vehicle
Screw for securing clip on centre of vehicle	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing securing clip on centre of vehicle

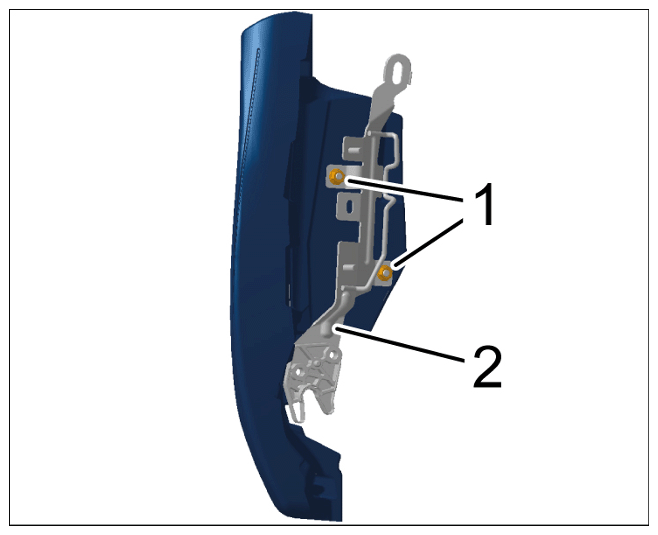

Nut on holder for side cushion padding	Item 1	Tightening torque	9.7 Nm (7.5 ftlb.)	+/- 1 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on holder for side cushion padding

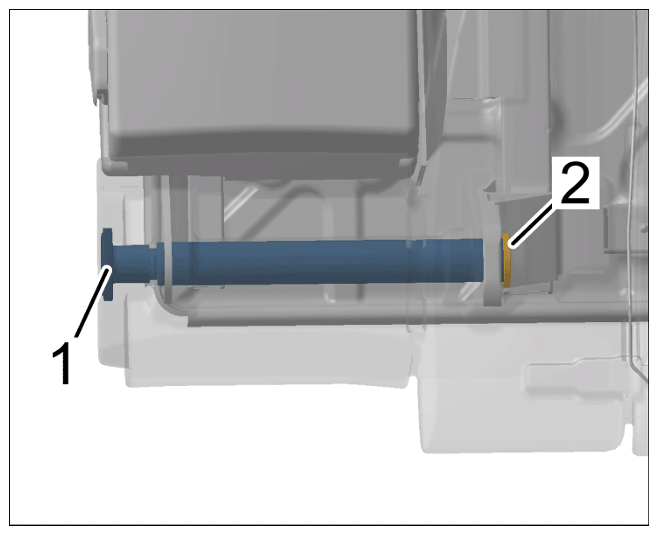

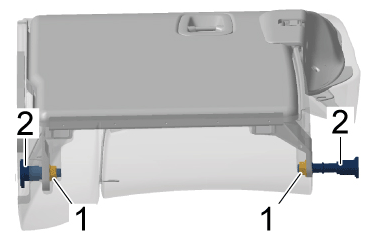

Bearing pin securing load-through provision to backrest	Item 1	Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bearing pin securing load-through provision to backrest
