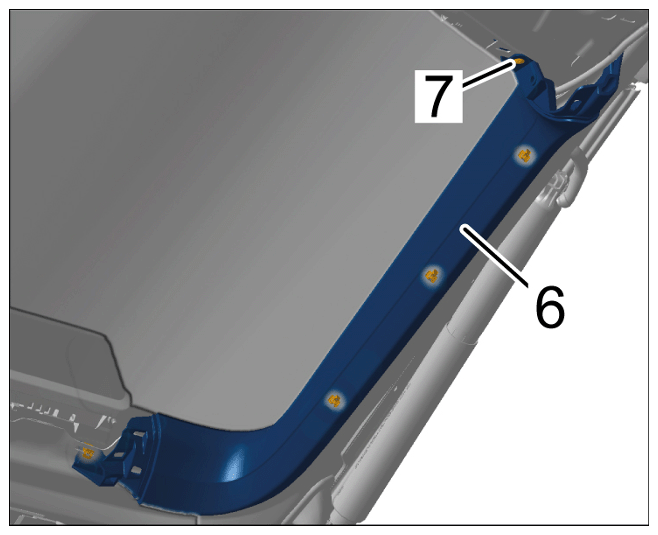

| Screw for trim panel on window frame |
Item 7 |
Tightening torque |
5 Nm (3.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw for trim panel on window frame |

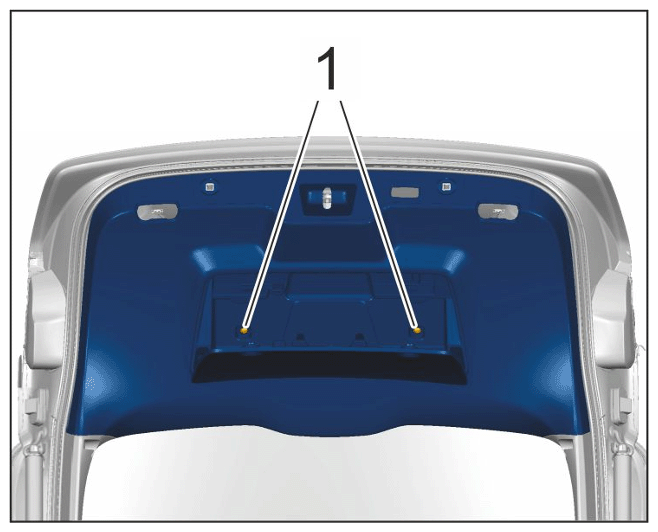

| Screw for trim panel, bottom |
Item 1 |
Tightening torque |
1 Nm (0.5 ftlb.) |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rear lid trim panel, bottom |
