Technical Values - Front Seat

Location	Description	Type	Basic value	Tolerance

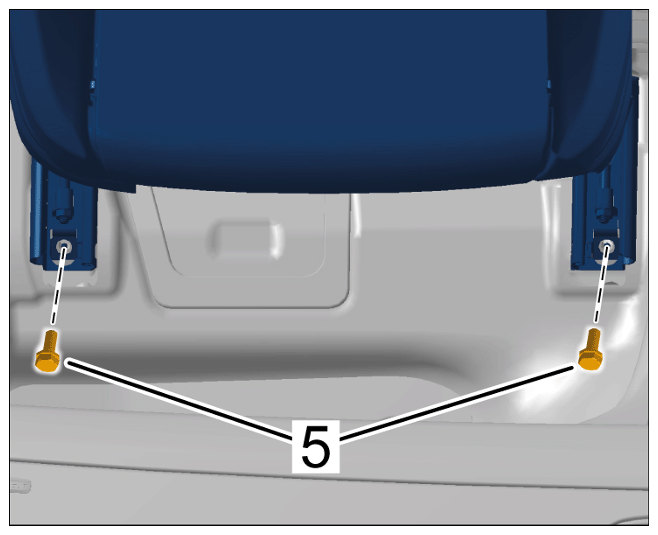

Screws on front seat rail	Item 5	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat rail screws

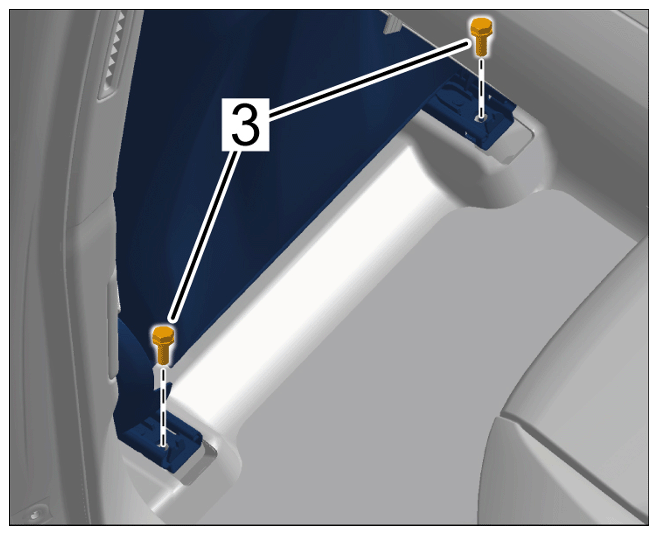

Screws on rear seat rail	Item 3	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seat rail screws

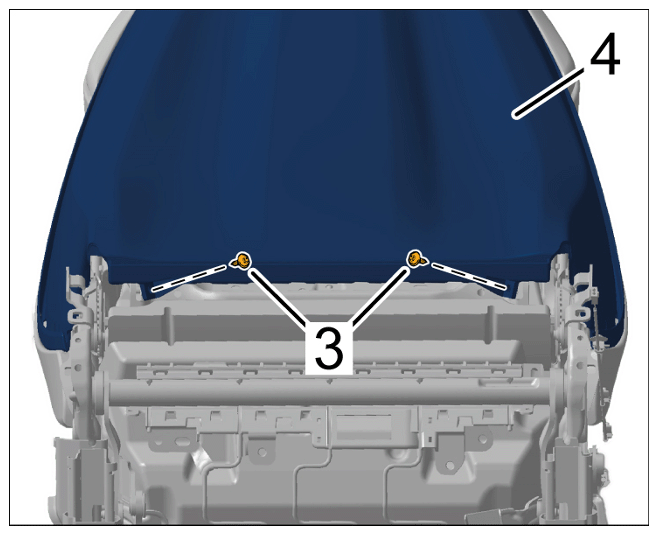

Screws for backrest cover	Item 3	Tightening torque	5 Nm (3.5 ftlb.)	+/- 2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for backrest cover

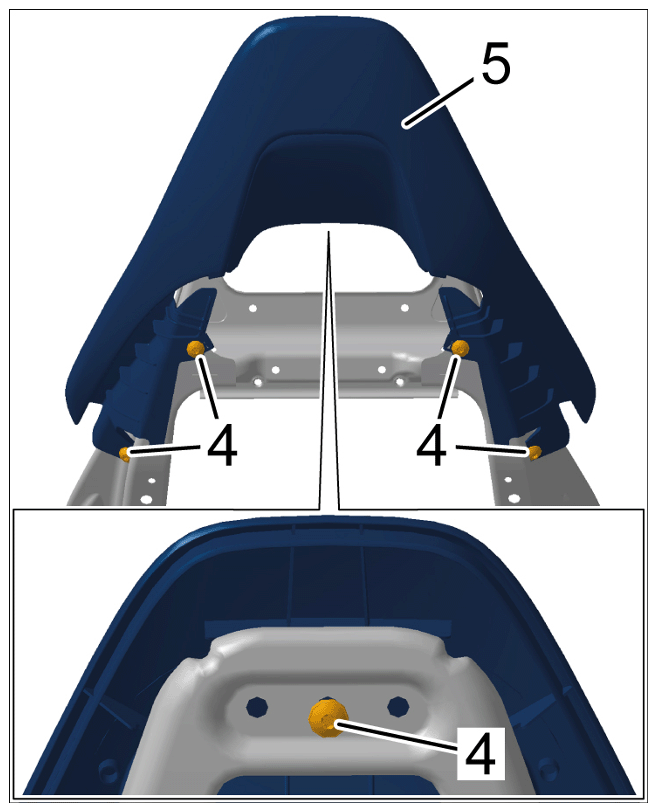

Screws securing headrest to seat backrest frame	Item 4	Tightening torque	5 Nm (3.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing headrest to seat backrest frame

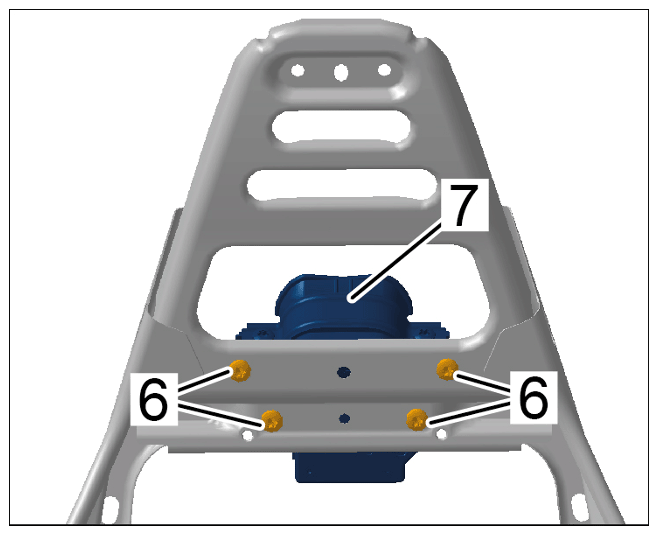

Screws securing Rear Seat Entertainment holder to seat backrest frame	Item 6	Tightening torque	4.2 Nm (3.2 ftlb.)	+/- 0.1 Nm (0.07 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing Rear Seat Entertainment holder to seat backrest frame

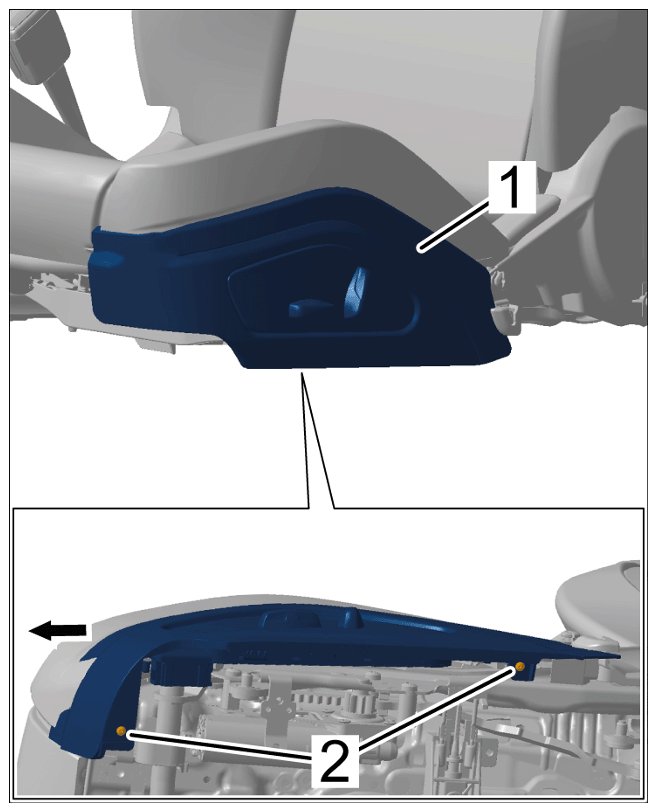

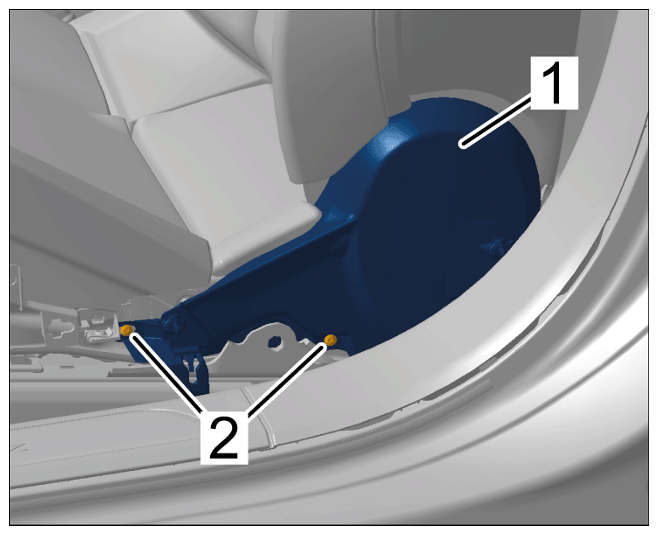

Screws for front outer seat trim panel	Item 2	Tightening torque	2.2 Nm (1.6 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front outer seat trim panel
Screws for trim panel on control panel	Item 2	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.2 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for trim panel on control panel

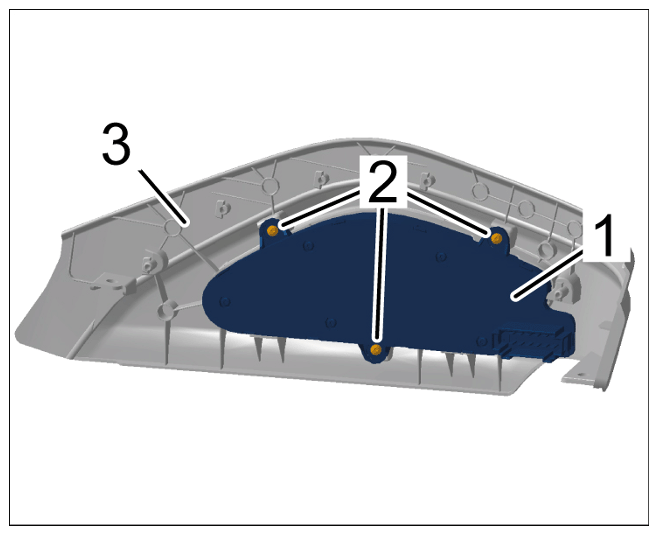

Screws for front seat adjustment switch	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front seat adjustment switch

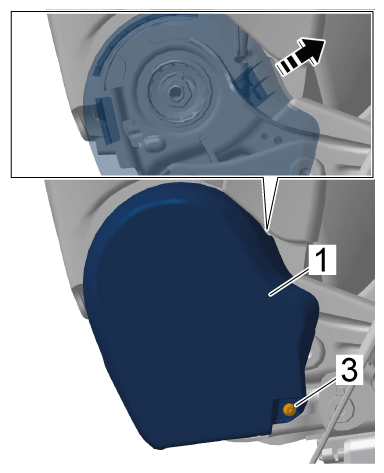

Screws for front inner seat trim panel	Item 3	Tightening torque	2.2 Nm (1.6 ftlb.)	+/- 0.2 (0.1 ftlb.) mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for front inner seat trim panel

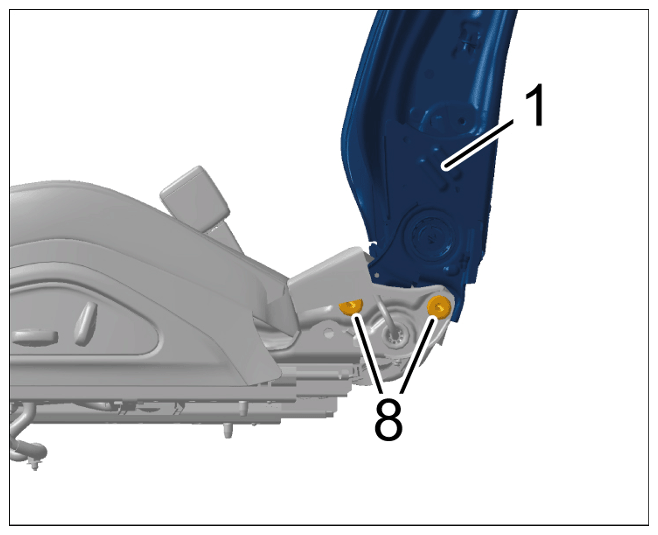

Screws securing backrest frame to seat frame	Item 8	Tightening torque	44 Nm (33 ftlb.)	+/- 0.7 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing backrest frame to seat frame

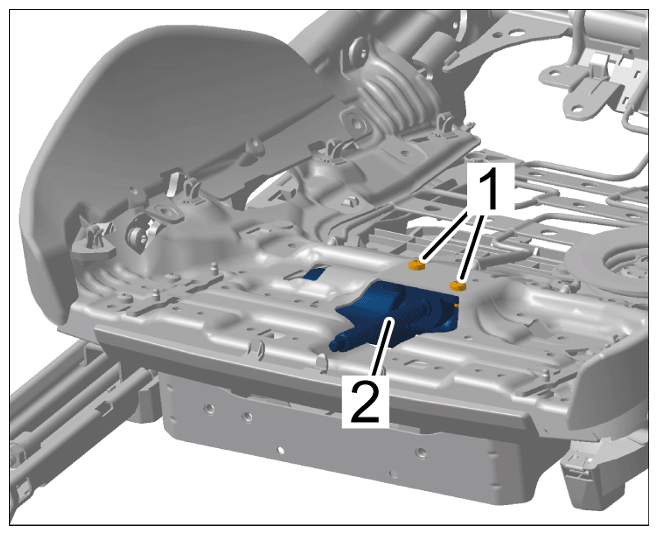

Screw on motor for front seat-surface extension	Item 1	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for front seat-surface extension

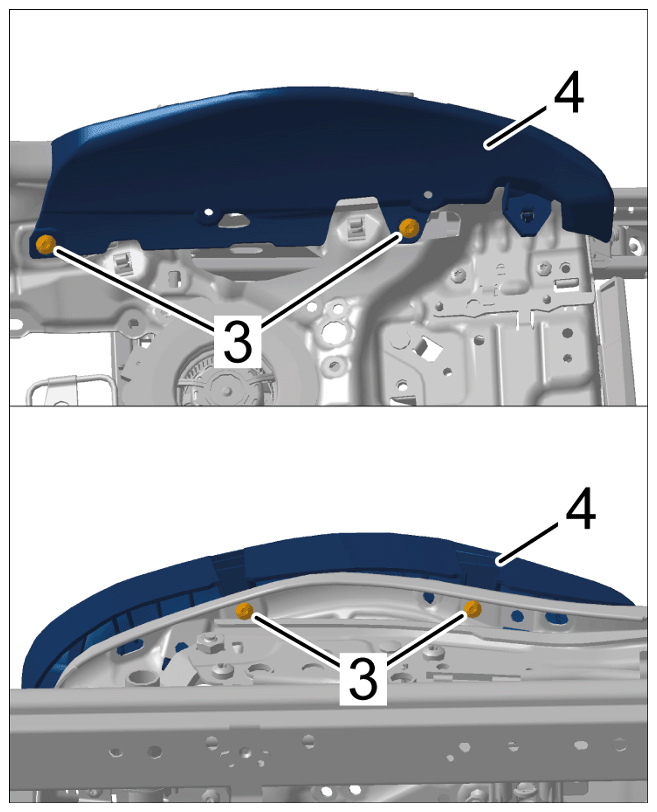

Upper screw on side bolster	Item 3	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper screws on side bolster
Lower screw on side bolster	Item 3	Tightening torque	2 Nm (1.5 ftlb.)	+/- 0.1 (0.07 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower screws on side bolster

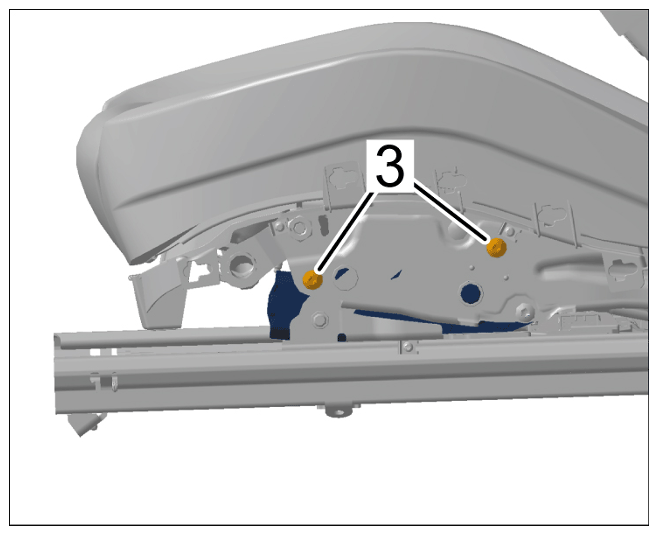

Screws securing seat-surface extension to seat frame	Item 3	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing seat-surface extension to seat frame

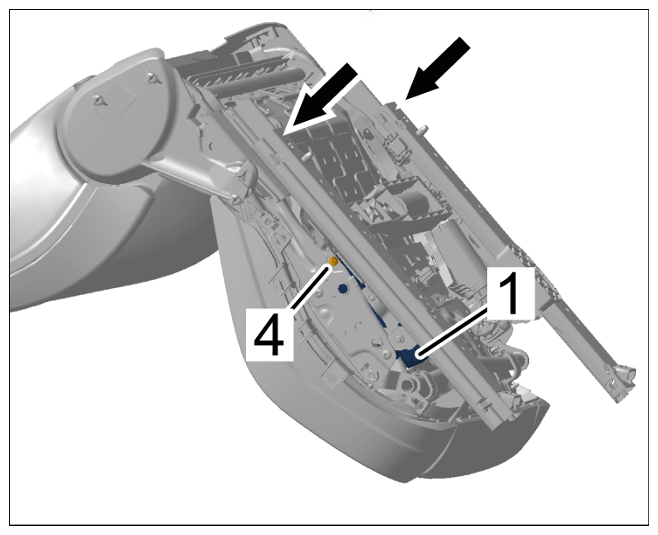

Screws securing motor for seat-surface extension to seat frame	Item 4	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing motor for seat-surface extension to seat frame

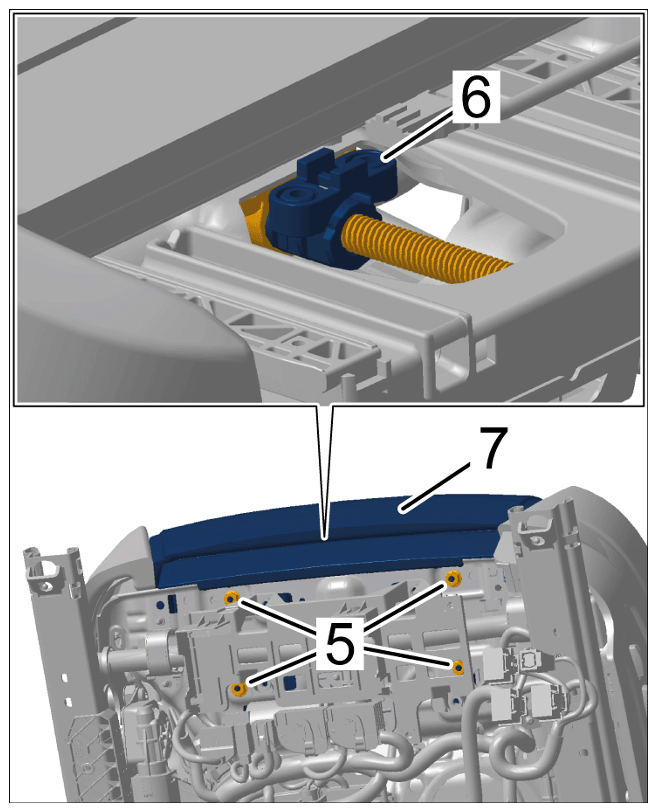

Nuts securing front seat-surface extension to seat frame	Item 5	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing front seat-surface extension to seat frame

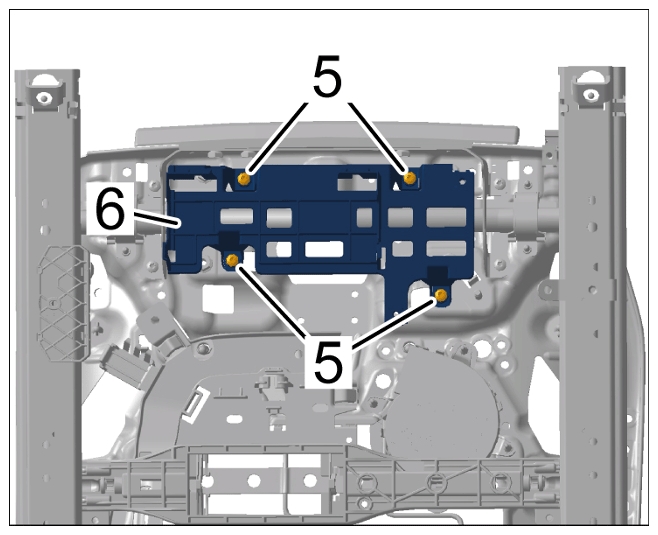

Screw on holder for memory seat adjustment control unit	Item 5	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on holder for memory seat adjustment control unit

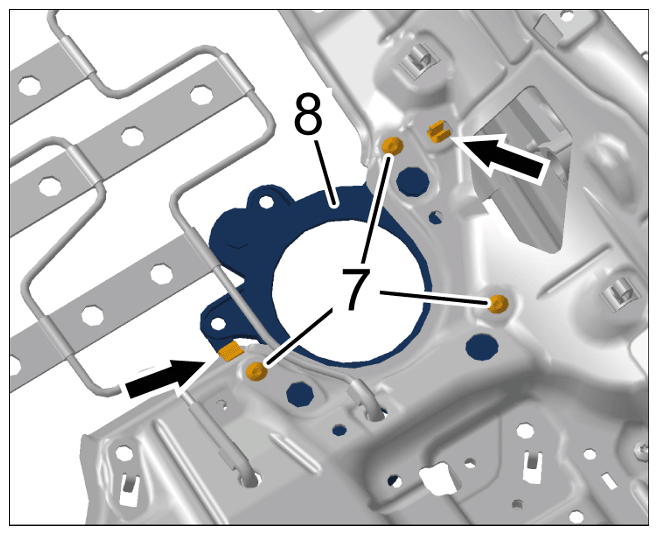

Screw for suction fan holder	Item 7	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on suction fan holder

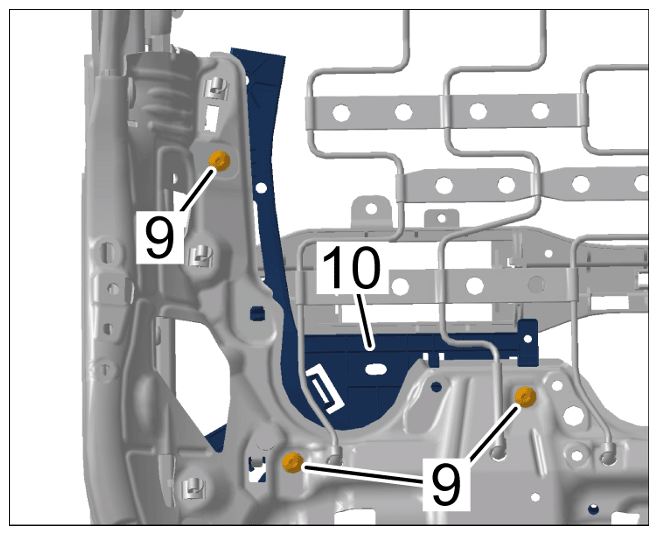

Screw on mounting plate for electric plug connections	Item 9	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on mounting plate for electric plug connections

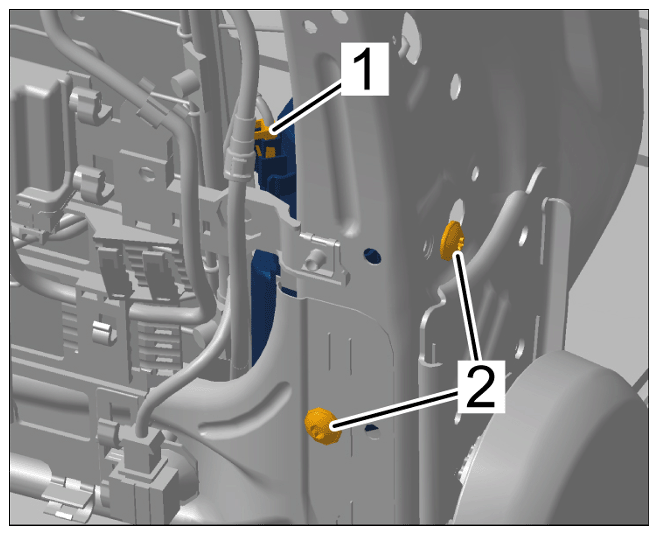

Screw securing motor for air cushion to backrest	Item 2	Tightening torque	1 Nm (0.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing motor for air cushion to backrest

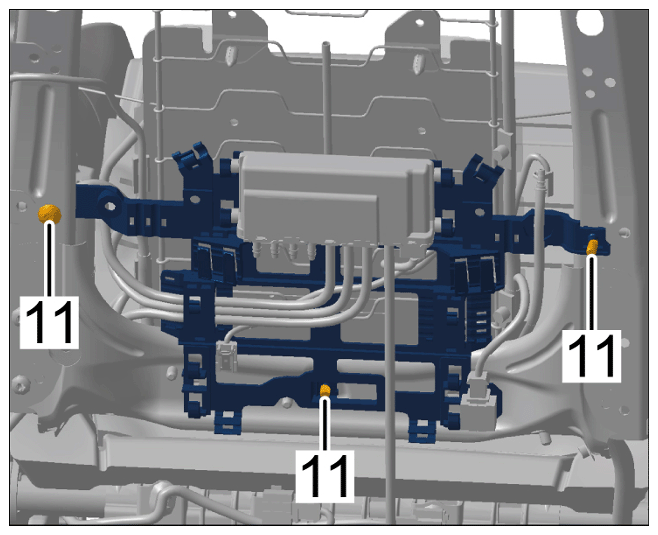

Screw securing valve block holder to backrest frame	Item 11	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing valve block holder to backrest frame

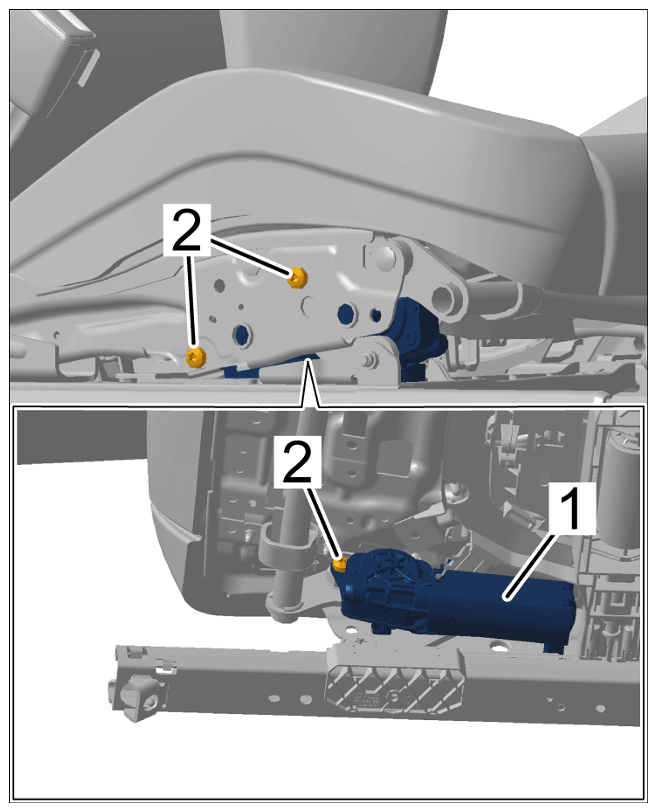

Screws on motor for front height adjustment	Item 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for front height adjustment
Screws on motor for rear height adjustment	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for rear height adjustment
Screw on motor for rear height adjustment	Item 4	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on motor for rear vertical adjustment

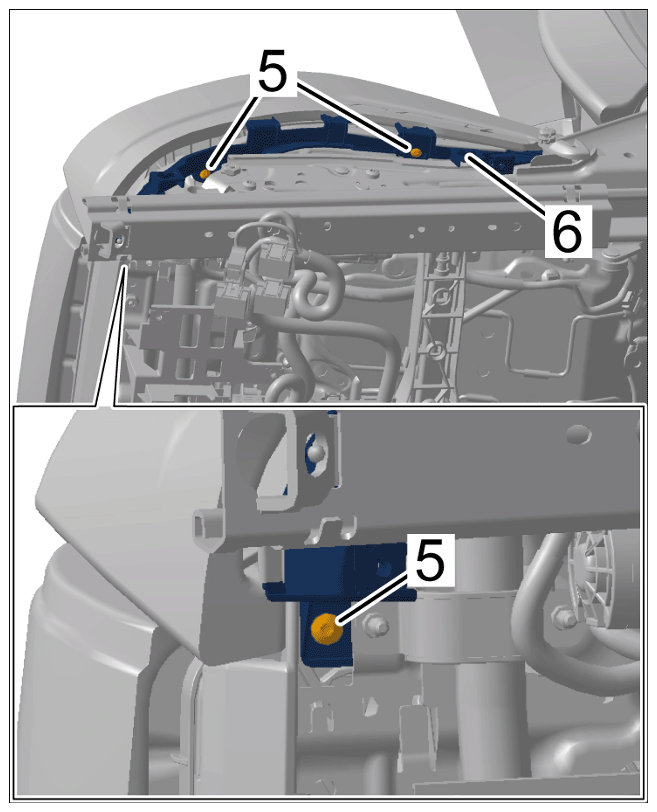

Screw securing holder for trim panel on control panel to front seat	Item 5	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for trim panel on control panel to front seat

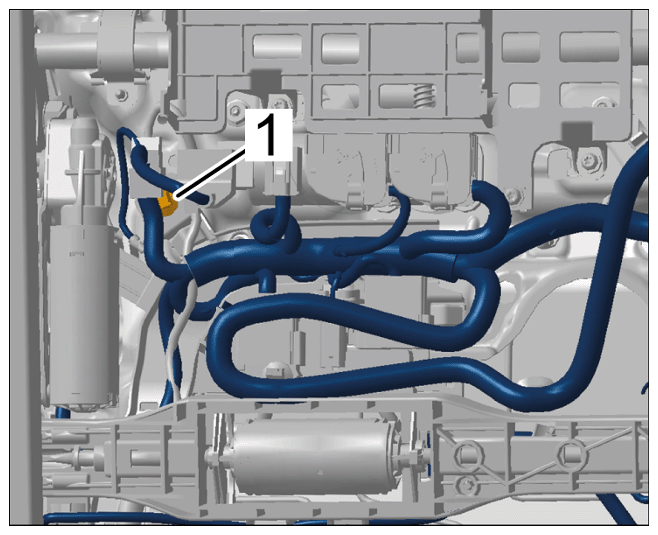

Screw on ground line	Item 1	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on ground line

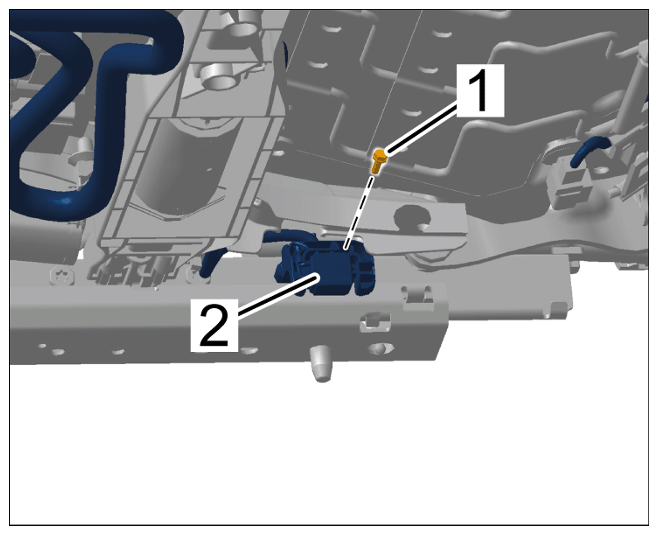

Screw securing contact switch to seat rail	Item 1	Tightening torque	1.2 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing contact switch to seat rail
