Technical Values - Dashboard Mouldings/Trim Panels

Location	Description	Type	Basic value	Tolerance

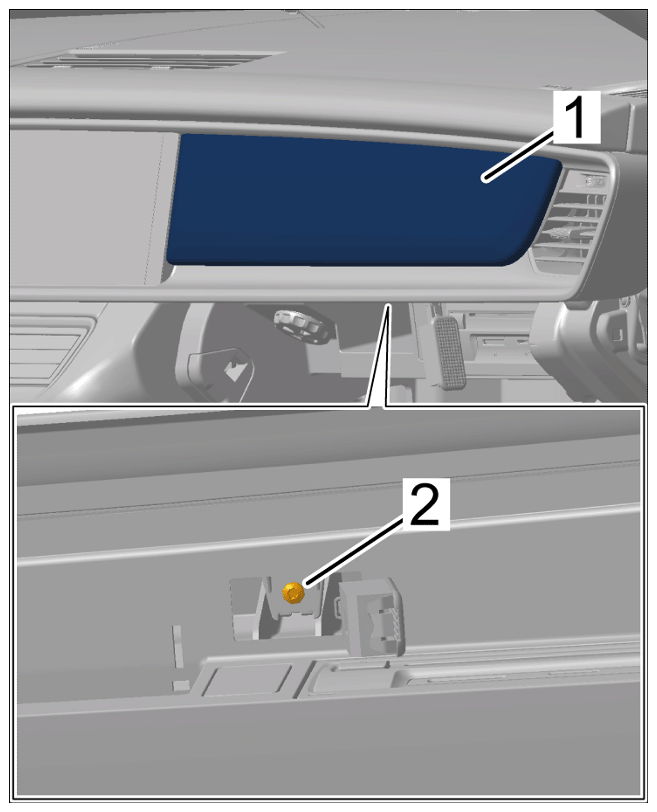

Screw for dashboard trim panel (on passenger's side)	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for dashboard trim panel (on passenger's side)

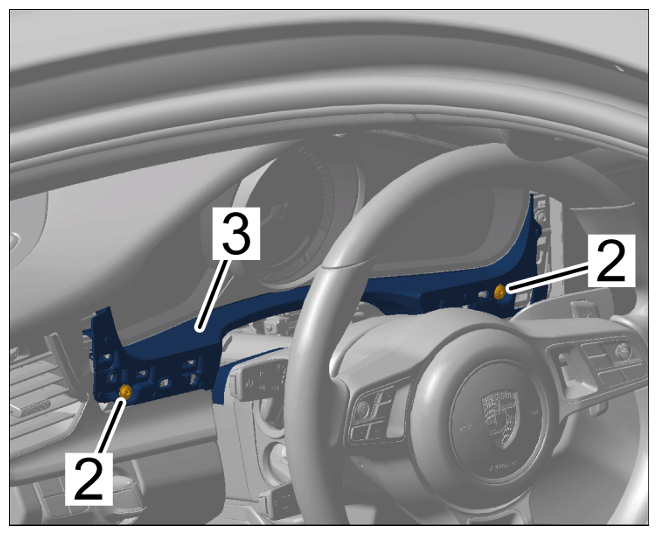

Screws for instrument cluster trim panel	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for instrument cluster trim panel

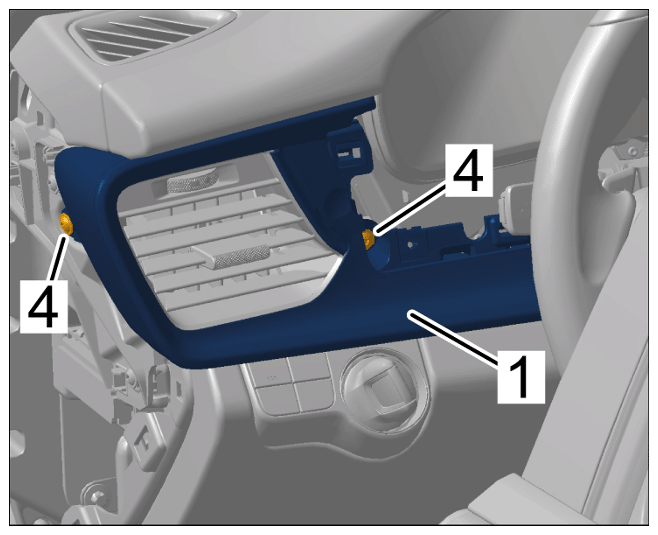

Screws for dashboard moulding (on driver's side)	Item 4	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding (on driver's side)

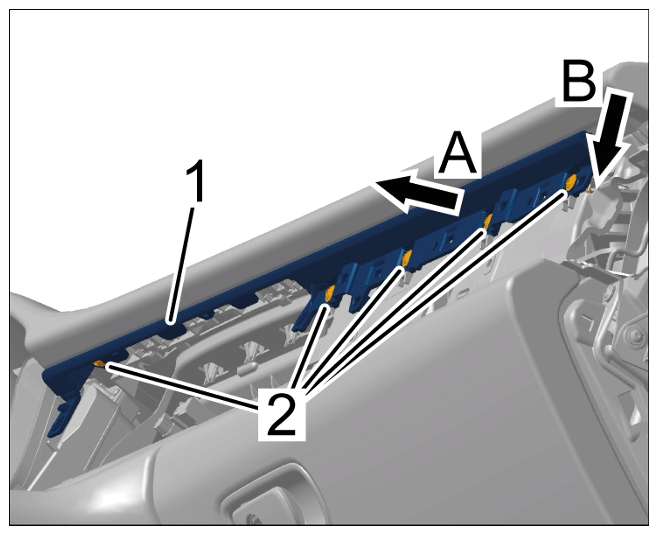

Screws for dashboard moulding on passenger's side (upper)	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (upper)

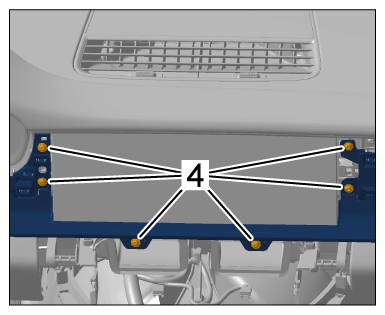

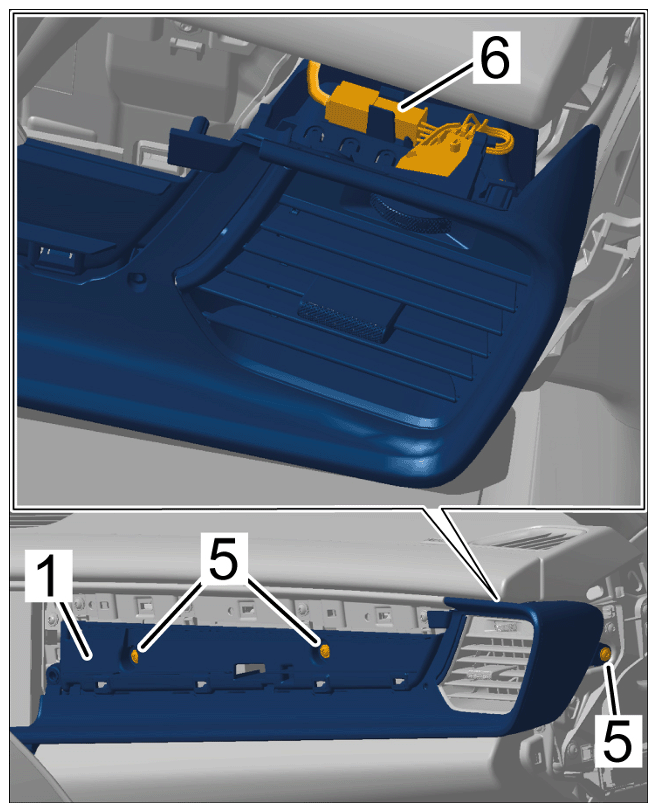

Screws for dashboard moulding on passenger's side (lower)	Items 4 and 5	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (lower)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (lower)
