Technical Values: Overview

Location	Des...	Type	Basic val...	Toleranc...

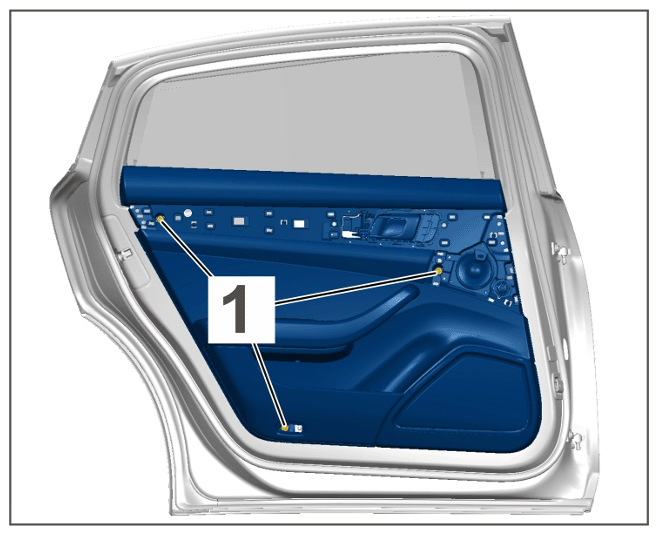

Rear door panel	Item 1	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

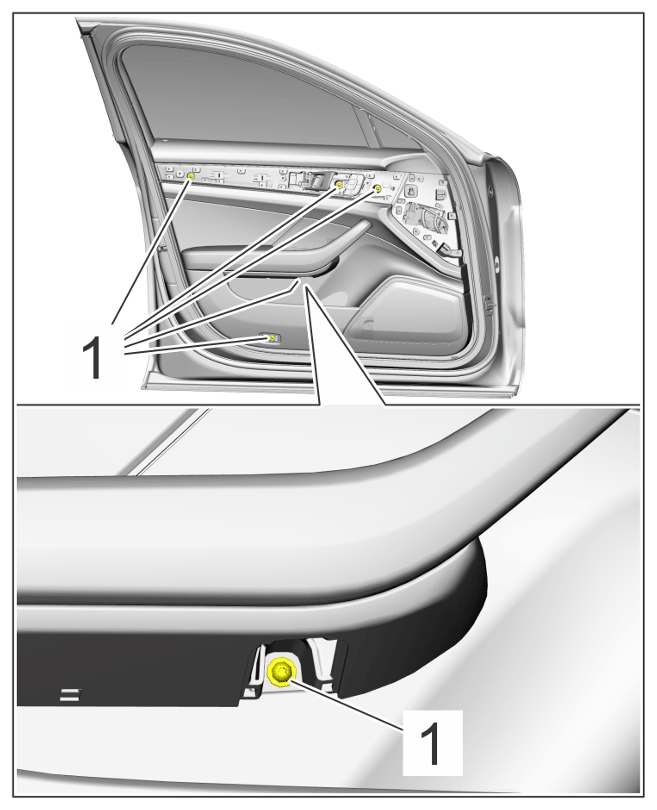

Door panel	Item 1	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.5 Nm (0.3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for door panel

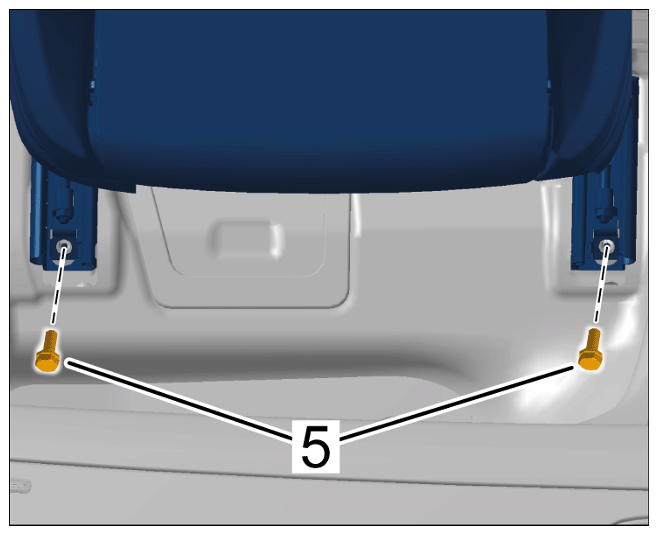

Screws on front seat rail	Item 5	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front seat rail screws

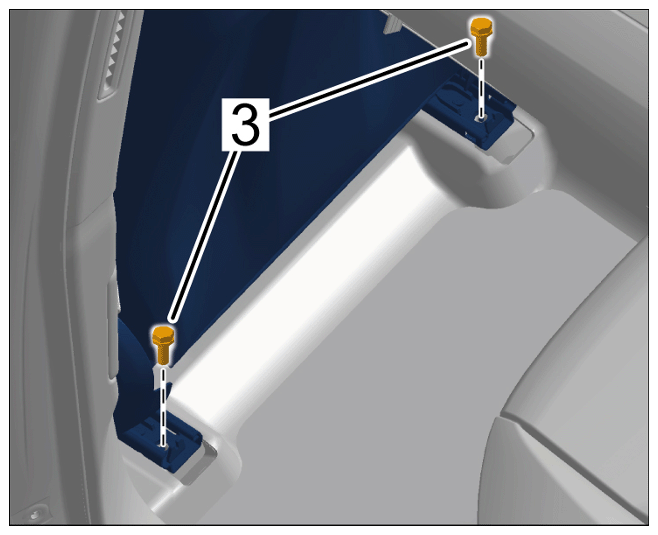

Screws on rear seat rail	Item 3	Tightening torque	50 Nm (37 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear seat rail screws

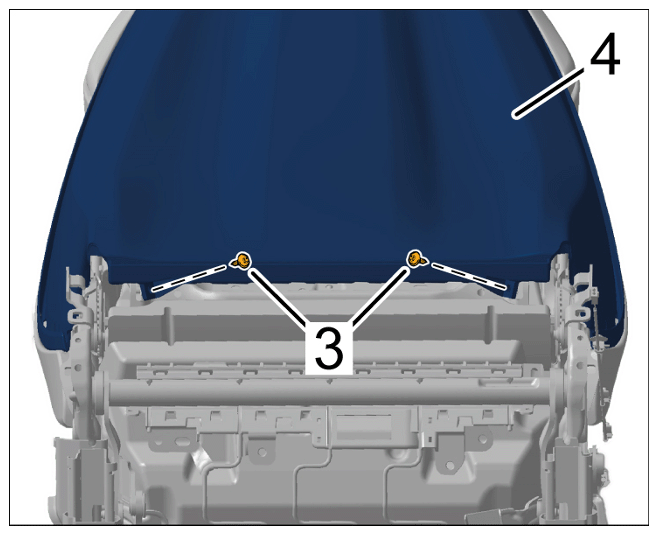

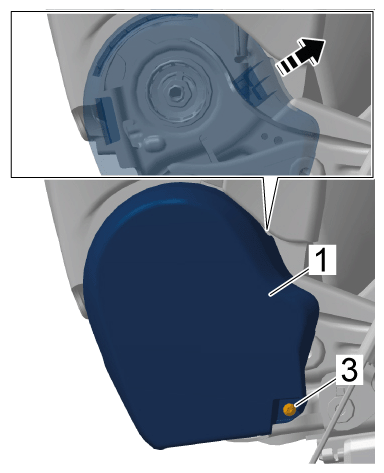

Screws for backrest cover	Item 3	Tightening torque	5 Nm (3.5 ftlb.)	+/- 2.5 Nm (1.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for backrest cover

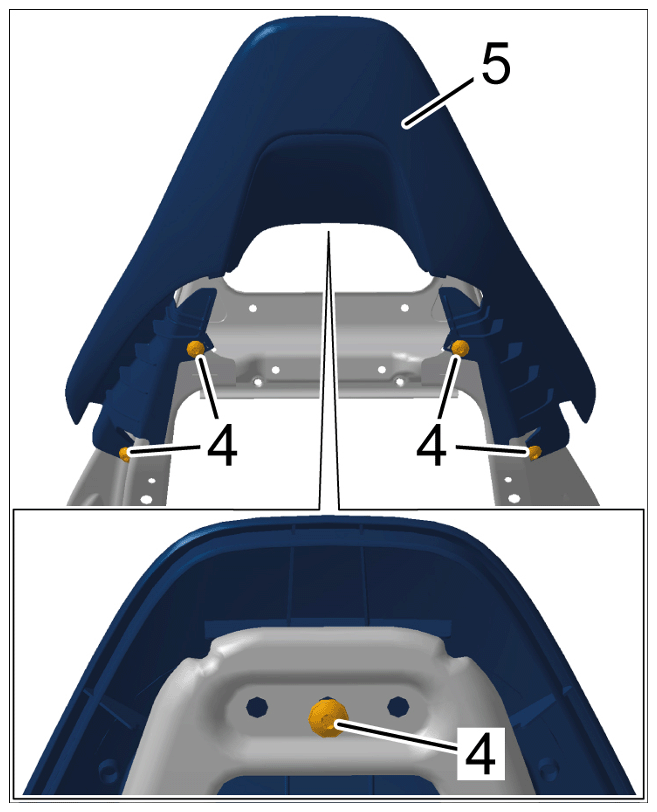

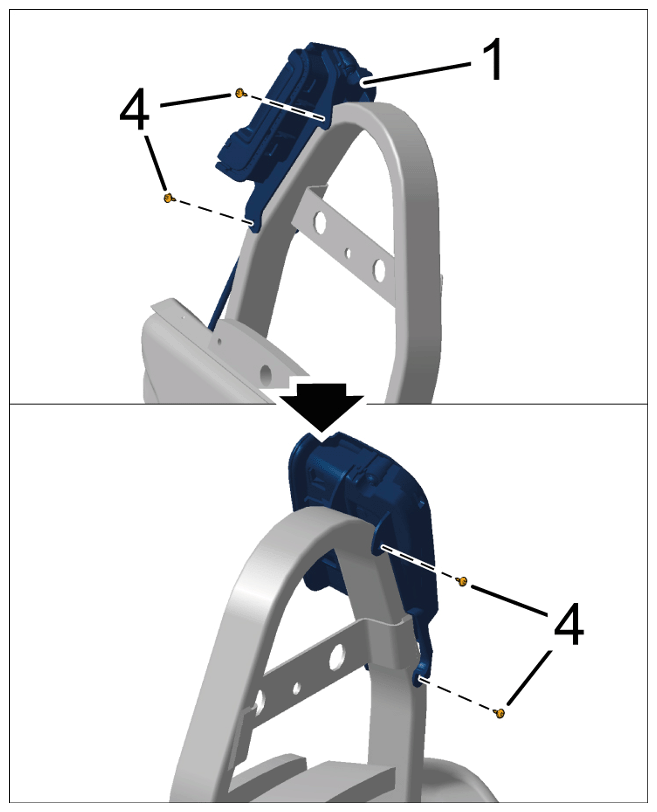

Screws securing headrest to seat backrest frame	Item 4	Tightening torque	5 Nm (3.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing headrest to seat backrest frame

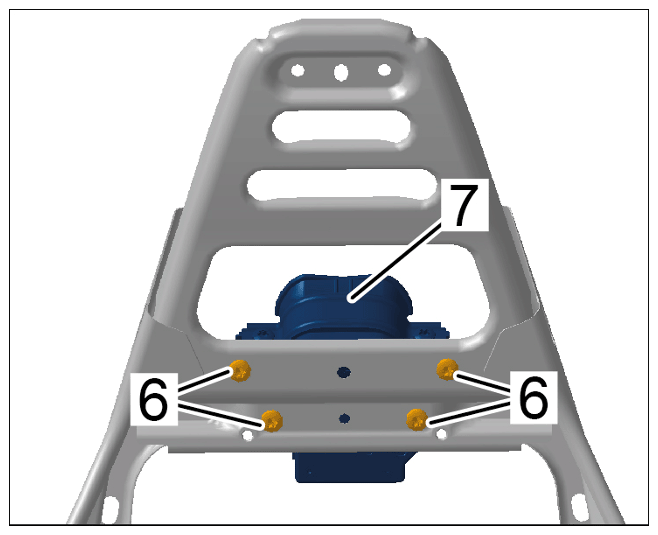

Screws securing Rear Seat Entertainment holder to seat backrest frame	Item 6	Tightening torque	4.2 Nm (3.2 ftlb.)	+/- 0.1 Nm (0.07 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing Rear Seat Entertainment holder to seat backrest frame

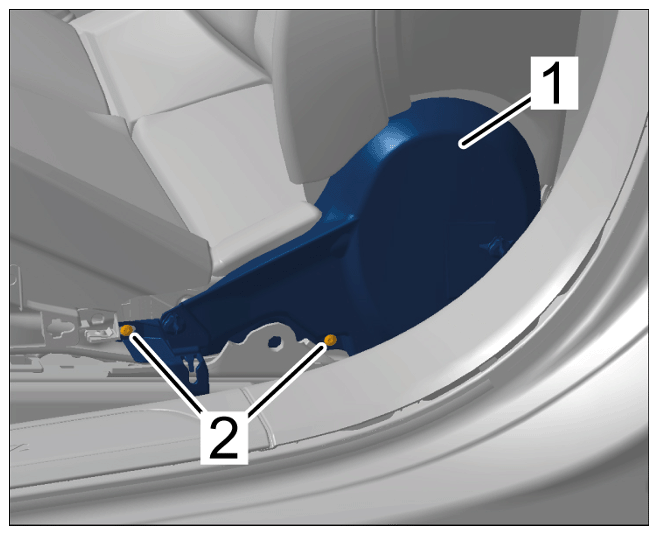

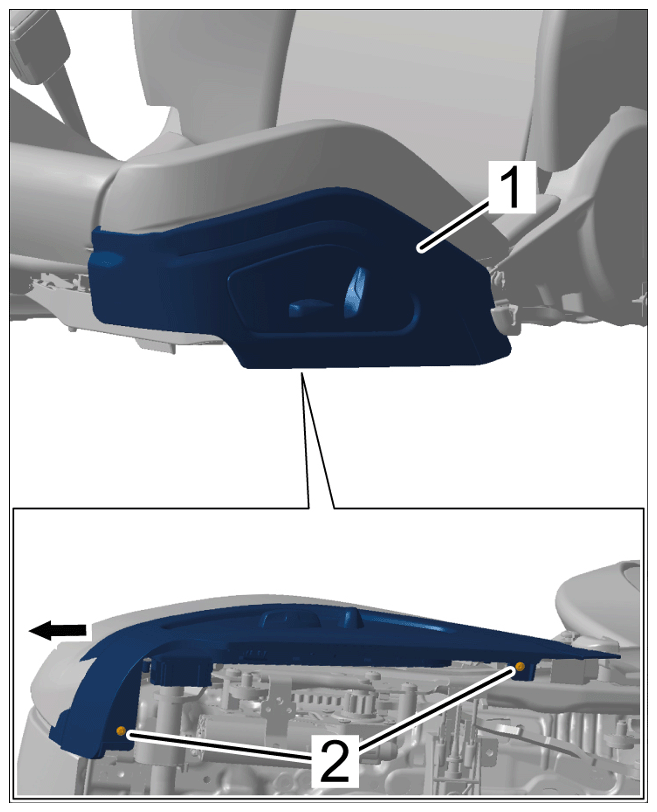

Screws for front outer seat trim panel	Item 2	Tightening torque	2.2 Nm (1.6 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front outer seat trim panel
Screws for trim panel on control panel	Item 2	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.2 Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for trim panel on control panel

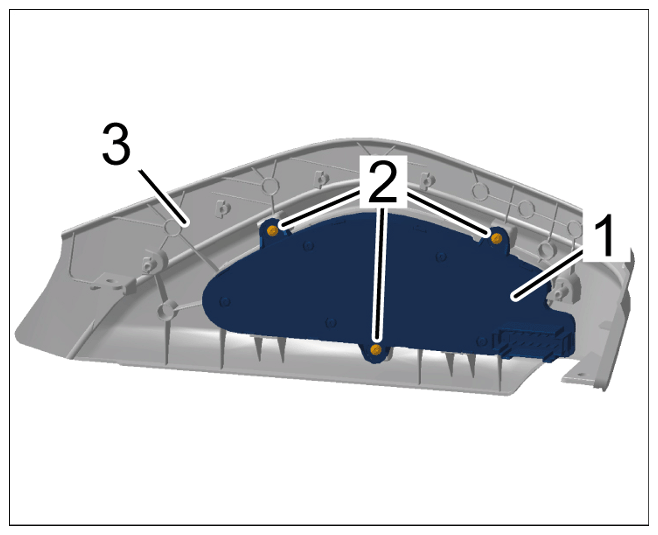

Screws for front seat adjustment switch	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for front seat adjustment switch
Screws for front inner seat trim panel	Item 3	Tightening torque	2.2 Nm (1.6 ftlb.)	+/- 0.2 (0.1 ftlb.) mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for front inner seat trim panel

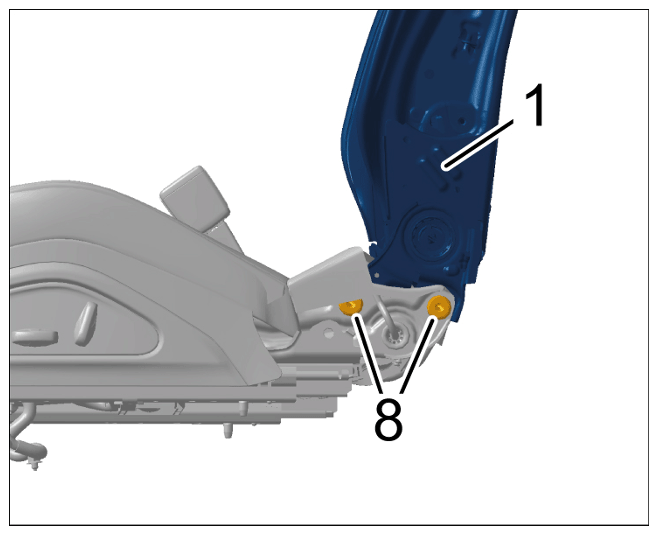

Screws securing backrest frame to seat frame	Item 8	Tightening torque	44 Nm (33 ftlb.)	+/- 0.7 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing backrest frame to seat frame

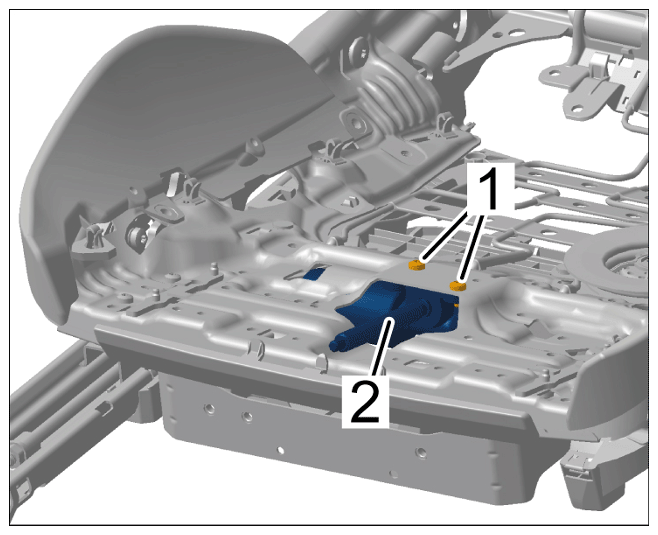

Screw on motor for front seat-surface extension	Item 1	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for front seat-surface extension
Upper screw on side bolster	Item 3	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper screws on side bolster
Lower screw on side bolster	Item 3	Tightening torque	2 Nm (1.5 ftlb.)	+/- 0.1 (0.07 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower screws on side bolster

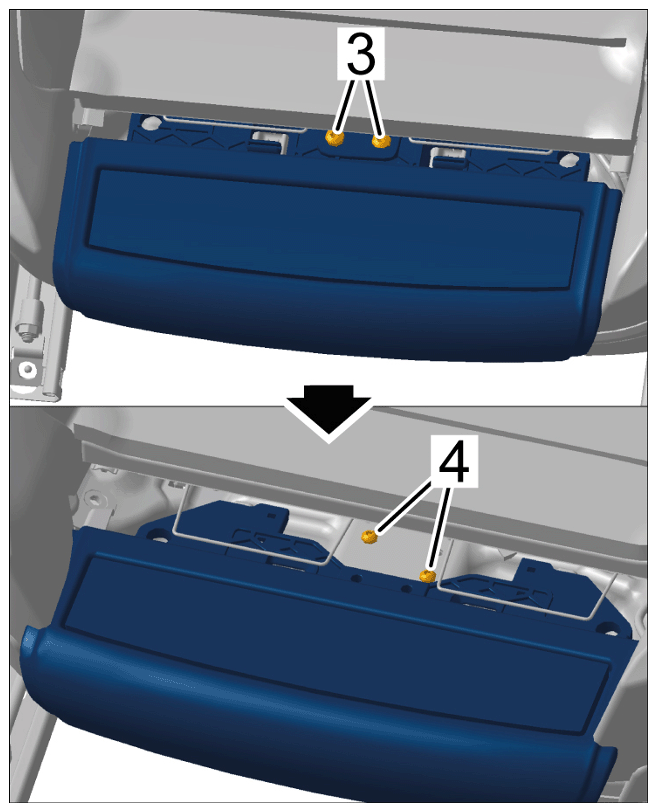

Screws securing seat-surface extension to seat frame	Item 3	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing seat-surface extension to seat frame
Screws securing motor for seat-surface extension to seat frame	Item 4	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing motor for seat-surface extension to seat frame

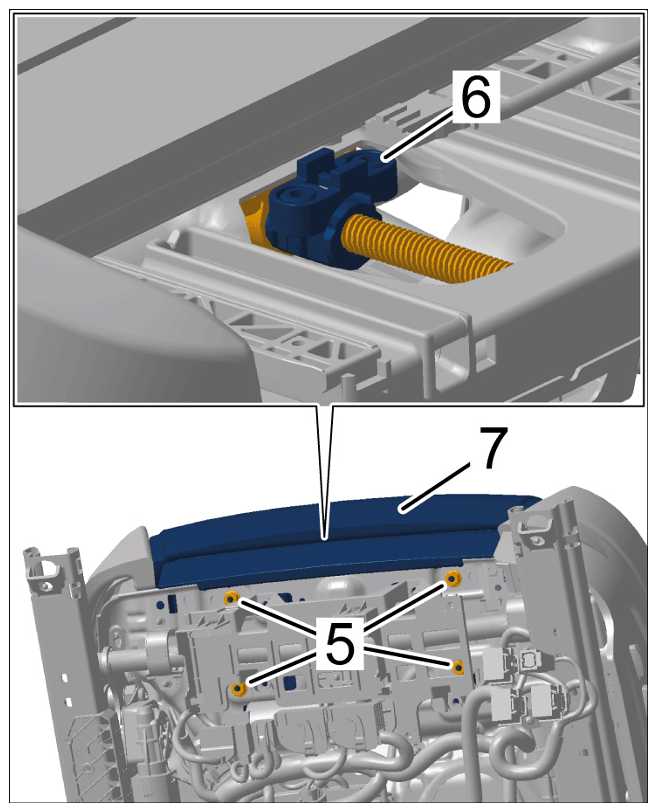

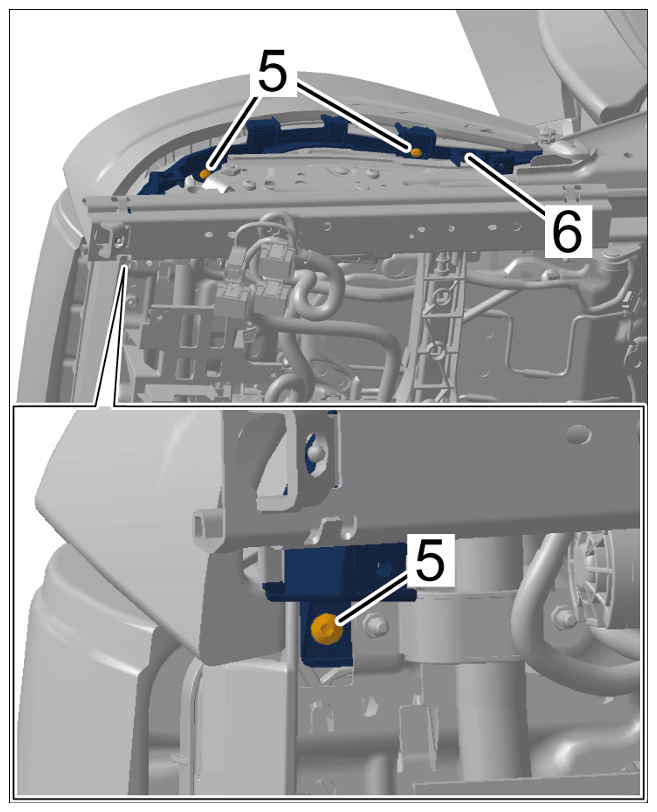

Nuts securing front seat-surface extension to seat frame	Item 5	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing front seat-surface extension to seat frame

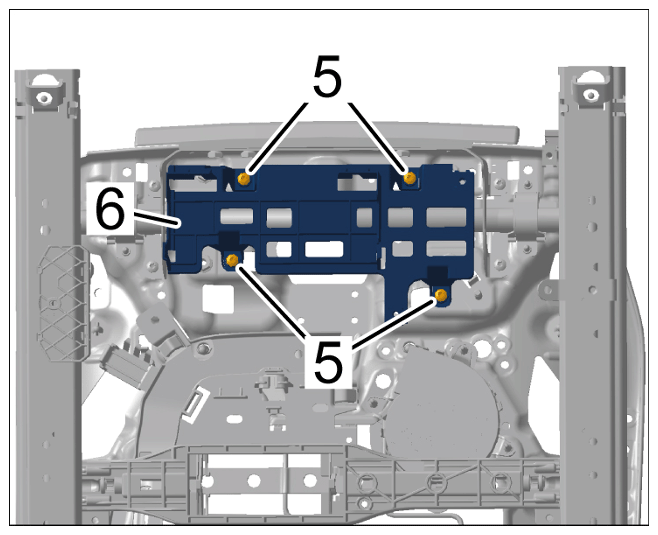

Screw on holder for memory seat adjustment control unit	Item 5	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on holder for memory seat adjustment control unit

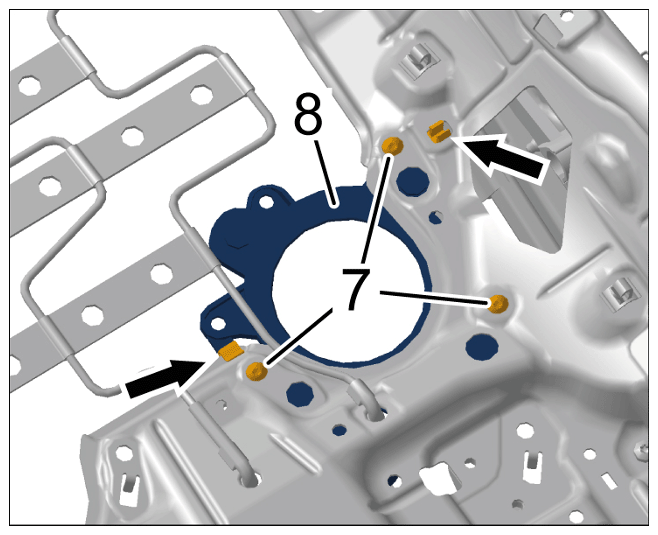

Screw for suction fan holder	Item 7	Tightening torque	3 Nm (2 ftlb.)	+/- 0.2 (0.1 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on suction fan holder

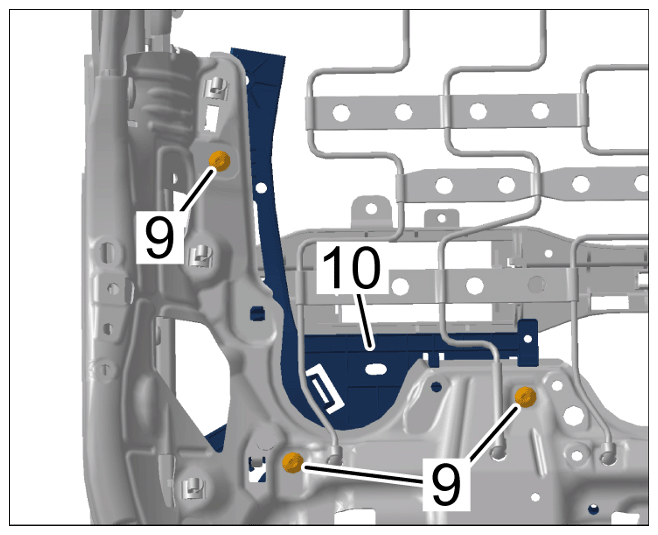

Screw on mounting plate for electric plug connections	Item 9	Tightening torque	3 Nm (2 ftlb.)	+/- 0.5 (0.4 ftlb.) %
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on mounting plate for electric plug connections

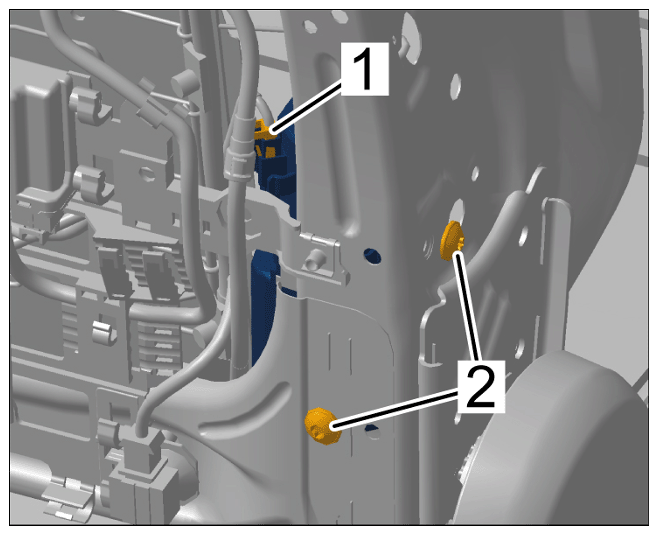

Screw securing motor for air cushion to backrest	Item 2	Tightening torque	1 Nm (0.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing motor for air cushion to backrest

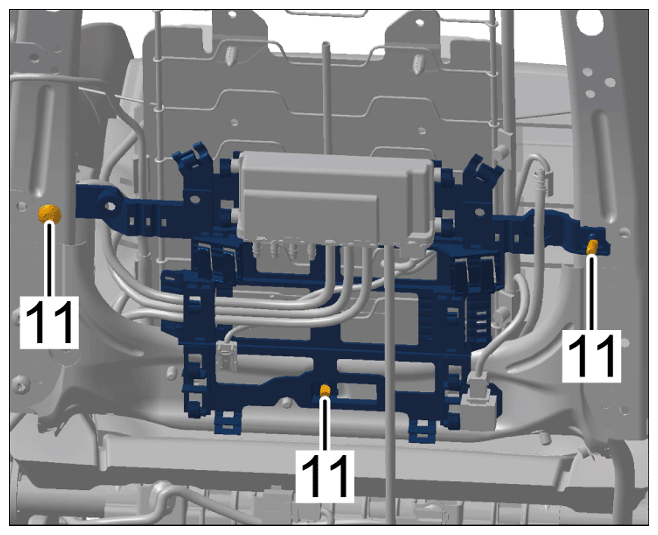

Screw securing valve block holder to backrest frame	Item 11	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing valve block holder to backrest frame

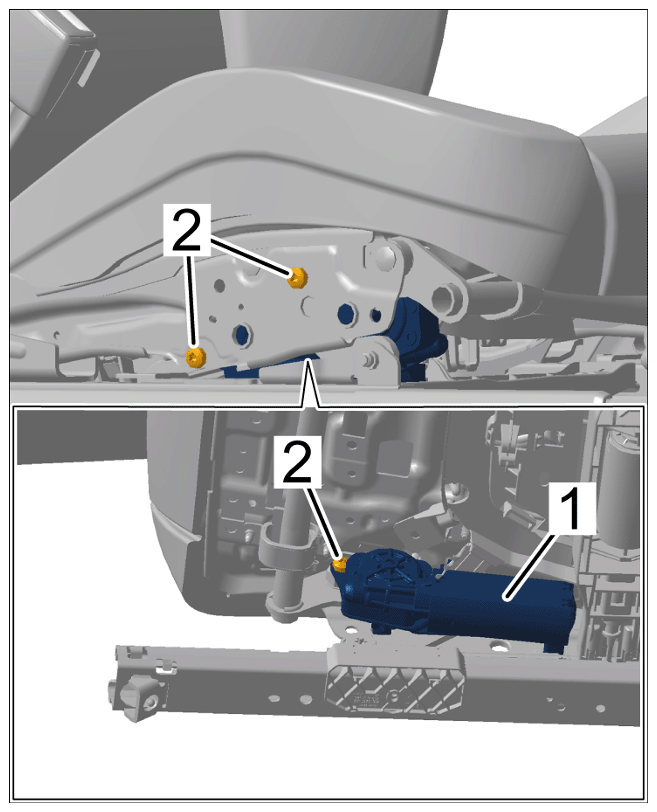

Screws on motor for front height adjustment	Item 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for front height adjustment

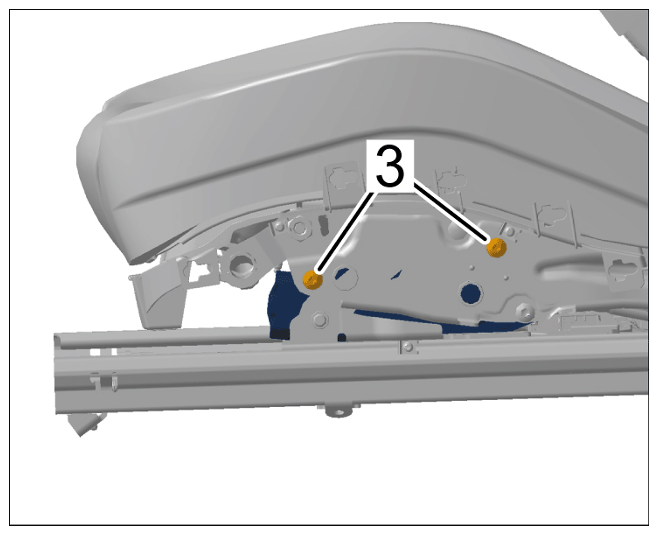

Screws on motor for rear height adjustment	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on motor for rear height adjustment
Screw on motor for rear height adjustment	Item 4	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on motor for rear vertical adjustment
Screw securing holder for trim panel on control panel to front seat	Item 5	Tightening torque	3.5 Nm (2.5 ftlb.)	+/- 0.2 Nm (0.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for trim panel on control panel to front seat

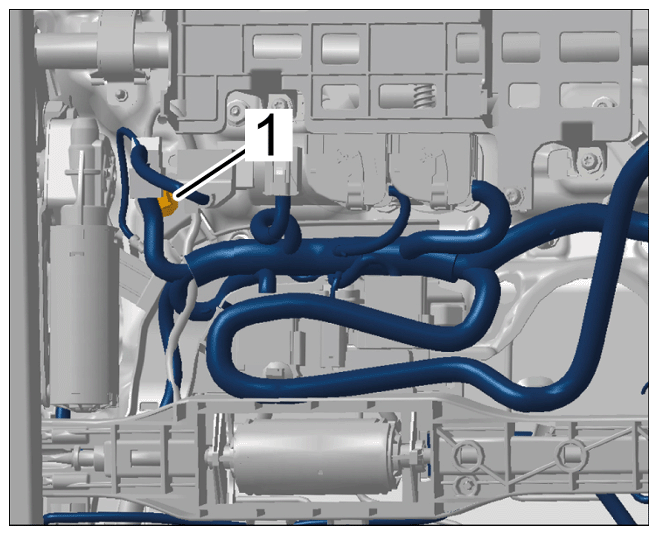

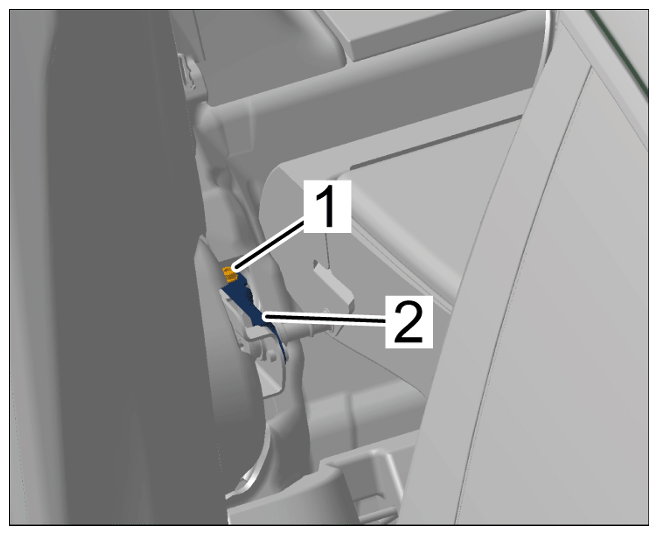

Screw on ground line	Item 1	Tightening torque	7 Nm (5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw on ground line

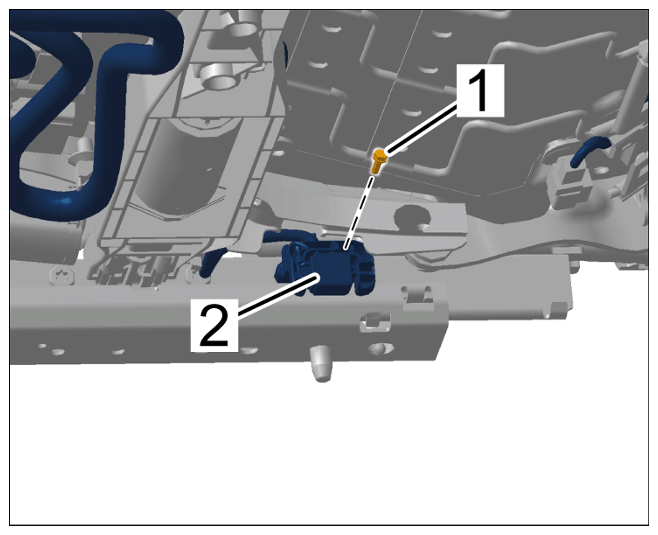

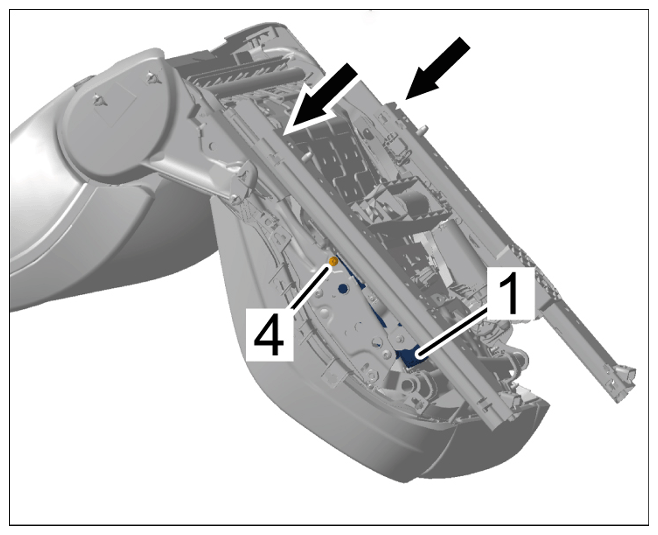

Screw securing contact switch to seat rail	Item 1	Tightening torque	1.2 Nm (0.7 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing contact switch to seat rail
Screws on backrest locking mechanism	Item 4	Tightening torque	3.2 Nm (2.2 ftlb.)	+/- 0.32 Nm (0.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for backrest locking mechanism

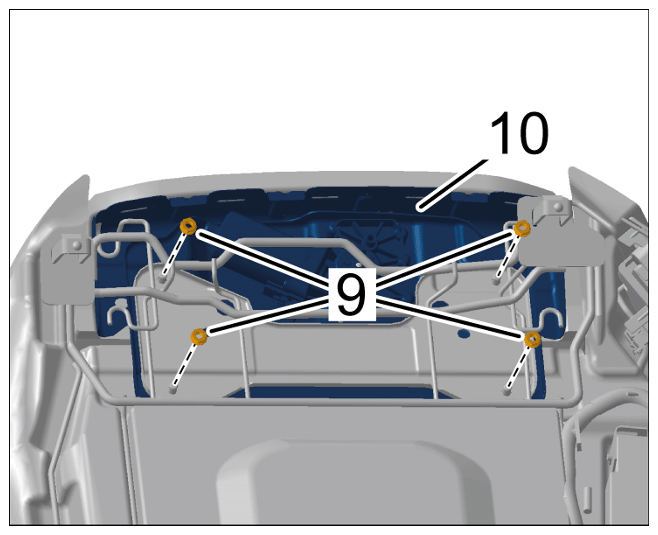

Nuts securing seat-surface extension to seat frame	Item 9	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing seat-surface extension to seat frame
Screw securing cover to load-through provision lock	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing cover to load-through provision lock

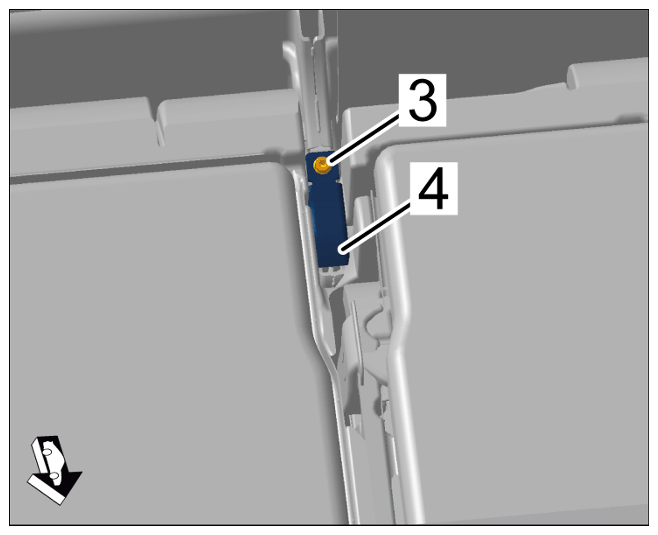

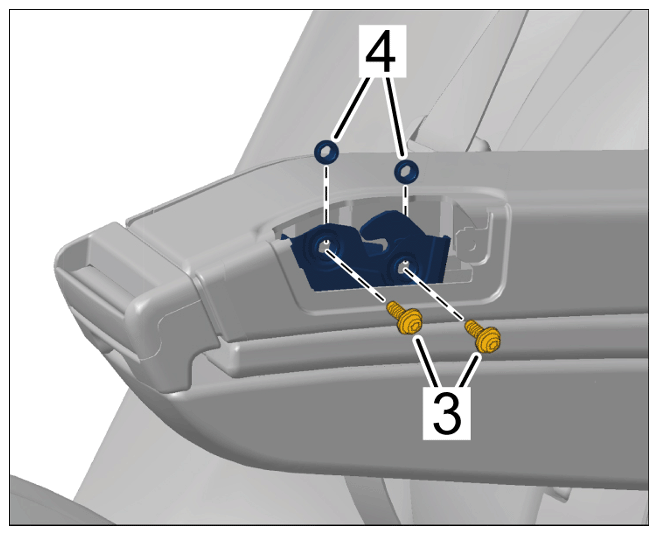

Screws securing load-through provision lock to load-through provision	Item 3	Tightening torque	20 Nm (15 ftlb.)	+/- 2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing load-through provision lock to load-through provision

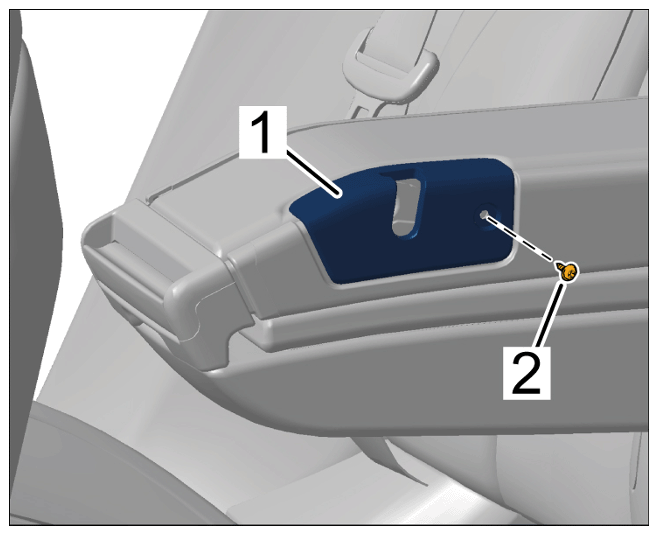

Screws for rear-backrest lock cover	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear-backrest lock cover

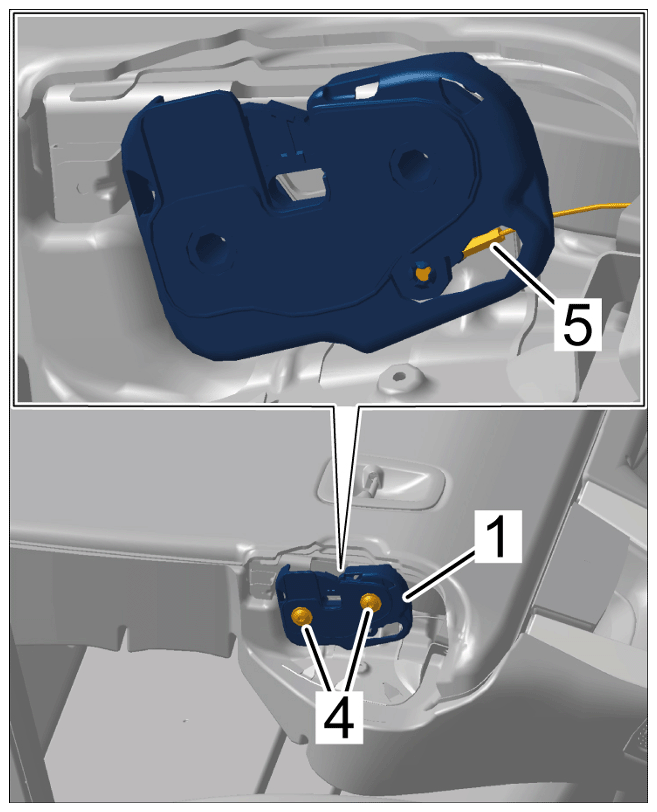

Screws for rear-backrest lock	Item 4	Tightening torque	24 Nm (18 ftlb.)	+/- 2.4 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for rear-backrest lock

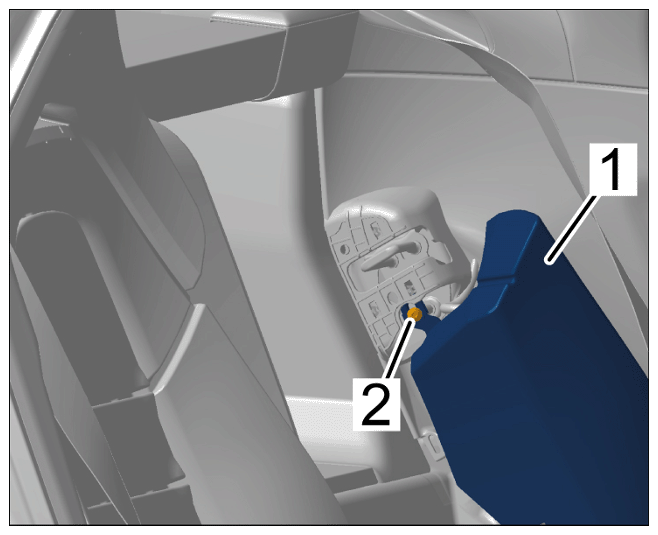

Screw for side cushion	Item 2	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for side cushion

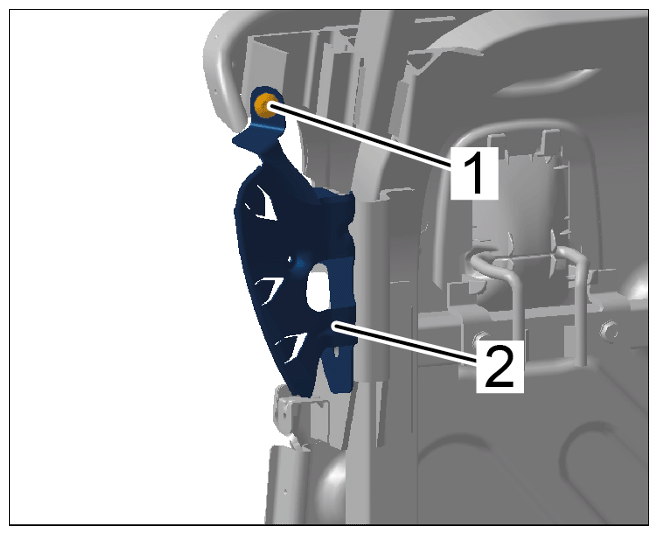

Screw securing side holder to backrest frame	Item 1	Tightening torque	6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing side holder to backrest frame

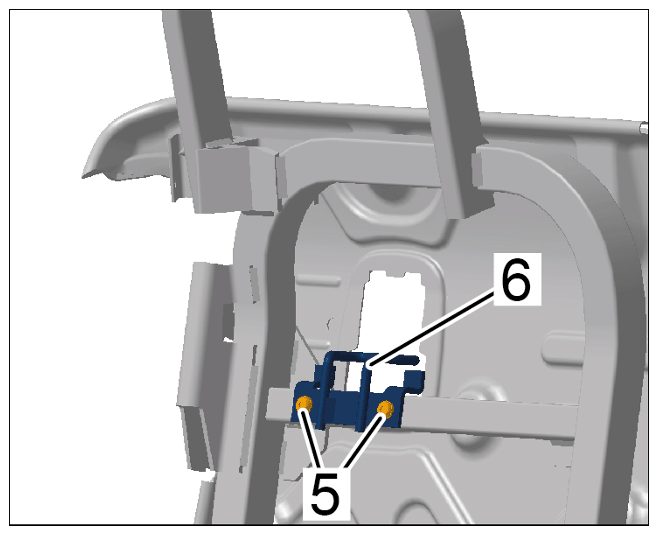

Screws securing clips to backrest frame	Item 5	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing clips to backrest frame

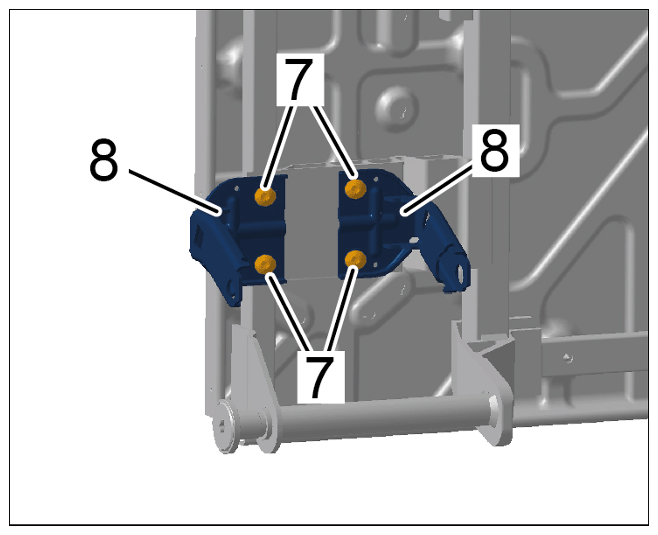

Screws for armrest holder	Item 7	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for armrest holder
Bolt securing load-through provision lock to backrest frame		Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Nut for backrest mount	Item 1	Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nut for backrest mount
Screw for securing clip on outside of vehicle	Item 1	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for securing clip on outside of vehicle
Screw for securing clip on centre of vehicle	Item 3	Tightening torque	10 Nm (7.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing securing clip on centre of vehicle

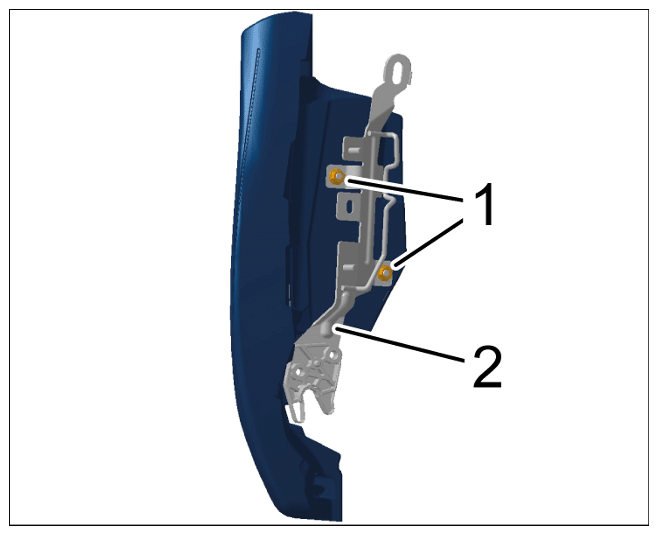

Nut on holder for side cushion padding	Item 1	Tightening torque	9.7 Nm (7.5 ftlb.)	+/- 1 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts on holder for side cushion padding

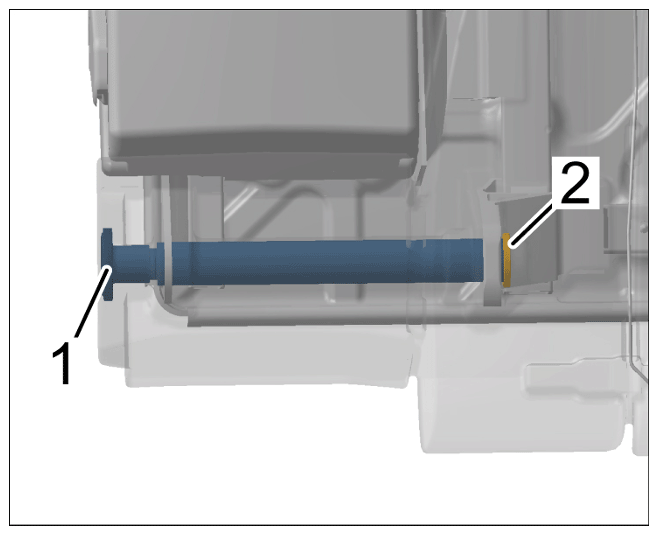

Bearing pin securing load-through provision to backrest	Item 1	Tightening torque	50 Nm (37 ftlb.)	+/- 5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bearing pin securing load-through provision to backrest
Screw for dashboard trim panel (on passenger's side)	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for dashboard trim panel (on passenger's side)

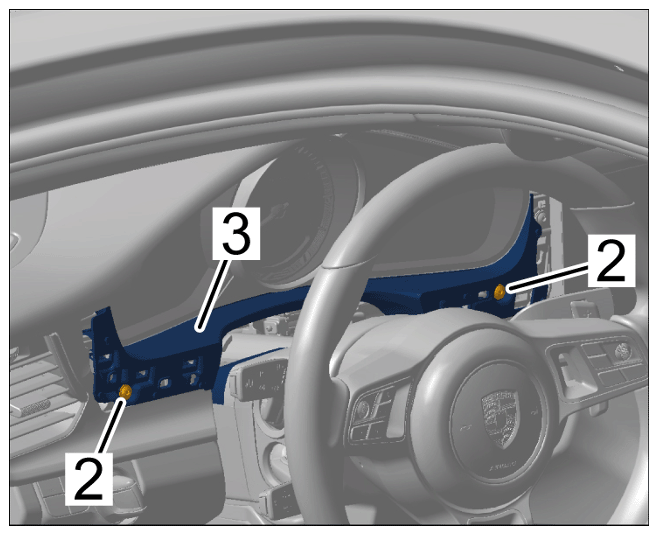

Screws for instrument cluster trim panel	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for instrument cluster trim panel

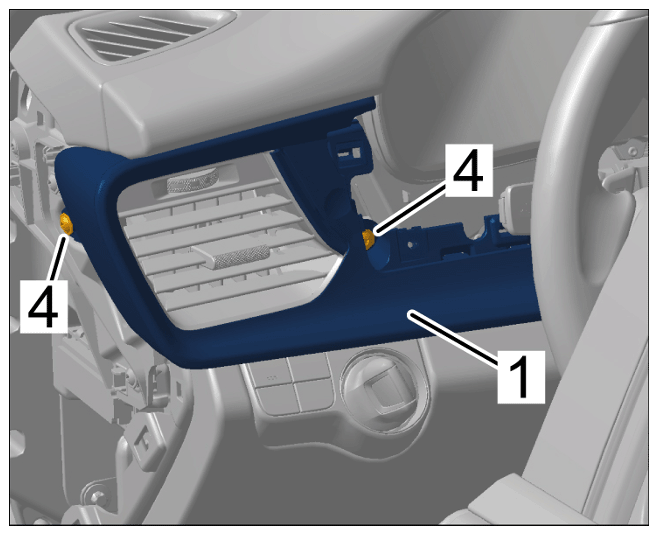

Screws for dashboard moulding (on driver's side)	Item 4	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding (on driver's side)

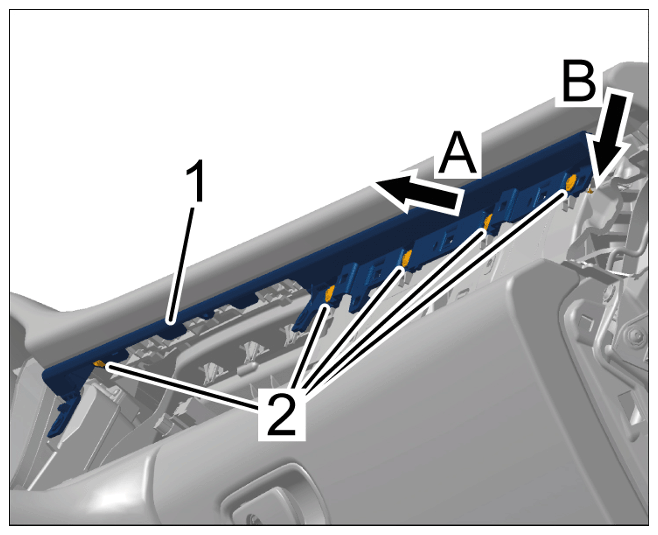

Screws for dashboard moulding on passenger's side (upper)	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (upper)

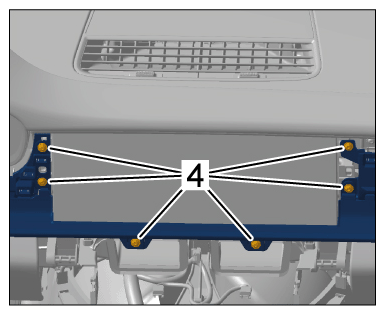

Screws for dashboard moulding on passenger's side (lower)	Items 4 and 5	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (lower)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for dashboard moulding on passenger's side (lower)
Screws for lower dashboard trim panel	Item 1	Tightening torque	13 Nm (9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower dashboard trim panel
Screws for lower dashboard trim panel	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lower dashboard trim panel

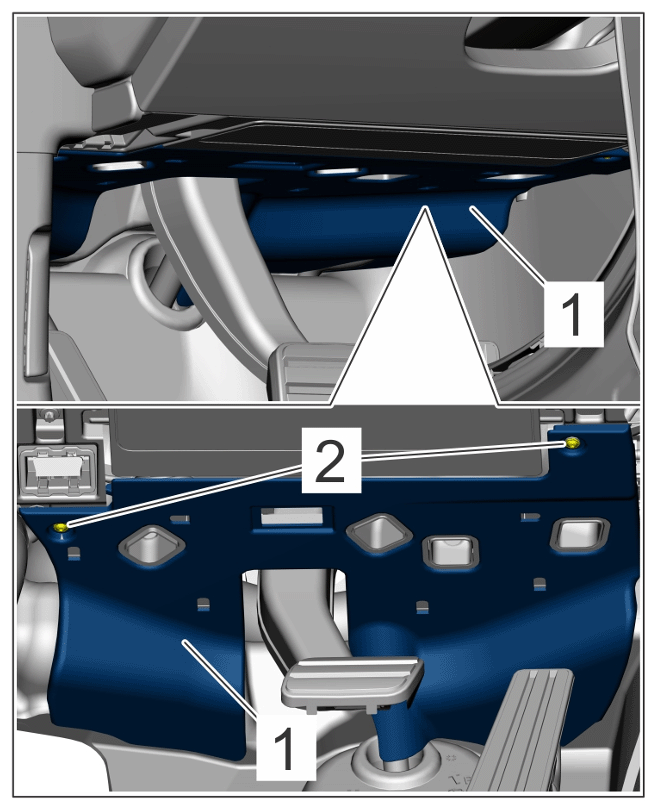

Screws securing cover under dashboard	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing cover under dashboard

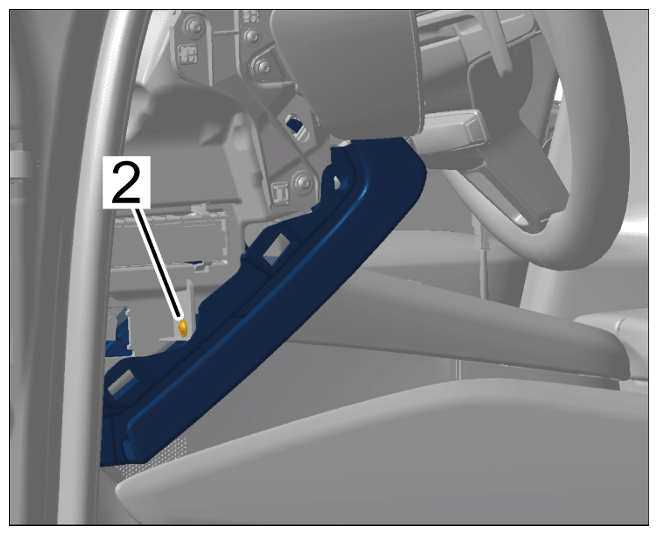

Screw for side dashboard trim panel	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for side dashboard trim panel

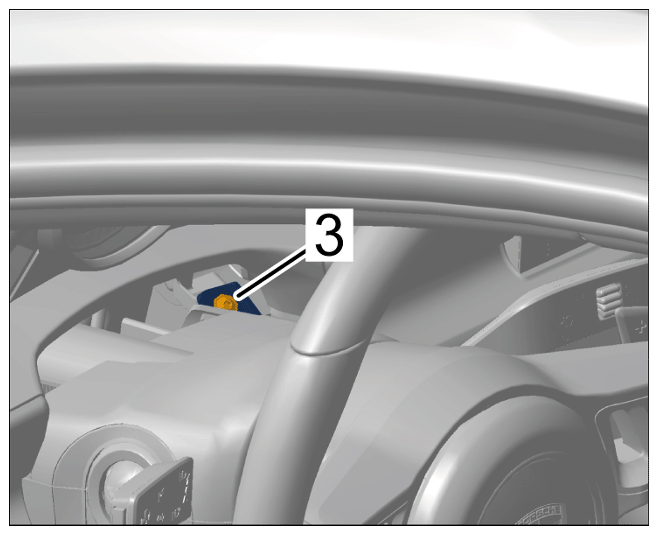

Screw securing upper dashboard trim panel to steering column	Item 3	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing upper dashboard trim panel to steering column

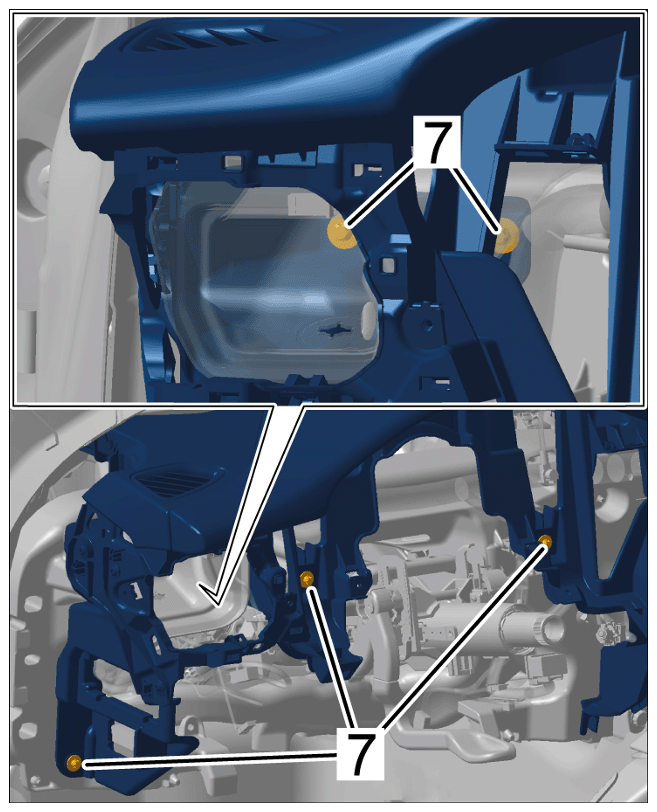

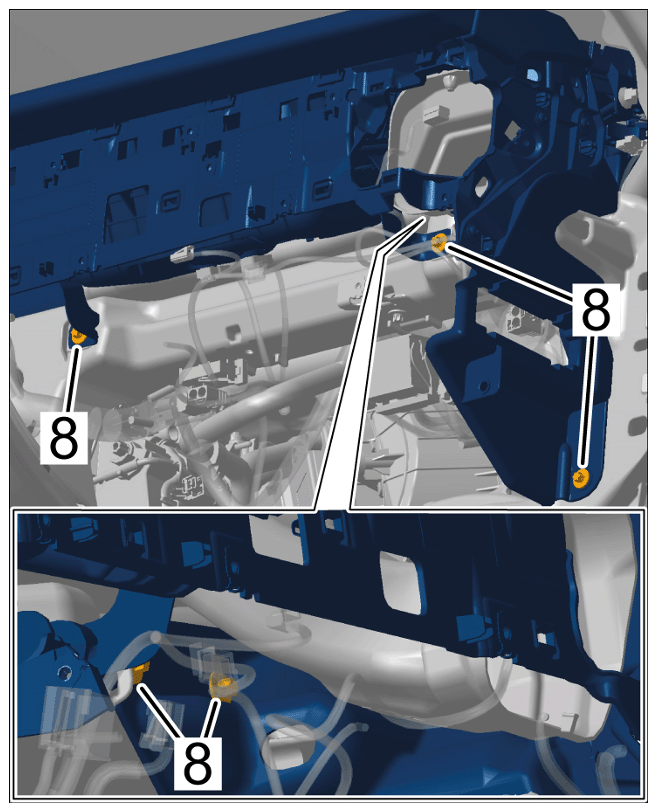

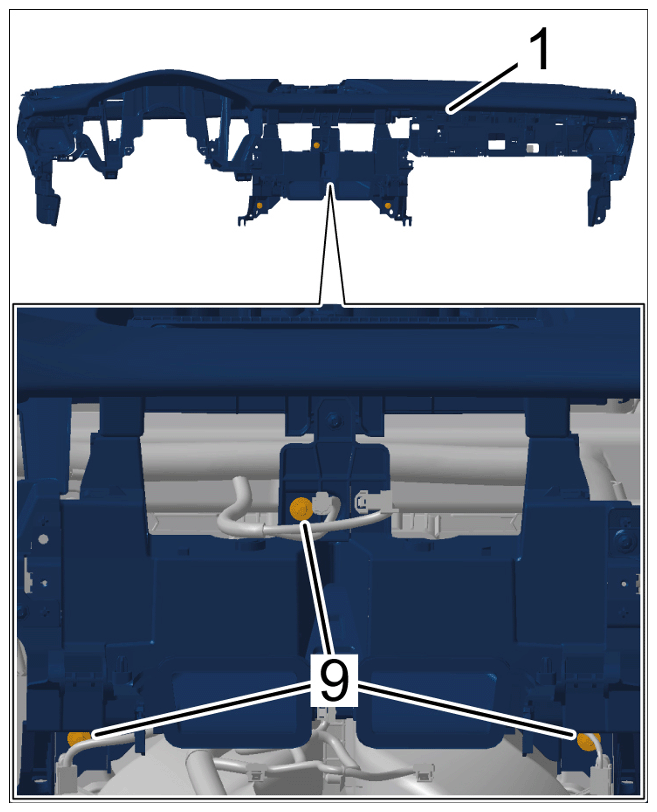

Screws securing dashboard to bracket	Items 7, 8 and 9	Tightening torque	13 Nm (9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing dashboard to bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing dashboard to bracket
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing dashboard to bracket
Screws for steering column casing	Item 4	Tightening torque	3 Nm (2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for steering column casing

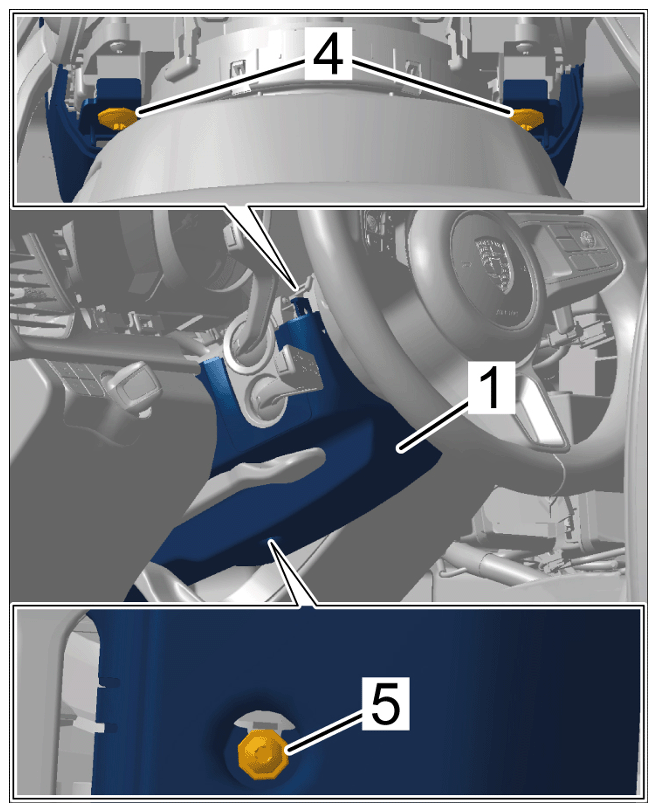

Screw for steering column casing	Item 5	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for steering column casing

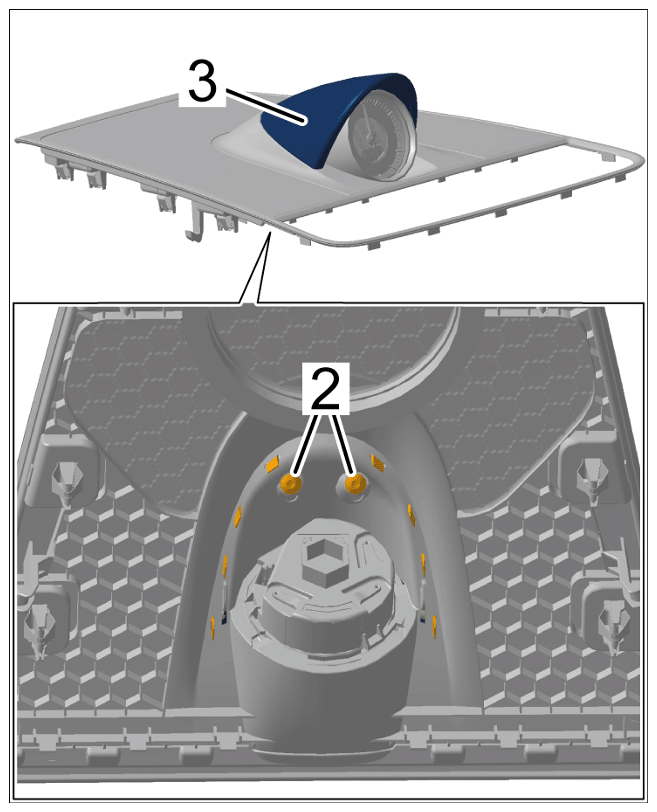

Screws for stopwatch cover	Item 2	Tightening torque	1.2 Nm (0.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing stopwatch cover

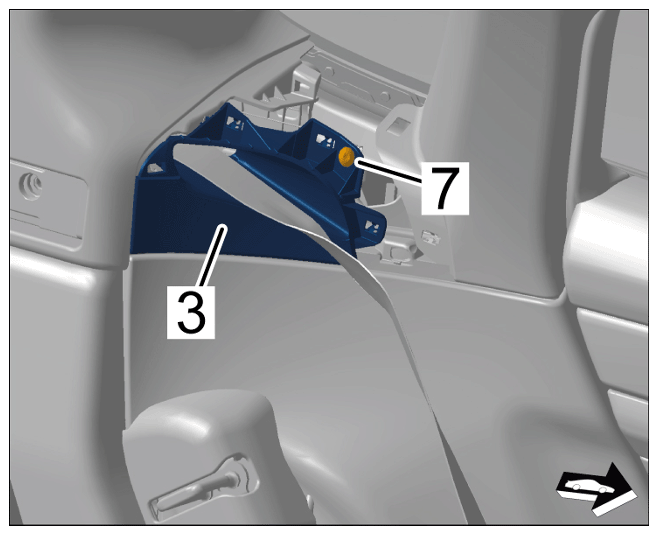

Screw for belt guide trim on Cpillar	Item 7	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for belt guide trim on C-pillar

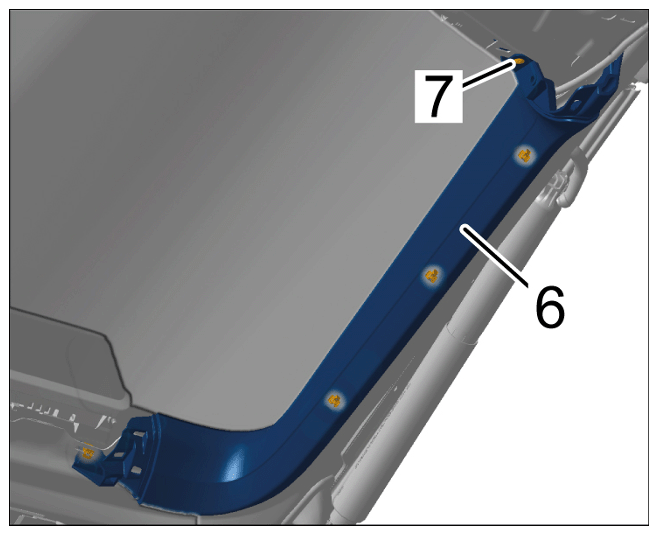

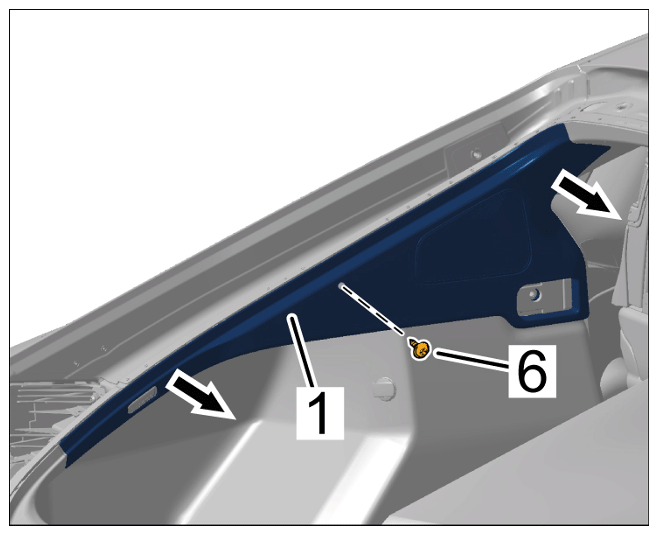

Screws for D-pillar trim panel	Items 2 and 6	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel

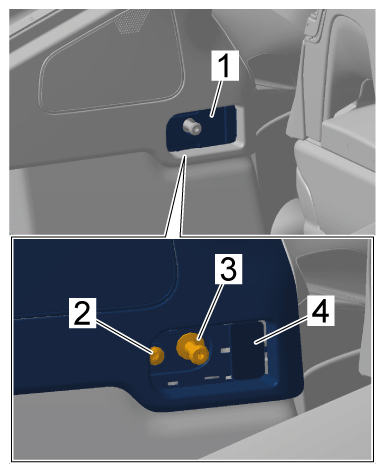

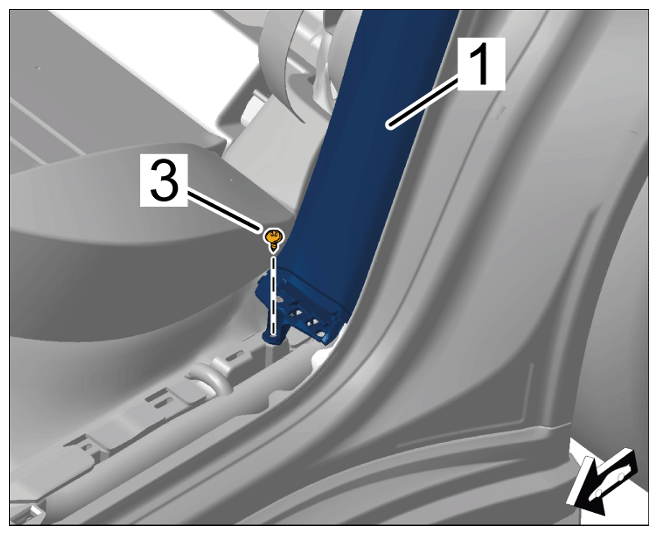

Bolts on D-pillar trim panel	Item 3	Tightening torque	12.5 Nm (9.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel
Screws for belt collar holder on D-pillar	Item 2	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for belt collar holder on D-pillar
Screws for D-pillar trim panel bracket	Item 2	Tightening torque	5.4 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for D-pillar trim panel bracket

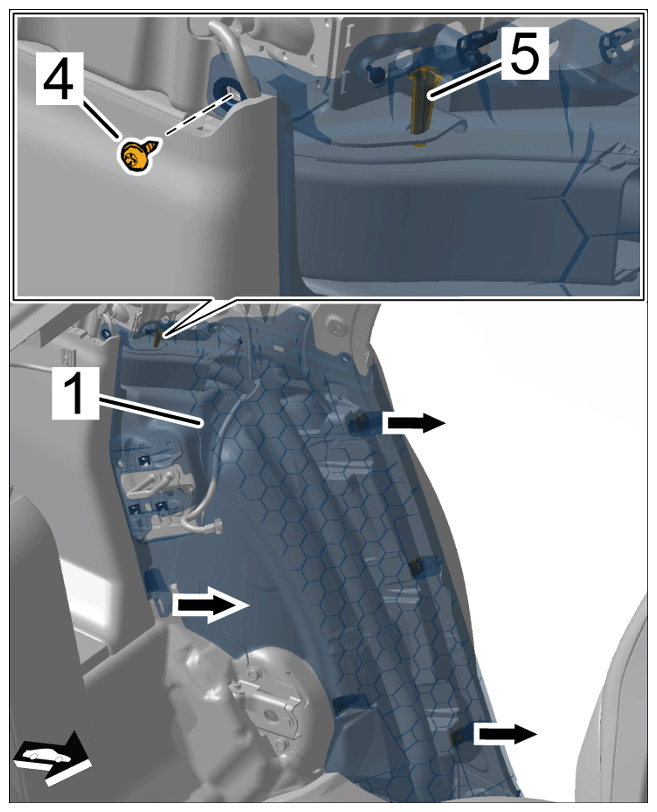

Screws for C-pillar trim panel (lower part)	Items 3 and 4	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for C-pillar trim panel (lower part)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for C-pillar trim panel (lower part)

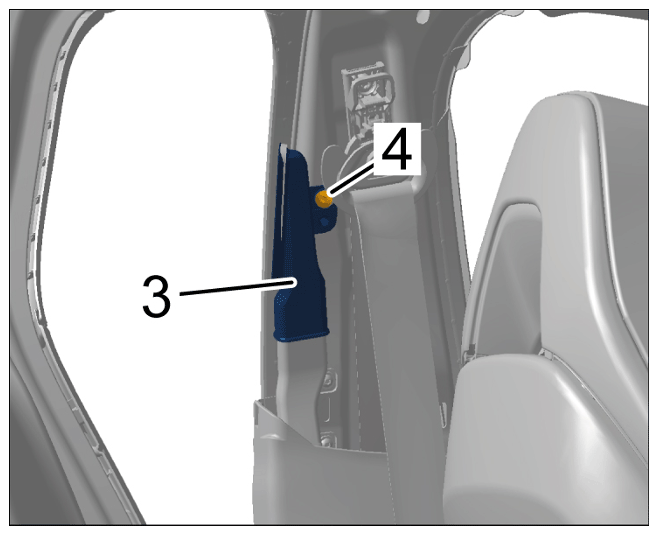

Screw securing ventilation duct to B-pillar	Item 4	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing ventilation duct to B-pillar

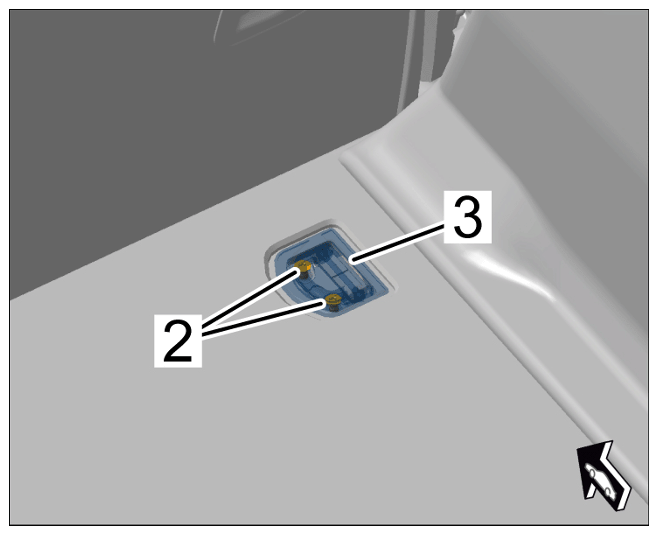

Screws for lashing point in luggage compartment	Item 2	Tightening torque	9.7 Nm (7.2 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lashing point in luggage compartment

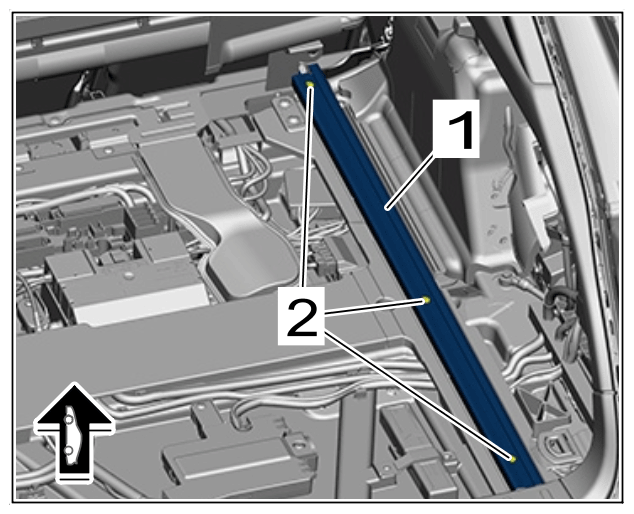

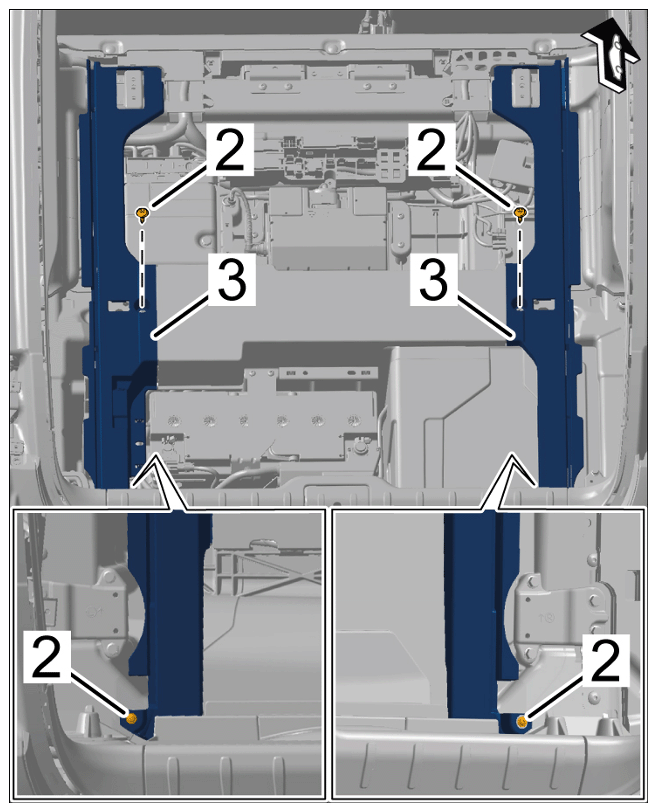

Retaining rail screws	Item 2	Tightening torque	12 Nm (8.9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting rail, right
Screws for luggage compartment trim panel on luggage compartment cover (lock support panel)	Items 2 and 3	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for luggage compartment trim panel on luggage compartment cover (lock support panel)
Left and right boot pan cover screws	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for luggage compartment cover
Screw for trim panel on window frame	Item 7	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw for trim panel on window frame

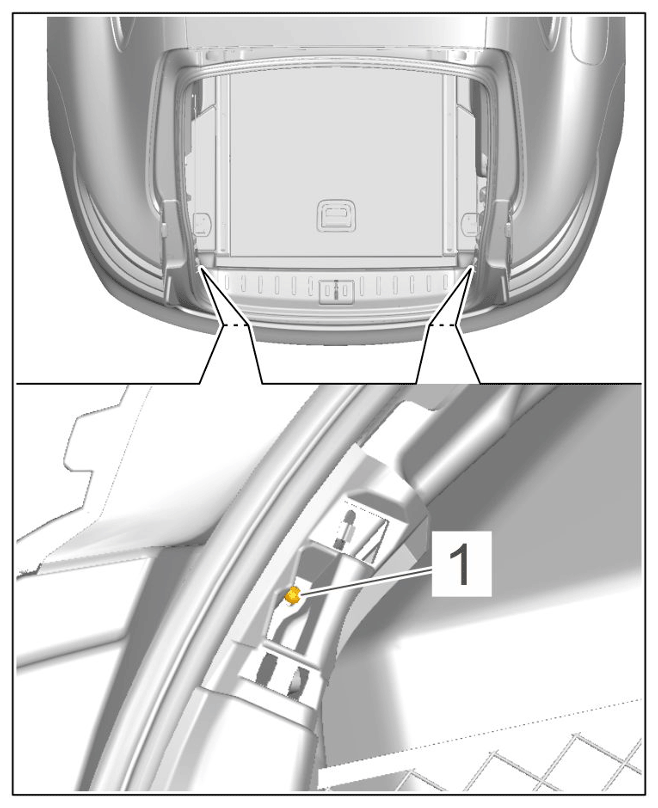

Screw for trim panel, bottom	Item 1	Tightening torque	1 Nm (0.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid trim panel, bottom

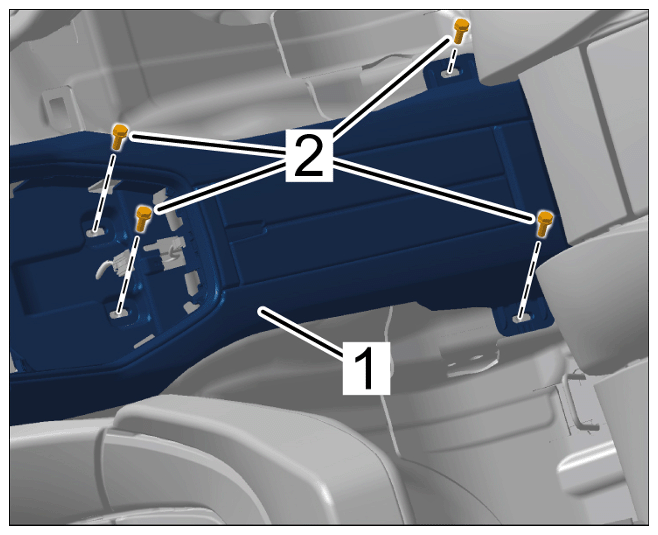

Screws securing rear centre console to floor	Item 2	Tightening torque	8 Nm (6 ftlb.)	+/- 0.5 Nm (0.4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing rear centre console to floor

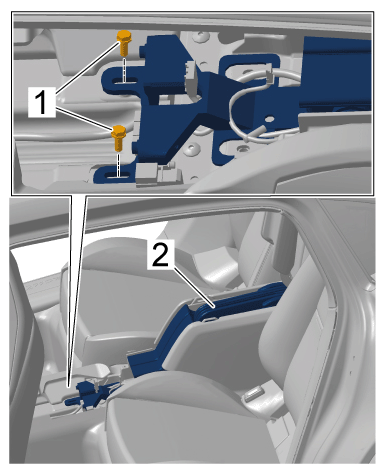

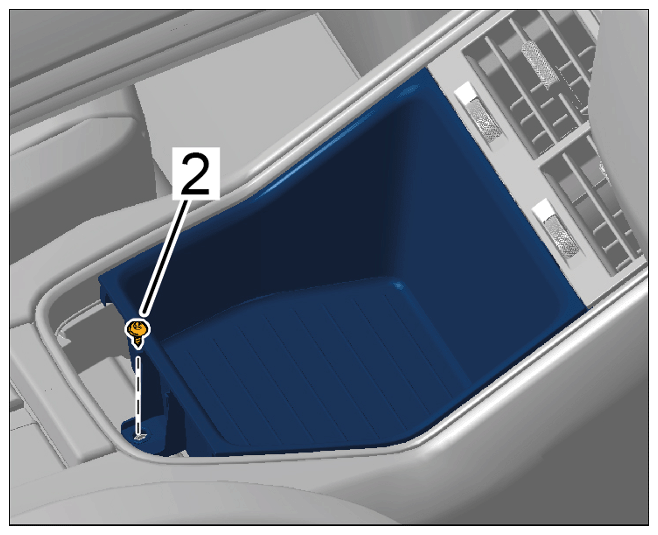

Screw securing rear storage compartment to centre console	Item 2	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing rear storage compartment to centre console
Screw securing folding table to floor	Item 1	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing folding table to floor

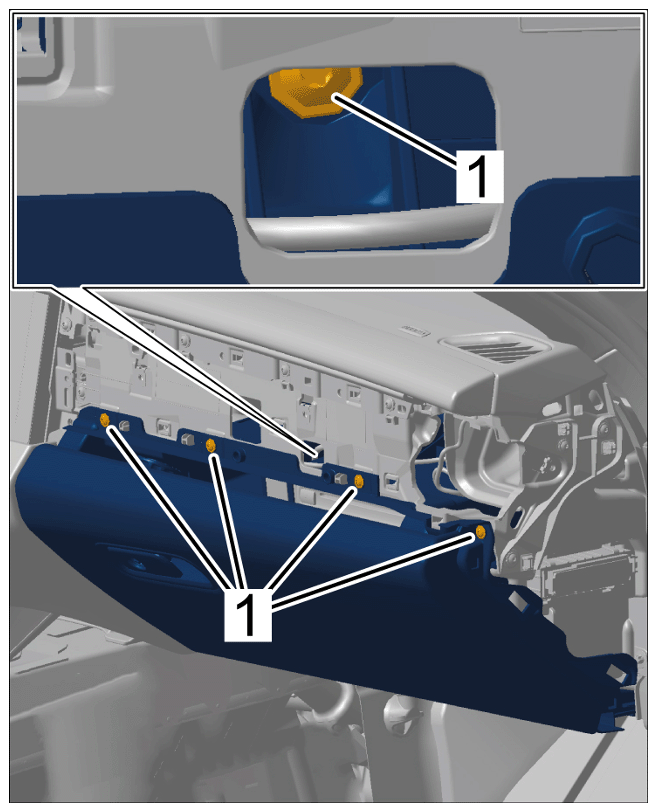

Screws securing glove compartment to upper part of dashboard	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing glove compartment

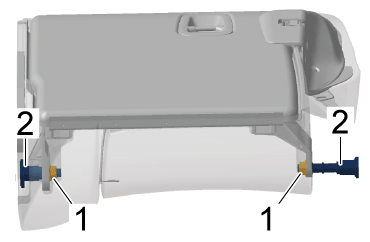

Screw securing glove compartment to dashboard bracket	Item 1	Tightening torque	1.5 Nm (1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing glove box
Screws securing glove compartment to mounting bracket	Item 2	Tightening torque	13 Nm (9.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing glove box
Screws on front roof trim panel		Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front screws

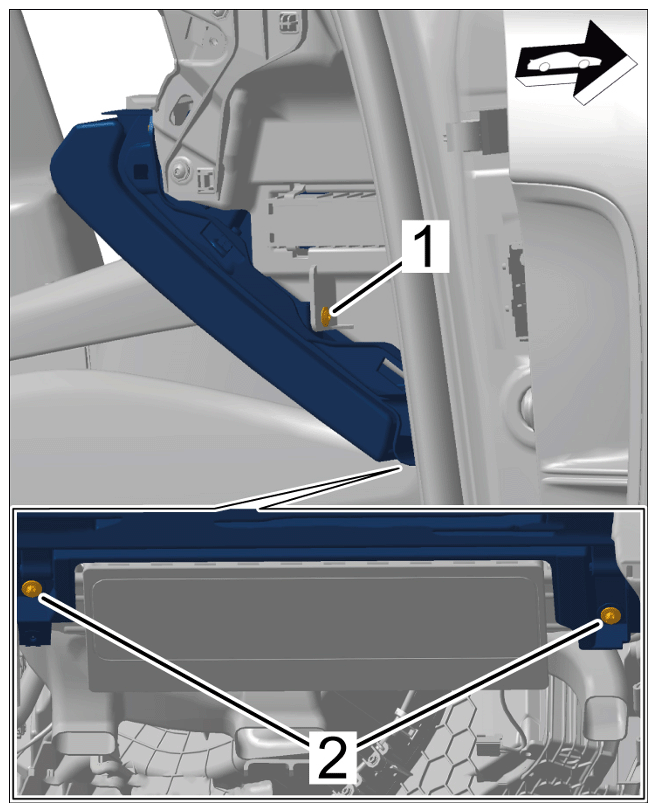

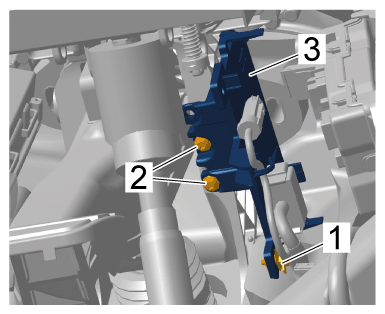

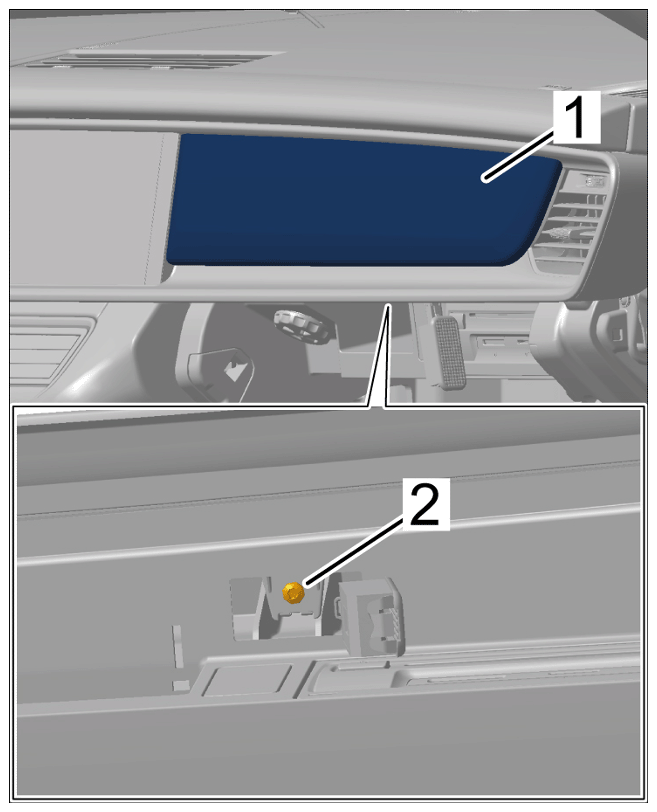

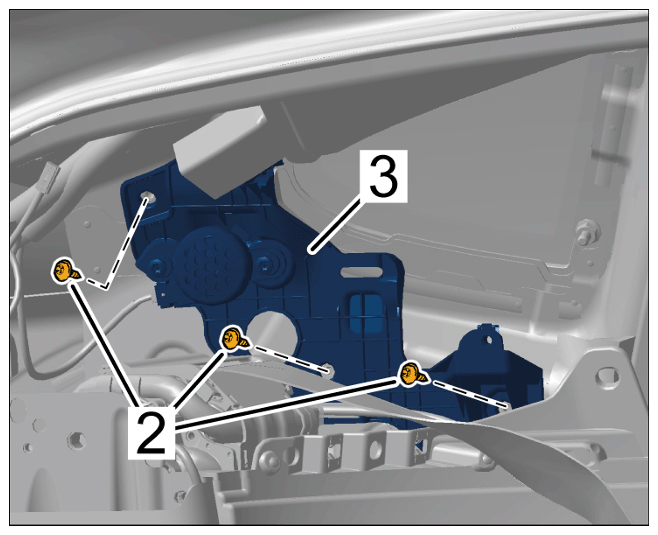

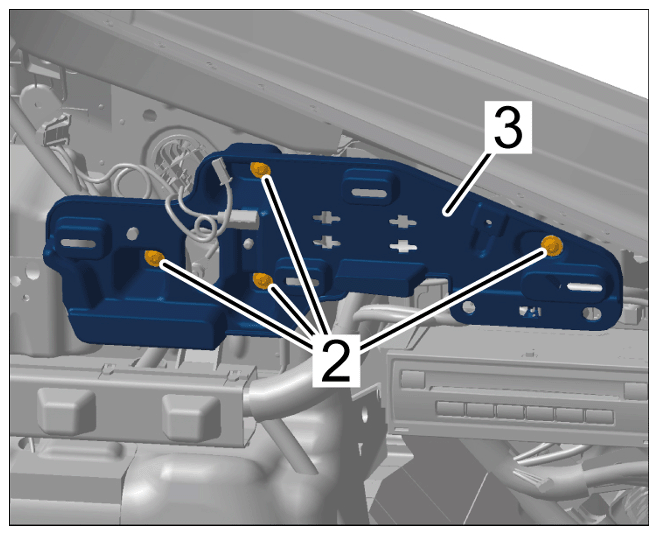

Screws on infrared camera control unit holder	Item 2	Tightening torque	4 Nm (3 ftlb.)

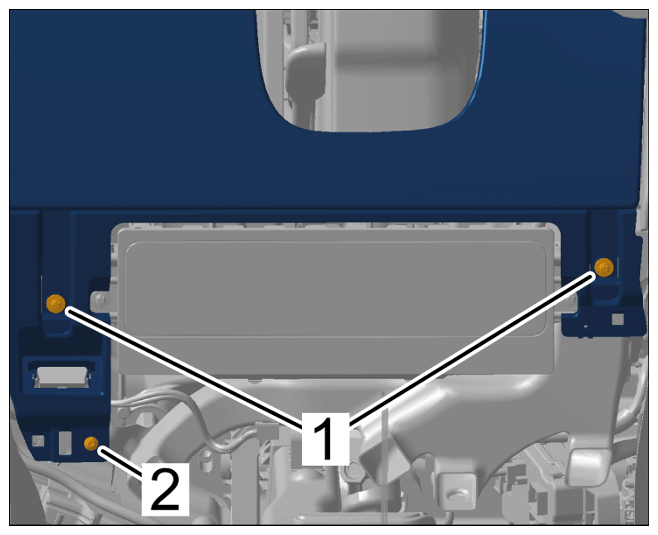

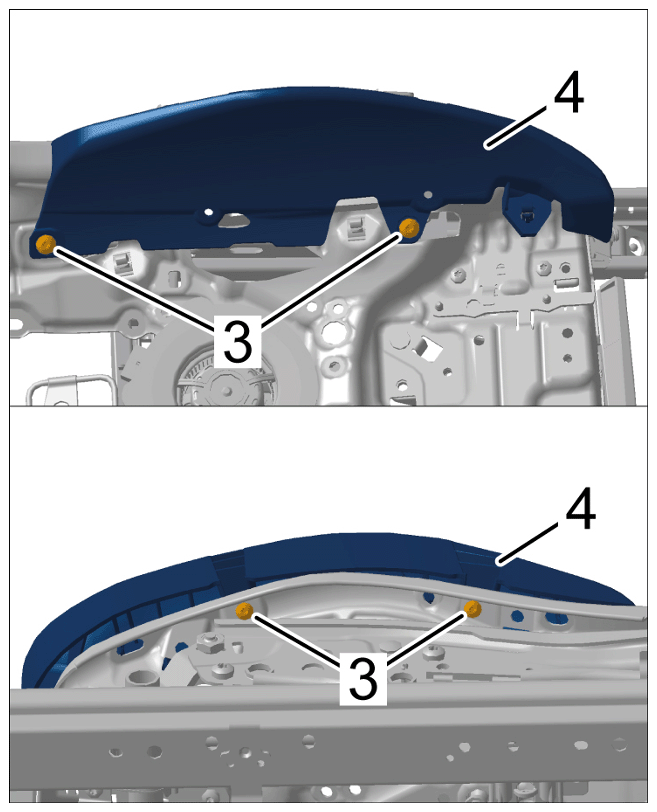

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on infrared camera control unit holder

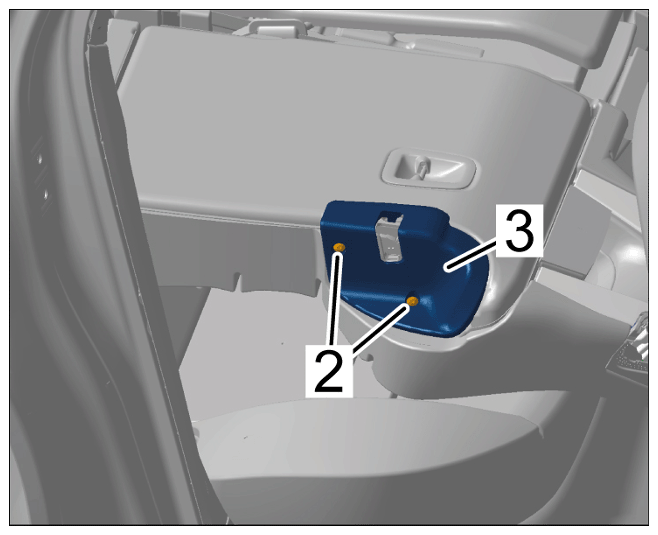

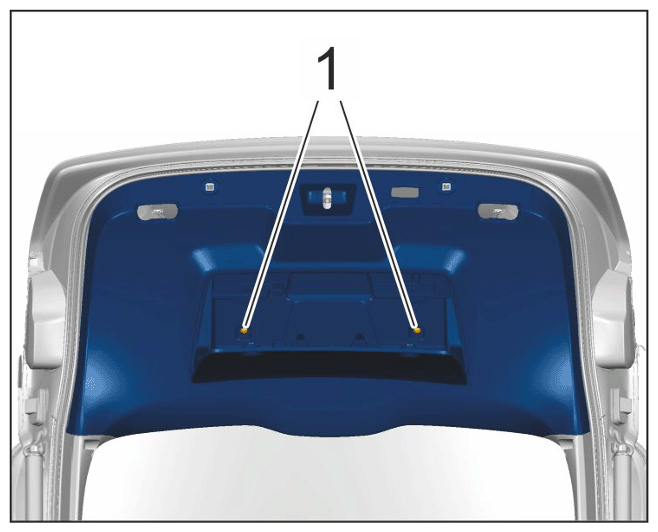

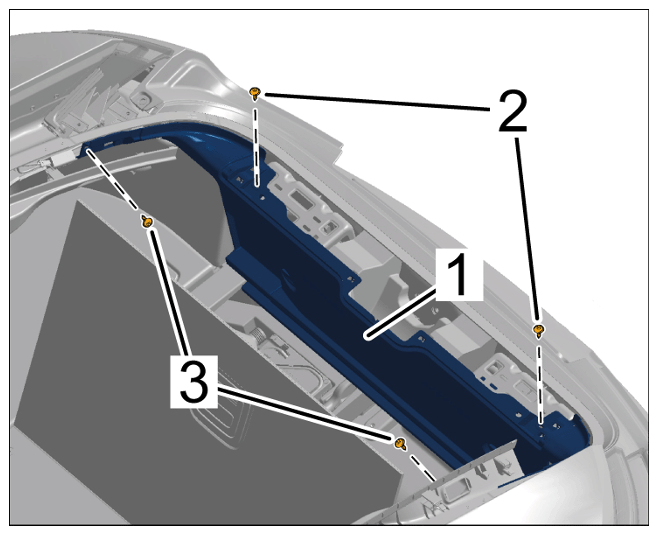

Screws for cover for rear lock carrier	Item 1	Tightening torque	1.5 Nm (1 ftlb.)

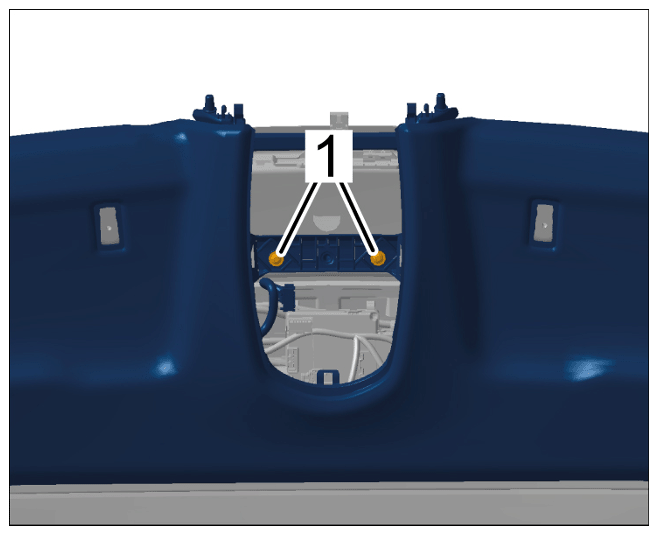

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws
