Removing Air Guide For Upper Part Of Centre Console

  1. Disconnect air guide for upper part of centre console -2-  from rear air distributor.
  2. Disconnect air guide for upper part of centre console -2-  from air guide for lower part of centre console and remove it by pulling it to the rear.

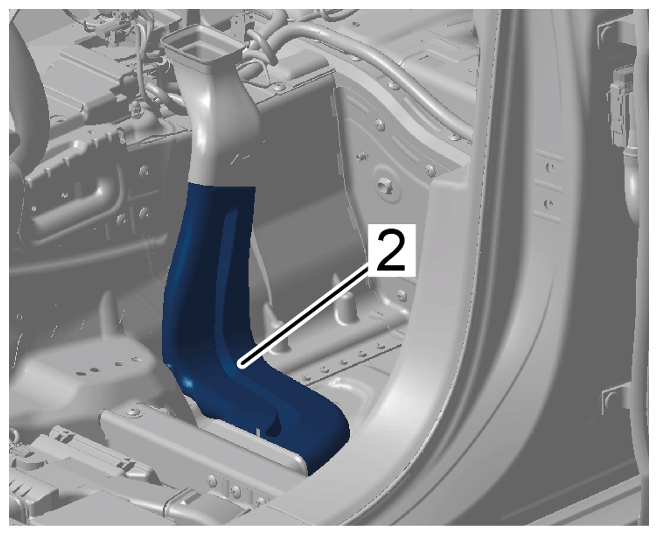

    G15875101Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air guide for upper part of centre console
