Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Nut securing heater valve holder to body Item 5 Tightening torque 10 Nm (7.5 ftlb.)

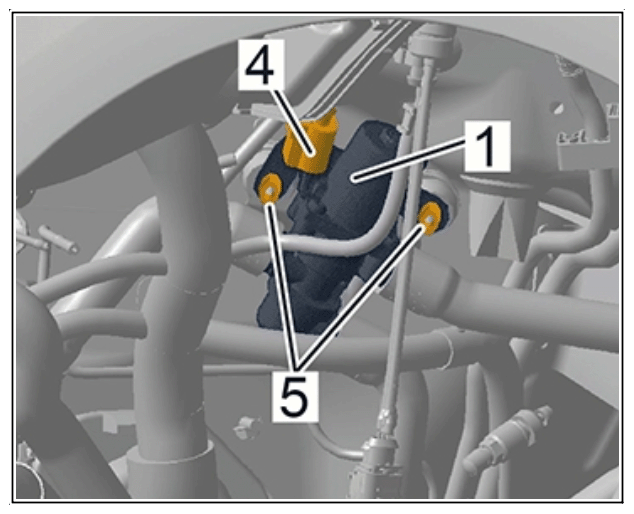

G15874808Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heater valve in wheel housing
