Removing Front FOOTWELL Outlet Vent On Passenger's Side

  1. Unscrew screw -1-  .

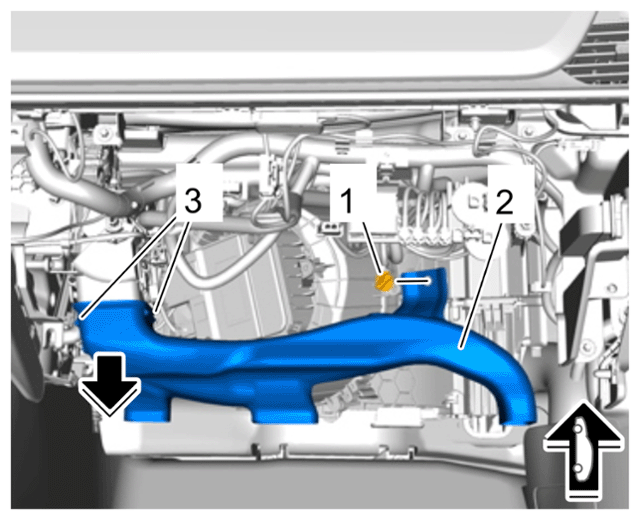

    G15874801Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing footwell outlet vent on driver's side

  2. Pull footwell outlet vent -2-  out of connection piece for air guide -3-  and remove it in a downward direction -arrow-  .
