Installing Front Footwell Outlet Vent On Passenger'S Side

  1. Insert footwell outlet vent -2-  into the connection piece for the air guide -3-  . The footwell outlet vent must engage securely.
    G15874804Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing footwell outlet vent on passenger's side

  2. Tighten screw -1-  to the appropriate tightening torque > Tightening torque 0.7 Nm (0.4 ftlb.)

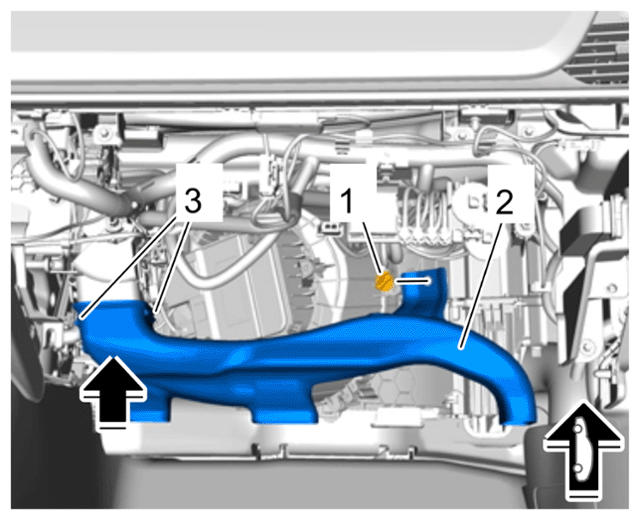

    G15874805Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing footwell outlet vent on passenger's side
