Installing Front Footwell Outlet Vent On Driver'S Side

  1. Insert footwell outlet vent -2-  into the connection piece for the air guide -3-  . The footwell outlet vent must engage securely.

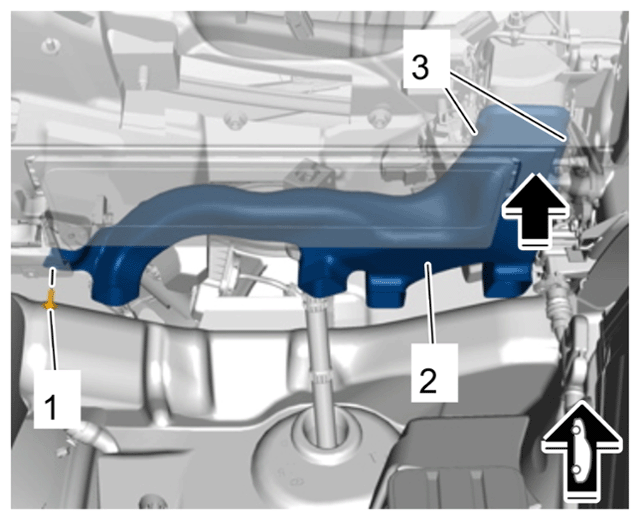

    G15874802Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing footwell outlet vent on driver's side

  2. Tighten screw -1-  to the appropriate tightening torque > Tightening torque 0.7 Nm (0.4 ftlb.)  .
    G15874803Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installing footwell outlet vent on driver's side
