Installation Position Of Footwell Outlet Vents

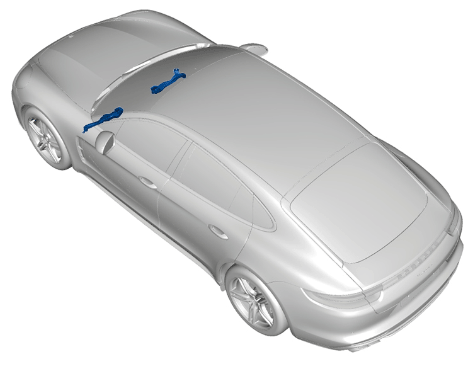

Fig 1: Identifying Footwell Outlet Vents Installatin Position

G15874799

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of footwell outlet vents
