Removing Additional Pump

NOTE: Danger of scalding
  • Coolant can be very hot.
  • Coolant may be pressurised.

    → Only remove the heater when the cooling system has cooled down.

    → By carefully opening the catch on the reservoir, make sure that the cooling system is depressurised.

NOTE: Danger of slipping due to emerging coolant
  • The emerging coolant will make the floor of the workshop slippery and may cause people to slip and fall over.

    → Collect emerging coolant in a suitable pan.

  1. Observe safety measures for working on vehicles with auxiliary heating.

    > 8X00IN SAFETY MEASURES WHEN WORKING ON VEHICLES WITH AUXILIARY HEATING

  2. Close off hose -1-  and hoses -2-  using > V.A.G 1275A - hose clamp pliers  .
  3. Open spring band clamps -3-  using > VAS 6889 - spring band clamp pliers  and disconnect hoses -1-  and -2-  .

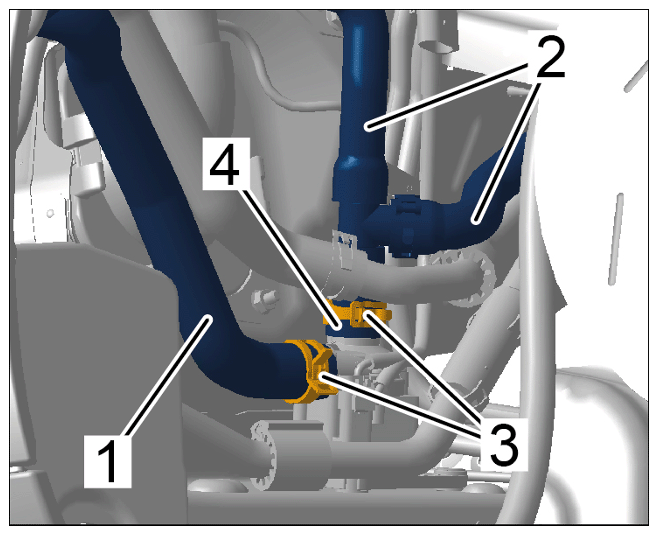

    G15874796Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling off hoses

  4. Release and unplug electric plug connection -5-  .

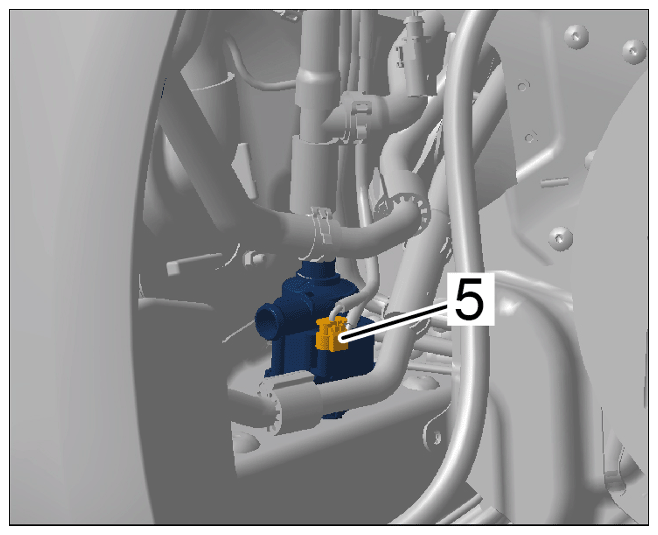

    G15874797Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  5. Remove additional pump -7-  .
    1. 5.1 Unscrew and remove screws -6-  .
    2. 5.2 Remove additional pump -7-  .

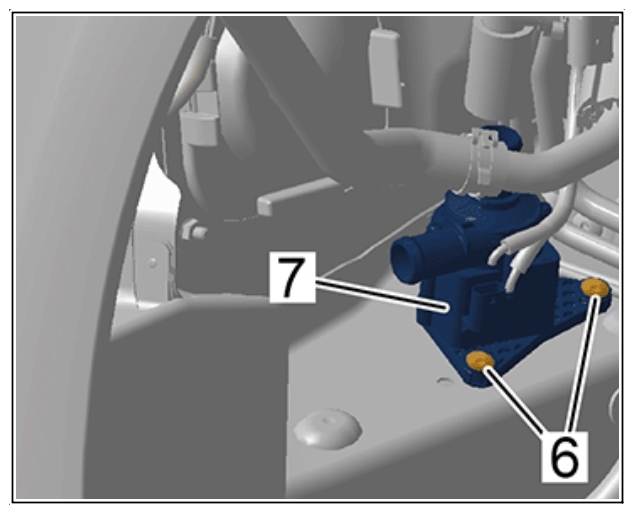

      G15874798Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Additional pump in wheel housing
