Removing Heat EXCHANGER Supply Hose

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

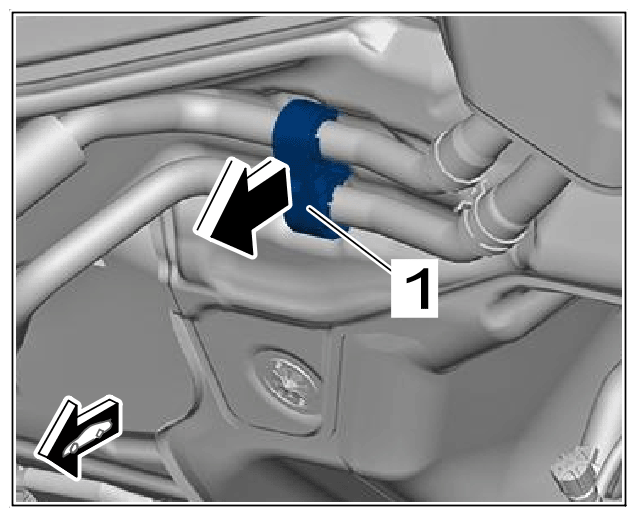

Pulling off hose holder

Information

After disconnecting the heat exchanger supply hose, close off the heat exchanger connection using a suitable stopper.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

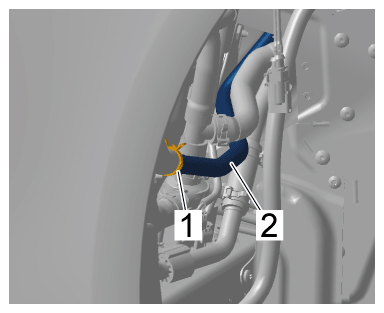

Disconnecting heat exchanger supply hose

1. 2.1 Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers  .
2. 2.2 Pull off heat exchanger supply hose -2-  .
3. 2.3 Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers  .
4. 2.4 Pull off heat exchanger supply hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

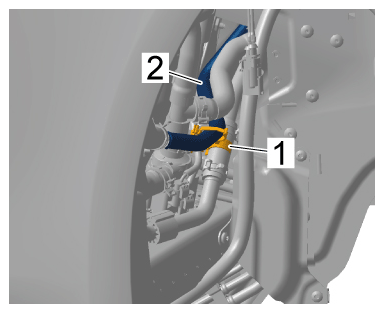

   Disconnecting heat exchanger supply hose

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

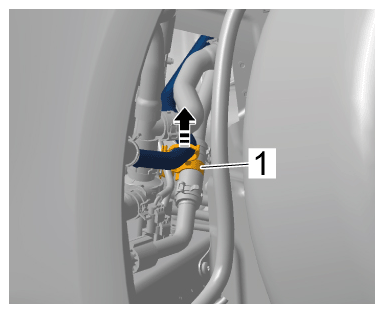

Fixing clip for heat exchanger hose

1. 3.1 Lever fixing clip -1-  off the firewall -Arrow-  .
2. 3.2 Use a new fixing clip for installation.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

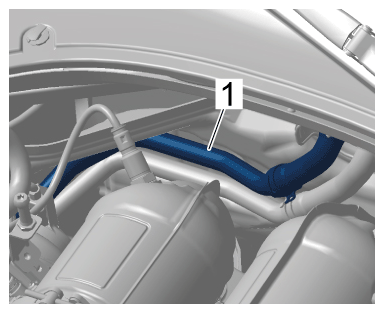

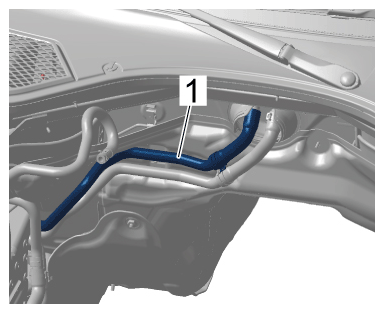

Removing heat exchanger supply hose

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling off hose holder

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip for heat exchanger hose

1. 2.1 Lever fixing clip -1-  off the firewall -Arrow-  .
2. 2.2 Use a new fixing clip for installation.

   Information

   After disconnecting the heat exchanger supply hose, close off the heat exchanger connection using a suitable stopper.

1. 3.1 Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers.
2. 3.2 Pull off the hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

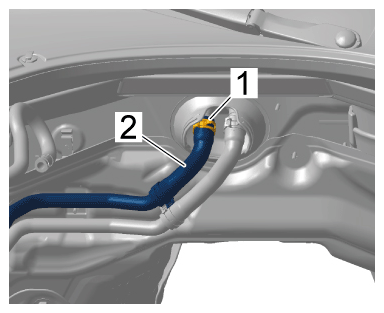

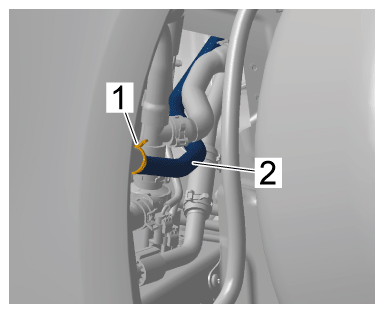

   Loosening spring band clamp

   Information

   After disconnecting the heat exchanger supply hose, close off the heat exchanger connection using a suitable stopper.

1. 4.1 Loosen spring band clamp -1-  using > VAS 6890 - spring band clamps pliers  .
2. 4.2 Pull off the hose -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

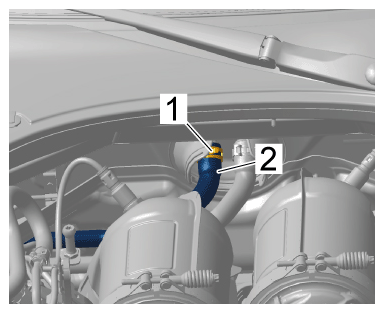

   Loosening spring band clamp

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guiding out heat exchanger supply hose
