Installation Position Of Heat Exchanger Supply Hose

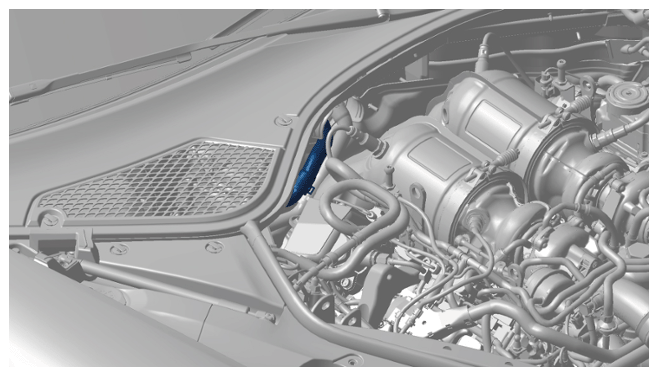

Fig 1: Identifying Heat Exchange Supply Hose Installation Position
G15874759Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of heat exchanger supply hose (shown on the Panamera 4S)

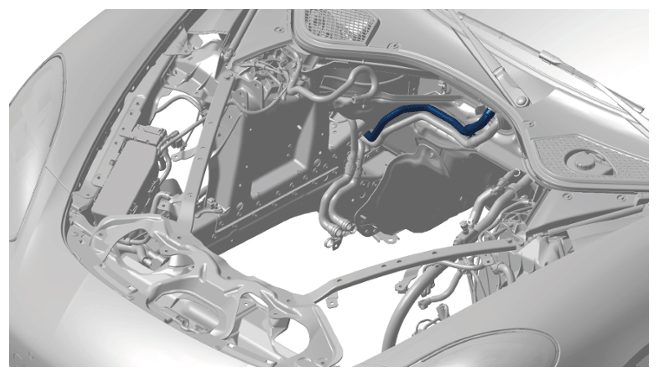

Fig 1: Identifying Heat Exchanger Supply Hose Installation Position
G15874768Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position of heat exchanger supply hose
