Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...	Toleranc...
Screw securing cover to load-through provision lock	Item 2	Tightening torque	1.5 Nm (1 ftlb.)

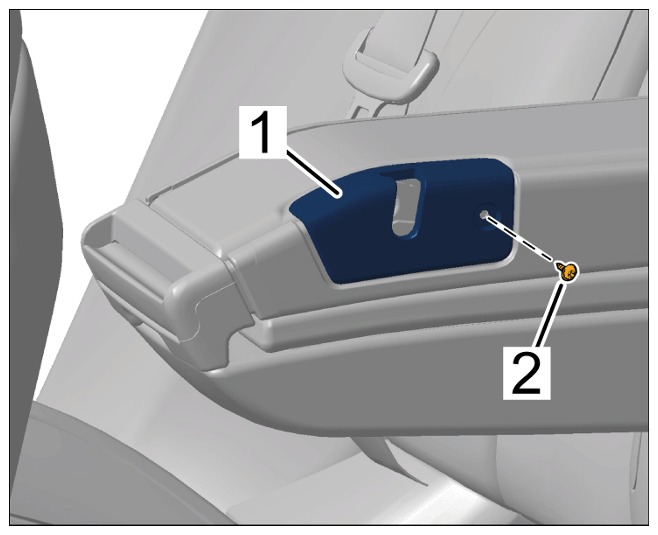

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing cover to load-through provision lock
Screws securing load-through provision lock to load-through provision	Item 3	Tightening torque	20 Nm (15 ftlb.)	+/- 2 Nm (1.5 ftlb.)

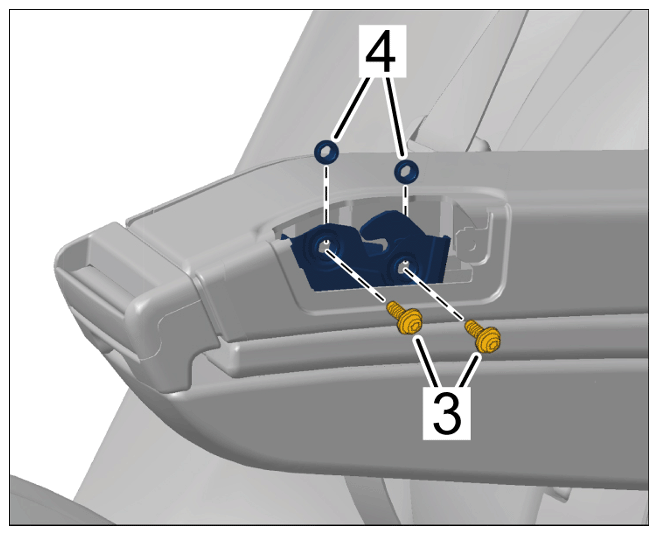

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws securing load-through provision lock to load-through provision
