Removing Lock For Load-Through Provision

WARNING: This page is about a different variant/trim than selected.
  1. Fold over load-through provision.
  2. Unscrew and remove screw -2-  .

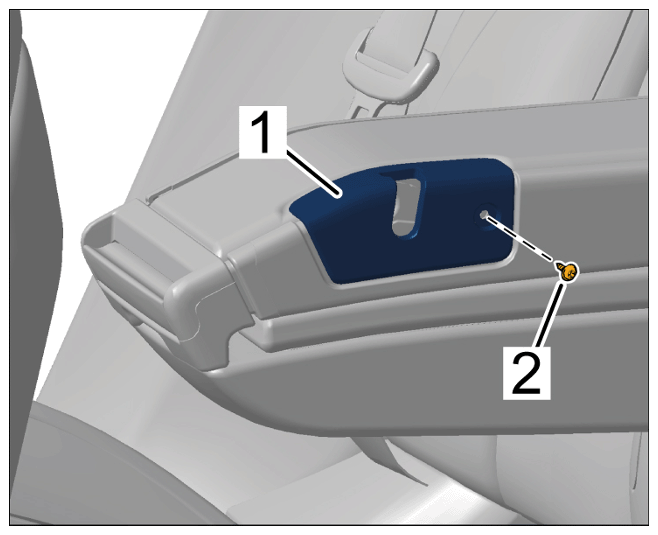

    G15874747Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screw

  3. Unclip cover -1-  .
    G15874748Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    Information

    Make sure that the two spacer sleeves do not fall in between the backrest frame and cushion during removal and installation.

  4. Unscrew and remove screws -3-  .
    G15874749Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Screws

  5. Remove spacer sleeves -4-  .

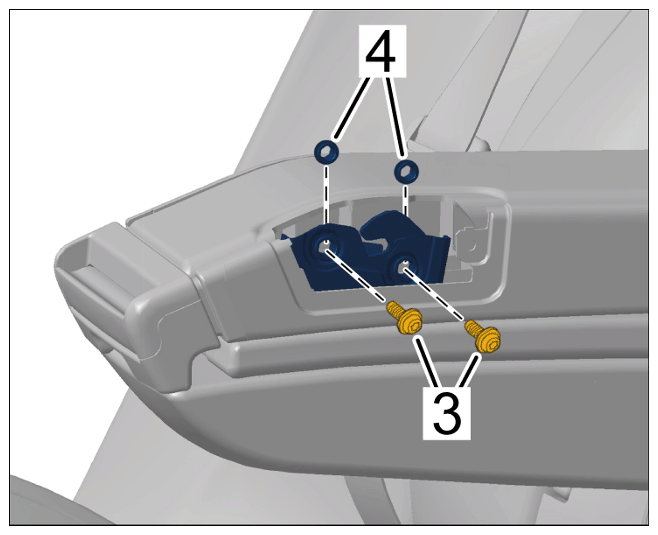

    G15874750Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spacer sleeves

  6. Disengage operating cable -5-  .
    G15874751Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Operating cable

  7. Remove lock for load-through provision -6-  .

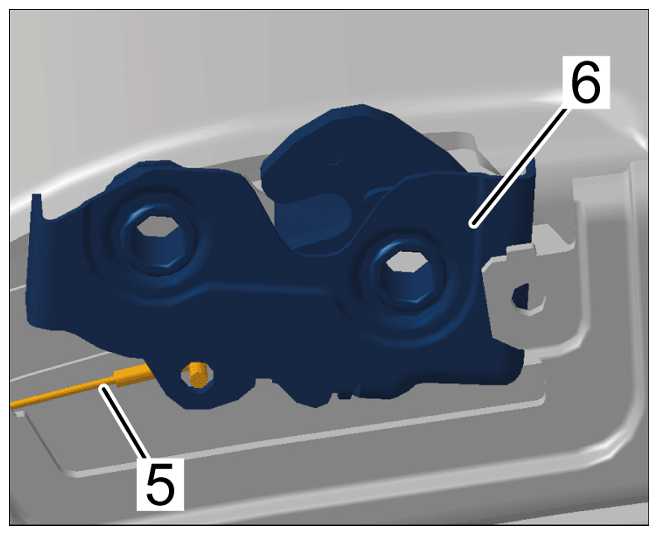

    G15874752Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Load-through provision lock
