Removing Load-Through Provision

WARNING: This page is about a different variant/trim than selected.

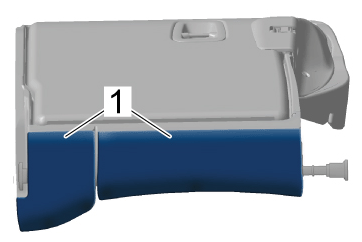

  1. Detach cover for left rear backrest -1-  in the lower area.
    G15874755Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging cover

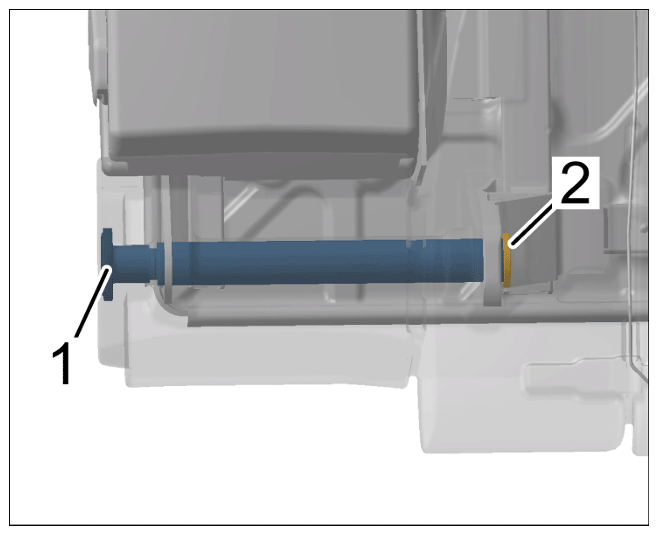

  2. Unscrew bearing pins -1-  .
    G15874756Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing bearing pin

    1. 2.1 Carefully press cover and padding for left rear backrest down until the tool for countering at the bearing pin -2-  can be fitted.
    2. 2.2 Counter at bearing pin -2-  and unscrew and remove bearing pin -1-  .

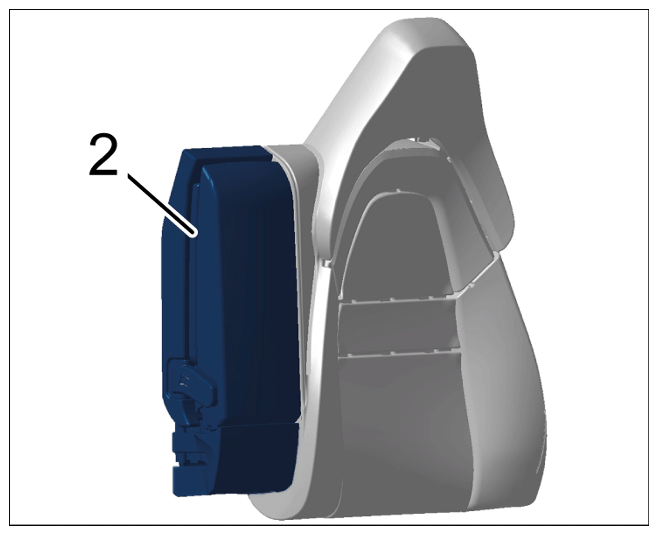

  3. Release and remove load-through provision -2-  .
    G15874757Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing load-through provision
