Removing Armrest With Cover

Information

The armrest must be positioned several times during removal and installation.

1. Move front seats all the way forward.
2. Fold over the right backrest.

   Information

   Covers must be removed together with the armrest.

   Make sure that the covers do not tilt.

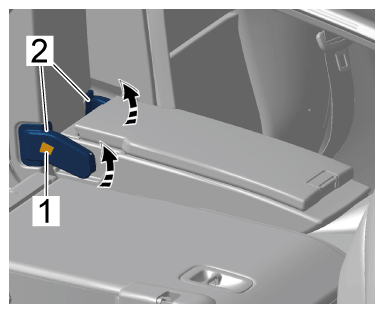

3. Unclip locking lug -1-  using a plastic wedge and turn covers -2-  to the rear -arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unclipping covers

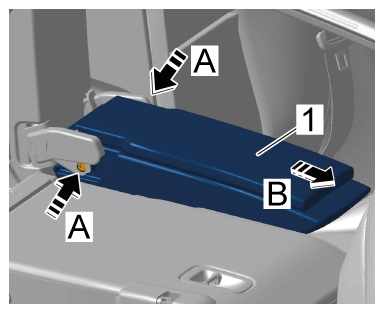

4. Press in bolts on the armrest -1-  at the left and right at the same time using a suitable tool -arrows A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Releasing armrest

5. Open armrest -1-  completely and pull it out -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing armrest
