Installing Armrest With Cover
WARNING: This page is about a different variant/trim than selected.

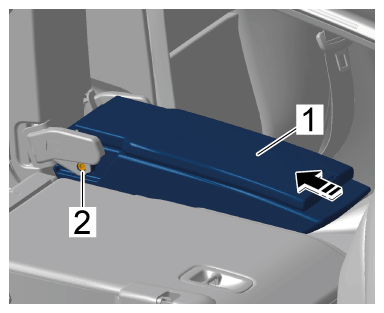

- Push armrest -1-
into the guides -arrow-
until the bolts -2-
at the left and right engage securely.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Pushing in armrest

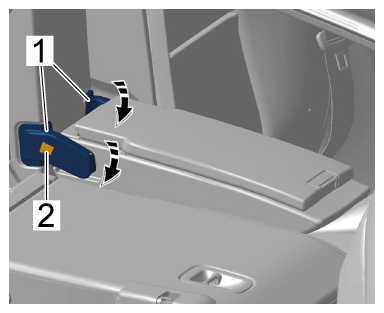

- Turn covers -1-
at the left and right forward -arrows-
and clip in locking lug -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Clipping in covers
- Fold up armrest.
