Removing Cover For Side Cushion

WARNING: This page is about a different variant/trim than selected.

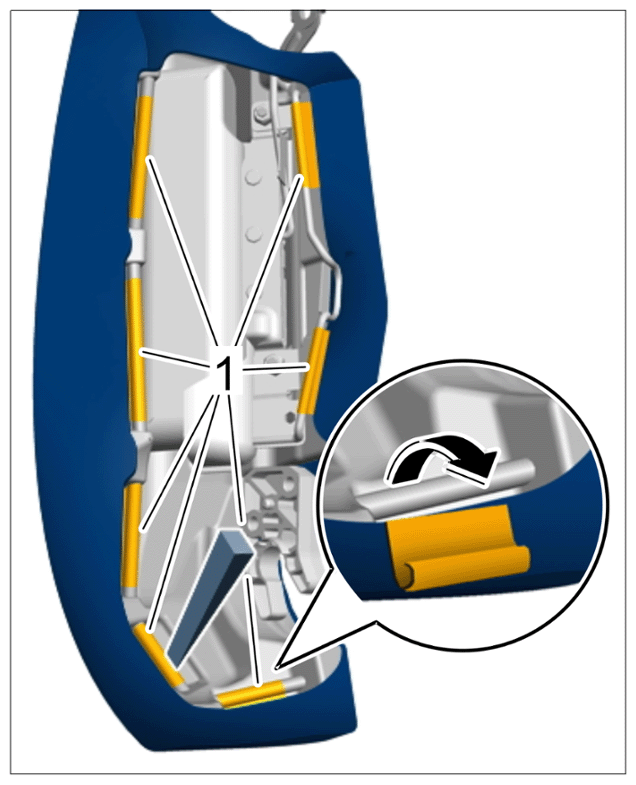

  1. Unclip cover on side cushion from clips -1-  all the way around -Arrow-  and fold it over.
    G15874722Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fixing clips

  2. Guide out airbag for seat airbag.
  3. Remove cover for side cushion.
