Removing Cover For Rear Seat

WARNING: This page is about a different variant/trim than selected.

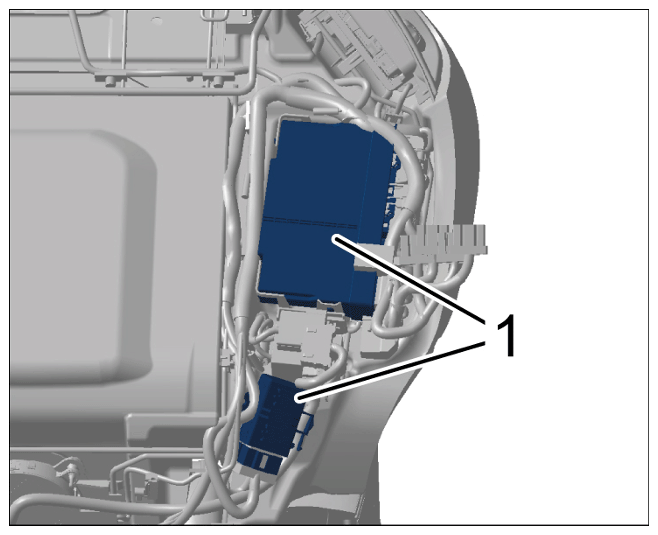

Loosen control units -1- from holders and set them aside with lines connected.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Loosening control units

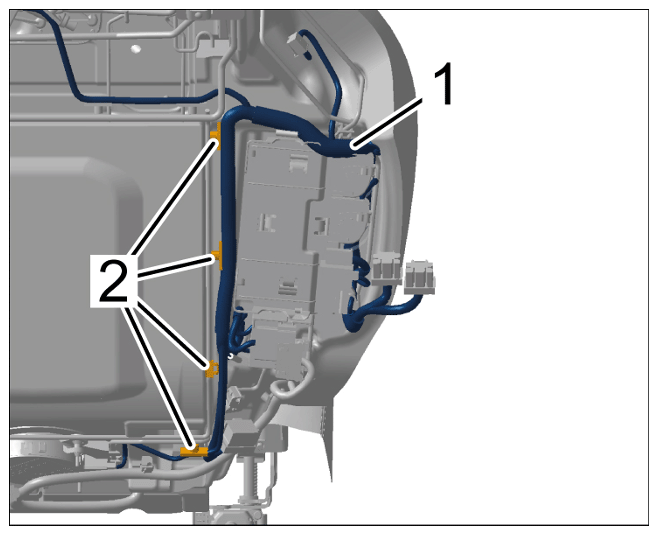

Unclip electric wire harness -1- with holder -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping electric wire harness

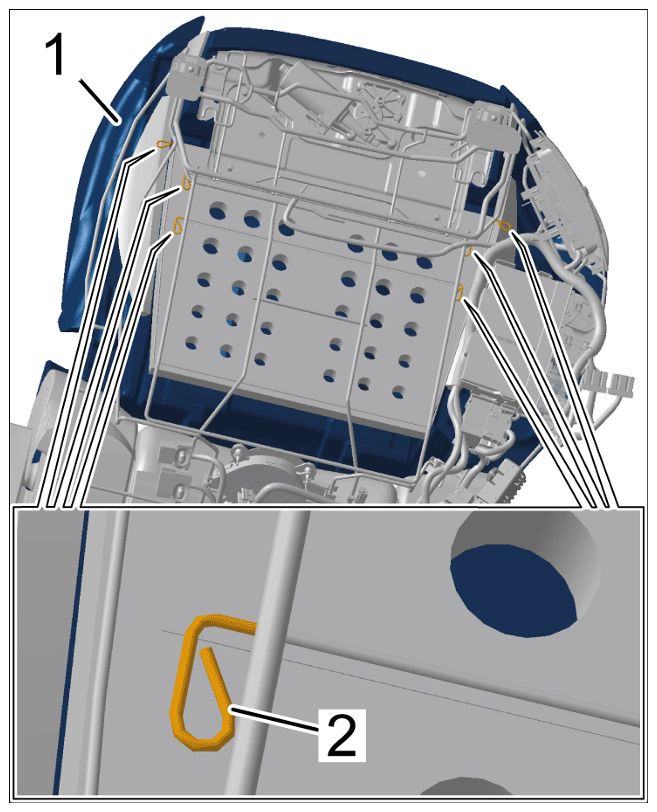

Cut tie-wrap on main wire harness.
Cut cushion rings -2- .
Detach cover for rear seat -1- and fold it up.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cutting cushion rings

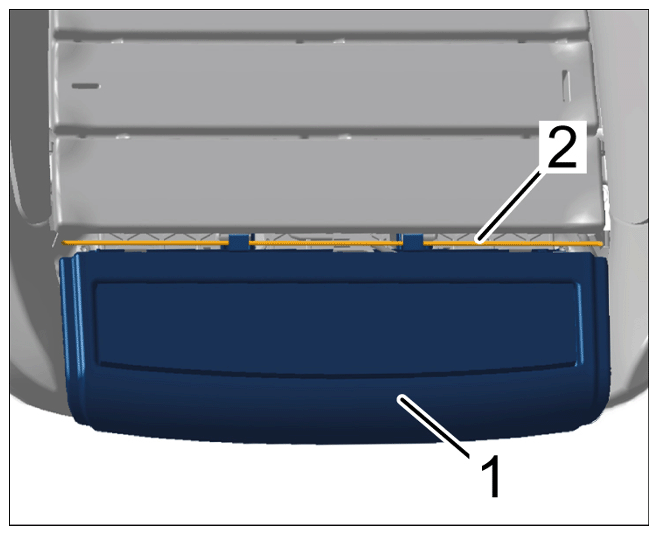

Disengage support rod -2- from seat cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging seat cover

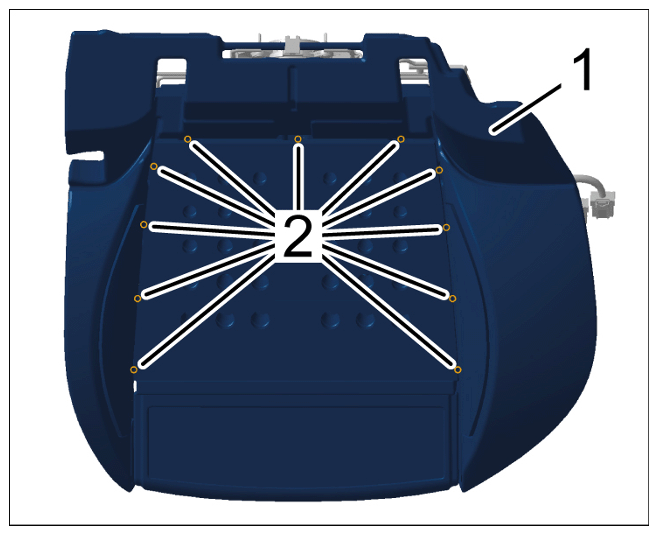

Disengage cushion rings -2- .
Remove rear seat cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging cushion rings
