Removing Padding For Rear Seat-Surface Extension

WARNING: This page is about a different variant/trim than selected.

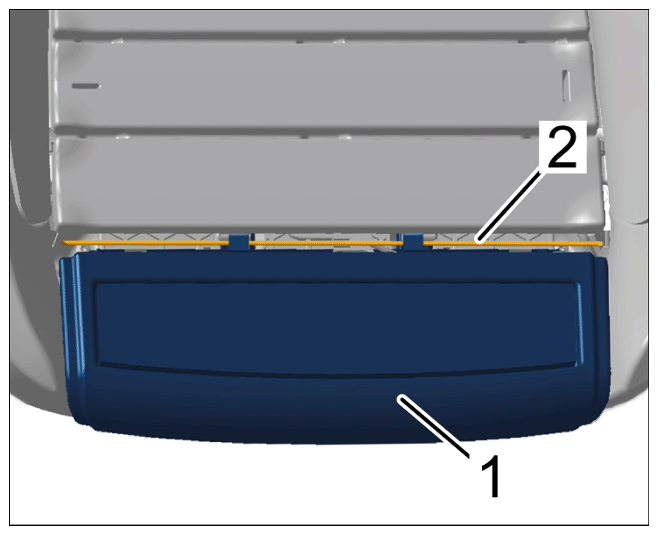

  1. Detach seat cover -1-  on support rod -2-  for padding for rear seat-surface extension and fold it over.
    G15874698Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging seat cover

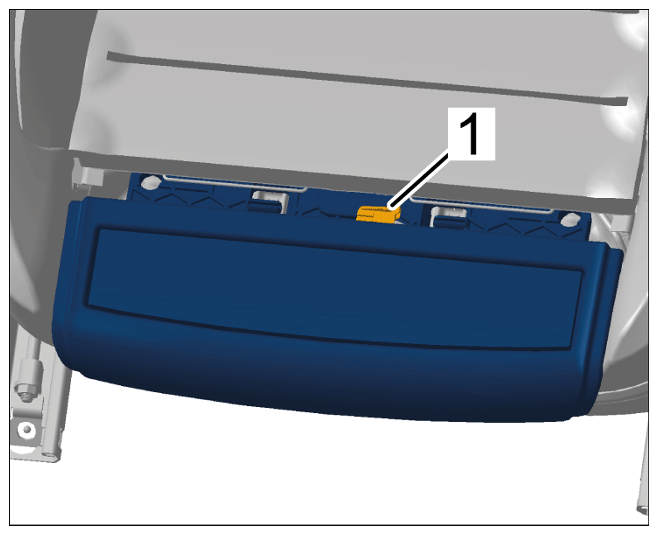

  2. Only for vehicles with seat heating (I-no. 4A4):

    Disconnect electric plug connection -1-  .

    G15874699Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disconnecting electric plug connection

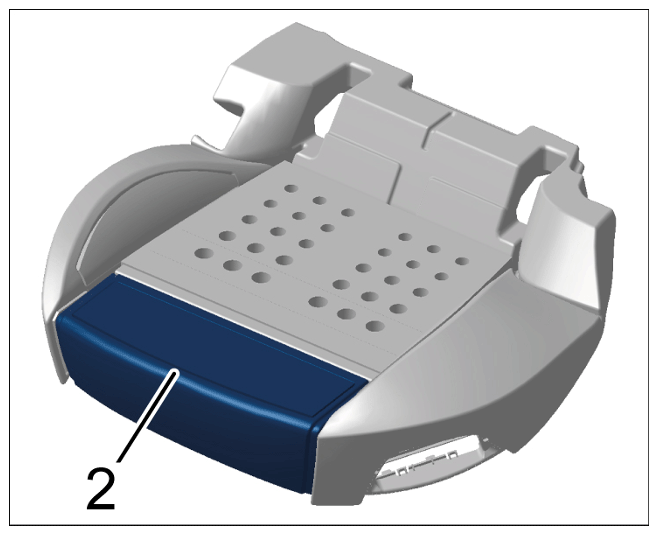

  3. Detach padding for rear seat-surface extension -2-  at the front from the seat-surface extension and remove it in a downward direction.
    G15874700Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Detaching padding for rear seat-surface extension
