Removing Padding For Rear Seat Surface

WARNING: This page is about a different variant/trim than selected.
  1. Only for vehicles with air-conditioned/massage seat incl. seat ventilation (I-no.: 4D1, 4D2, 4D9)

    Release and disconnect electric plug connection -2-  on motor for suction fan -1-  .

    G15874702Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and pulling off electric plug connection

  2. Only for vehicles with air-conditioned/massage seat incl. seat ventilation (I-no.: 4D1, 4D2, 4D9)

    Disengage clips -3-  on the seat frame.

    G15874703Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging clips

  3. Only for vehicles with air-conditioned/massage seat incl. seat ventilation (I-no.: 4D1, 4D2, 4D9)

    Guide out motor for suction fan -1-  .

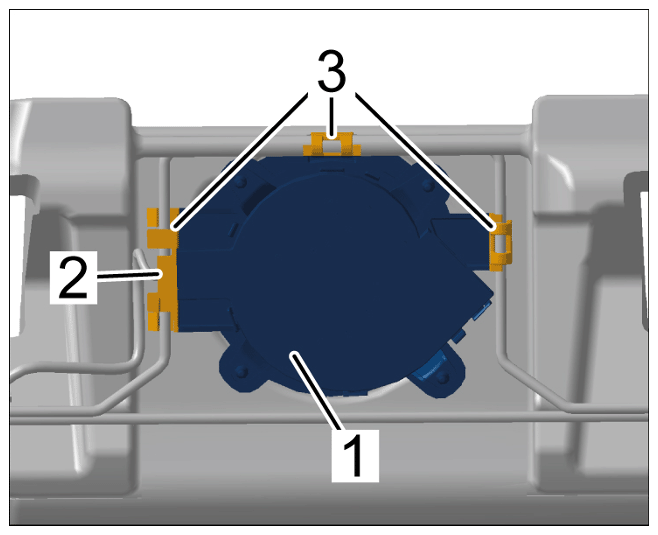

    G15874704Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening motor for suction fan

  4. Disconnecting electric wire harness
    1. 4.1 Unclip electric wire harness -4-  with clips -5-  .
    2. 4.2 Disconnect electric plug connections -6 and 7-  .
    3. 4.3 Guide out electric wire harness -4-  .

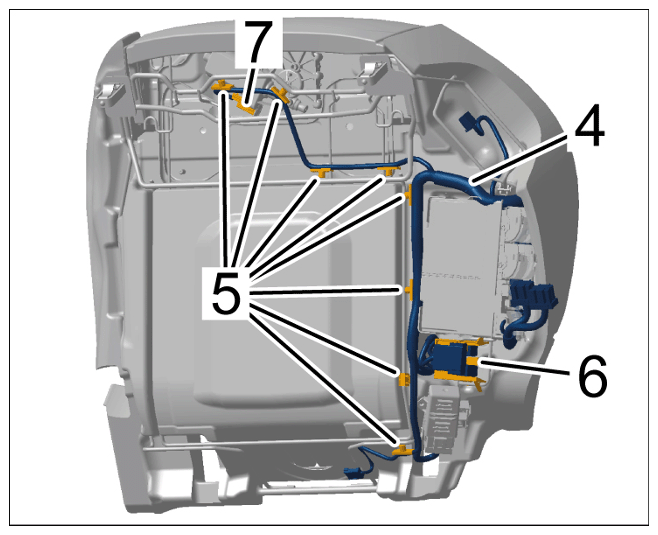

      G15874705Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Disconnecting electric wire harness

  5. Remove clamps -8-  .

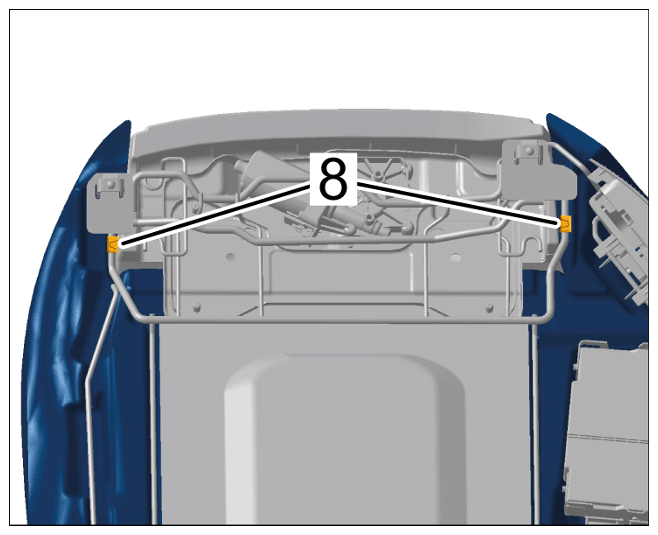

    G15874706Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing clamps

  6. Disengage rear padding -9-  from seat frame and remove it.

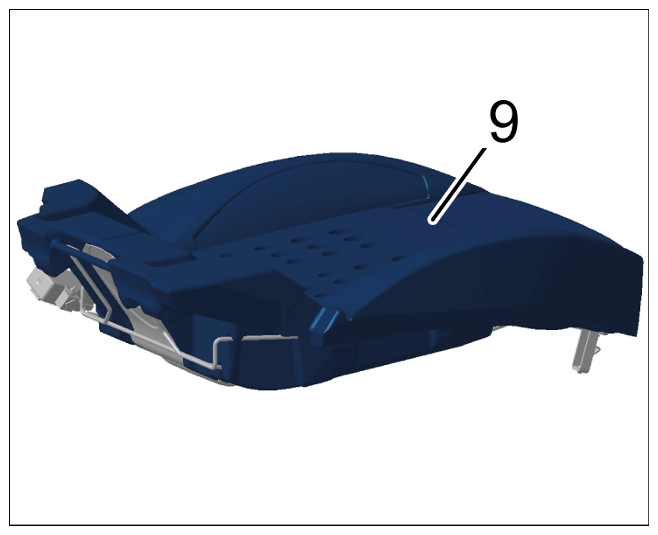

    G15874707Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Disengaging rear padding
