Removing Rear Seat-Surface Extension

WARNING: This page is about a different variant/trim than selected.

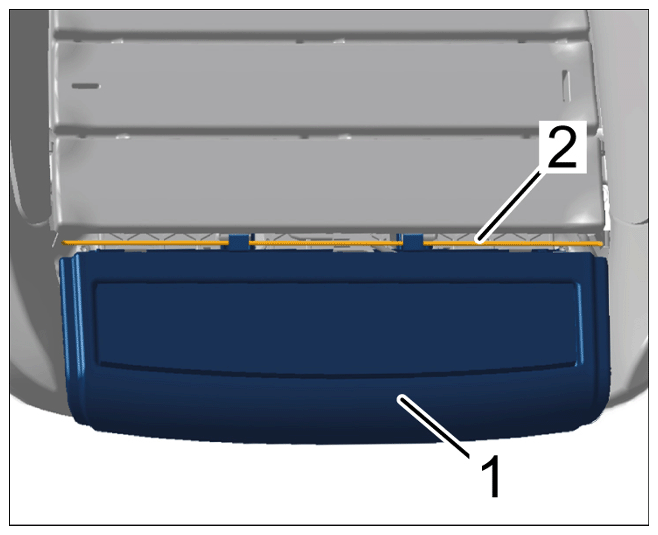

Disengage seat cover -1- on rear seat-surface extension.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging seat cover
Disengage support rod -2- from seat cover -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging support rod

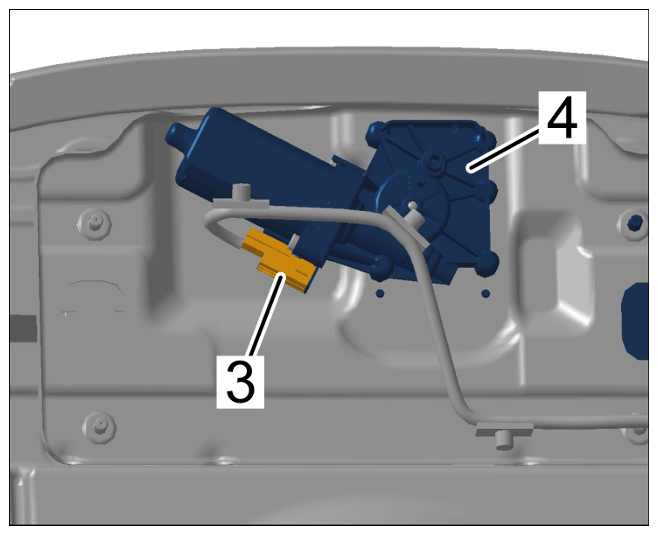

Release and disconnect electric plug connection -3- on the servo motor -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Releasing and pulling off electric plug connection

Only for vehicles with seat heating (I-no. 4A4)

Disconnect electric wire harness for seat heating.

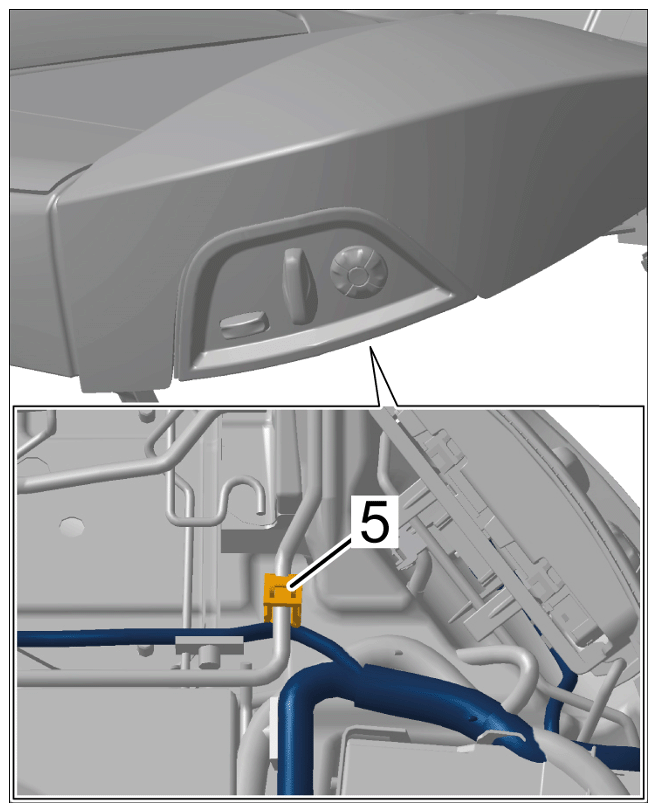

4.1 Unclip line bracket -5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unclipping line bracket

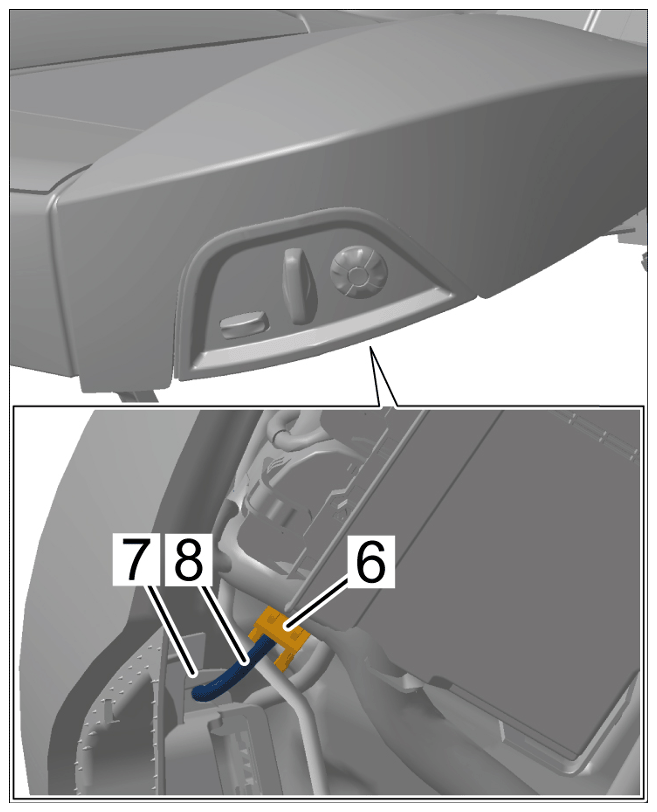

4.2 Loosen electric plug connection -6- from holder -7- , guide it out and disconnect it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection

4.3 Guide out electric wire harness -8- for seat heating for seat-surface extension.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disconnecting electric plug connection

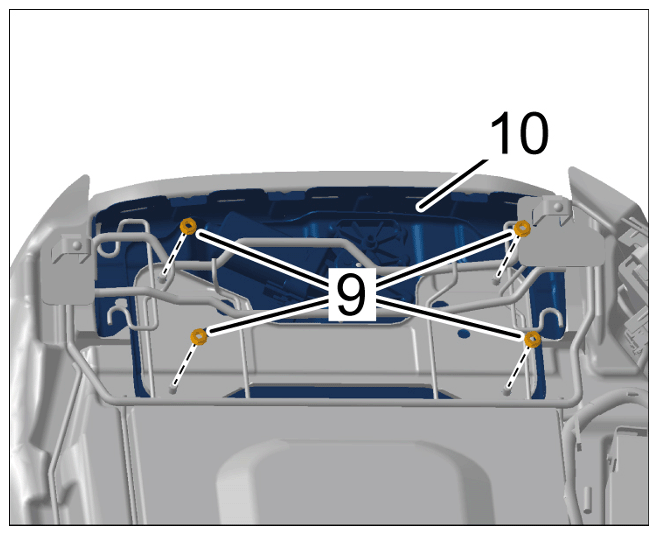

Unscrew nuts -9- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing nuts
Lift padding -10- up slightly and remove it together with rear seat-surface extension.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing rear seat-surface extension
