Replacing Heating Element For Rear Backrest

WARNING: This page is about a different variant/trim than selected.

Affix heating element on side panel.

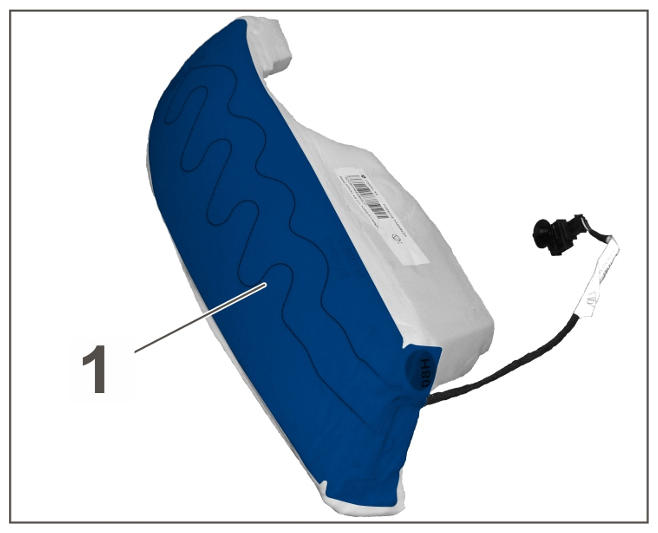

1.1 Position heating element -1- on side panel.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on side panel

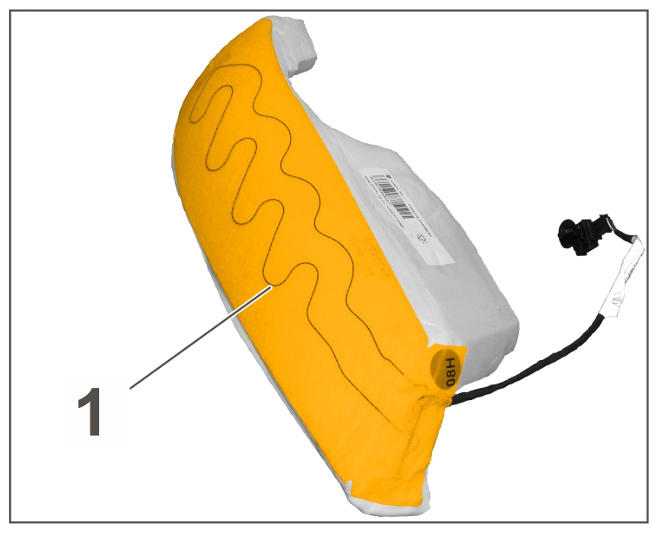

1.2 Pull protective film in area -1- off the bonding area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on side panel

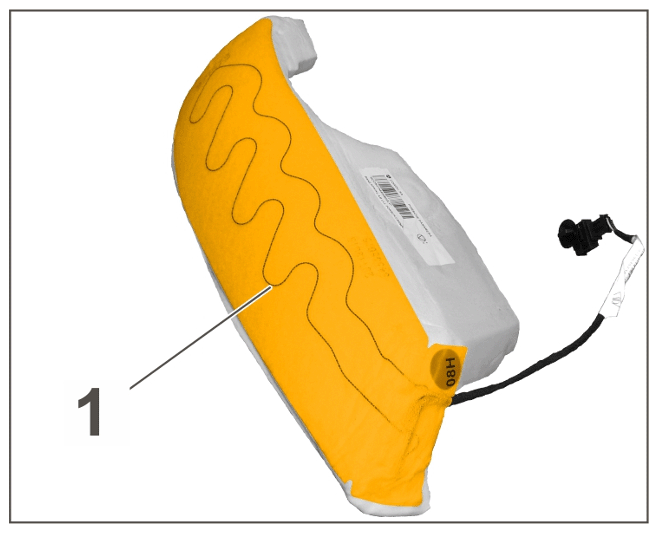

1.3 Press heating element on firmly in area -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heating element on side panel

Affix heating element on backrest.

2.1 Position heating element -1- on backrest.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element

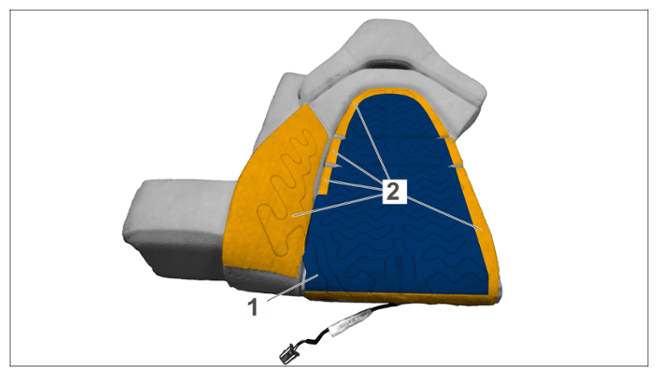

2.2 Pull protective film in area -2- off the bonding areas.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element

2.3 Press heating element -1- on firmly in area -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element

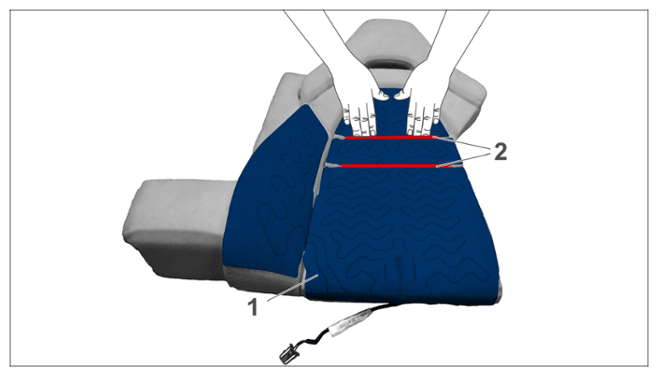

2.4 Press heating element -1- in area -2- into the grooves.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest heating element
